Product Number: 70058
Variations

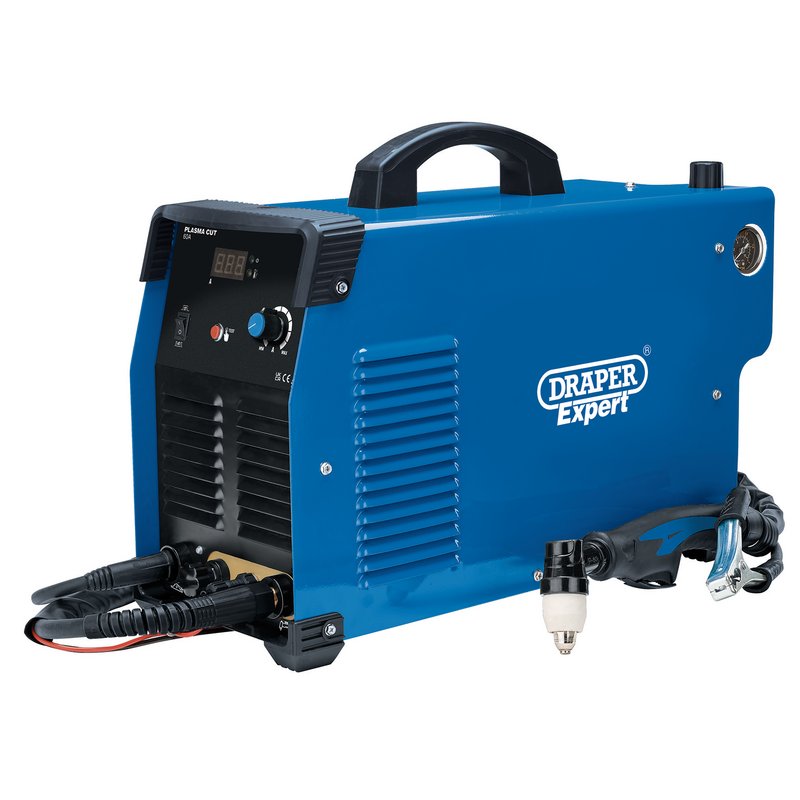

Clean cuts through steel, aluminium, and from one machine. A pilot arc maintains cutting continuity on painted, coated, and rusted surfaces without a clean contact point.High-frequency ignition provides a stable, contactless arc start. Duty cycle: 60% @60A 100% @40A.
IGBT Inverter technology. Integrated gas regulator. Additional features include high frequency pilot arc start, 15mm cut thickness, thermal overload protection.
Supplied with:
Additional Information:
This high frequency ignition plasma cutter has advanced IGBT technology with digital meter. It has a pilot arc function that ensures stability and a fast, strong and smooth cut. This efficient machine is suitable for cutting through stainless steel, aluminium and other metals up to a thickness of 15mm. Fitted with thermal overload protection to ensure maximum durability. The machine is robust, lightweight and portable, fitted with a carry handle.
Product Key Feature:About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Amperage range | 20-60A |
|---|---|
| Power supply | 230V |
| Plug Fitted | NO (32A PLUG REQUIRED) |
| Max. cutting thickness | 15mm |
| PSI | 72.5psi |
| Duty cycle | 60% @60A 100% @40A |
| Dimensions | 530 x 210 x 390mm |
| Weight (net) | 17.2kg |
| IGBT Inverter Technology | YES |
| Integrated Gas Regulator | YES |
| High Frequency Pilot arc Start | YES |
| Thermal overload protection | YES |
| Digital Display | YES |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
02467 | Draper 2467 FRONT PLASTIC PIECE | 1 Unit |
£9.32
£9.14
|
Add |
|
|
02468 | Draper 2468 HANDLE | 1 Unit |
£10.50
£10.29
|
Add |
|
|
02469 | Draper 2469 CURRENT BOARD & DIODE ASSEMBLY | 1 Unit |
£375.27
£367.91
|
Add |
|
|
02470 | Draper 2470 BREAKER | 1 Unit |
£15.44
£15.14
|
Add |
|
|
02471 | Draper 2471 AIR REGULATOR | 1 Unit |
£35.75
£35.05
|
Add |
|
|
02474 | Draper 2474 FAN | 1 Unit |
£20.67
£20.26
|
Add |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05789 HG700 Plasma Inverter Cutter 400v, Single Phase 70A
£521.41
£511.19
2% OFF
Free delivery in UK Mainland
|
SIP 05687 WELDMATE® PRO 55A Inverter Plasma Cutter
£441.12
£432.47
2% OFF
Free delivery in UK Mainland
|
SIP 05685 WELDMATE® PRO 40A Inverter Plasma Cutter
£330.84
£324.35
2% OFF
Free delivery in UK Mainland
|
SIP 05689 WELDMATE® PRO 80A Inverter Plasma Cutter
£937.39
£919.01
2% OFF
Free delivery in Channel Island
|
|||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05789 | 6016010 | 05782 | 05687 | 05685 | 05689 | PP40E |
| Input Supply | 400 | 230 | 230 | ||||
| Warranty | 24 | ||||||
| Input current | 16 | 13 | |||||
| Output Current (max) | 70 | 0 | 40 | ||||
| Output Current (min) | 25 | 0 | 8 | ||||
A. The 70058 cuts any electrically conductive material including mild steel, stainless steel, aluminium, copper, and brass. Maximum cut capacity is 15mm. It cannot cut non-conductive materials such as wood, plastic, or ceramics.
A. The 70058 requires a 230V supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 70058 has a duty cycle of 60% @60A 100% @40A. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 70058 is supplied with AG60 Plasma cutting torch, Cable, 4m, Earth clamp, 200A, Chipping hammer/wire brush, Face mask. Additional consumables are available separately through PartsForMachines.com.
A. The 70058 weighs 17.2kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.
A. Yes. The 70058 cuts aluminium along with mild steel, stainless steel, copper, and brass. Plasma cutting works on any electrically conductive material — non-conductive materials cannot be plasma cut.
A. Yes. The 70058 is fitted with automatic thermal overload protection that cuts output if the machine exceeds safe operating temperature. It will restart automatically once it has cooled. Operating within the rated duty cycle minimises the frequency of thermal interruptions.
A. Yes — the pilot arc maintains continuity across painted, coated, and rusted surfaces without requiring a clean metal contact point.
A. The 70058 cuts any electrically conductive material — mild steel, stainless steel, aluminium, copper, and brass — up to its rated maximum thickness. For best edge quality, cut at around 60–70% of maximum rated thickness. Thicker material can be severed but the edge will be rougher and may need grinding.
