Product Number: 6016010
Variations
Clean cuts through steel, aluminium, and copper from one machine. A pilot arc maintains cutting continuity on painted, coated, and rusted surfaces without a clean contact point. Duty cycle: rated at max amperage.
With a pilot arc torch, cutting is instant, even on painted surfaces.
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature. Buyers comparing plasma cutters will find the 6016010 handles mild steel, stainless steel, aluminium, copper, and brass from a single machine. Plasma cutting is faster and cleaner than oxy-fuel on thin to medium gauge material, with no pre-heat required. Plasma cutting works on any electrically conductive material. Non-conductive materials such as wood, plastic, and ceramics cannot be plasma cut. Replacement consumables including contact tips, nozzles, and electrodes for the 6016010 are available at PartsForMachines.com. Refer to the operating manual for full setup instructions, safety information, and recommended maintenance intervals. Compliant with EU Regulation 2019/1784 for eco-design of welding equipment.
Additional Information:
This superb professional unit slices cleanly through mild/stainless steel, aluminium, brass & copper making this 230V single phase plasma cutter ideal for autobody repairs.
With a pilot arc torch, cutting is instant, even on painted surfaces.
The kit includes a professional on/off torch, an earth lead and an air filter/regulator.
Require as a minimum a 3HP air compressor.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Volts | 230V |
|---|---|
| Power Supply | Requires Hard Wiring |
| Cutting Current Amps | 28 |
| Cutting depth | 10mm |
| Compressed air pressure (bar) | 5-10.3 |
| Compressed air requirement F.A.D. | 3.5cfm |
| No load Voltage (DC) | 310V |
| Cutting depth - Aluminium | 10mm |
| Dimensions (WLH) mm | 430x155x315 |
| Packaged Weight | 10.58kg |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05783 INT300 Plasma Inverter with Internal Compressor 230v, Single Phase 25A
£834.27
£817.91
2% OFF
Free delivery in Channel Island
|
SIP 05787 HG500 Plasma Inverter Cutter 230v, Single Phase 50A
£618.65
£606.52
2% OFF
Free delivery in UK Mainland
|

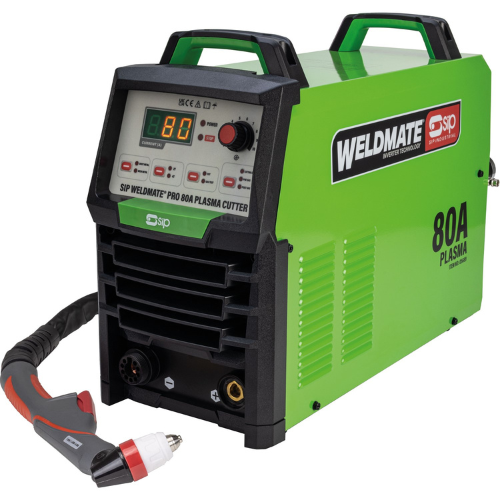

SIP 05689 WELDMATE® PRO 80A Inverter Plasma Cutter
£937.39
£919.01
2% OFF
Free delivery in Channel Island
|
Draper 70066 High Frequency Plasma Cutter, 40A
£195.46
£191.63
2% OFF
Free delivery in UK Mainland
|

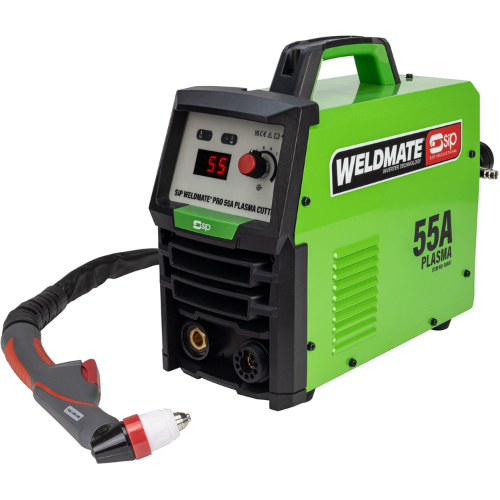

SIP 05687 WELDMATE® PRO 55A Inverter Plasma Cutter
£441.12
£432.47
2% OFF
Free delivery in UK Mainland
|

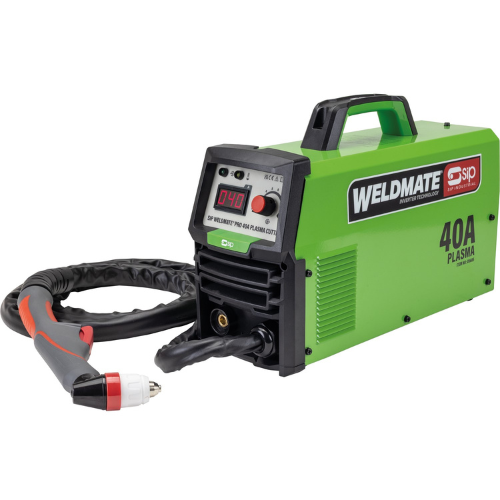

SIP 05685 WELDMATE® PRO 40A Inverter Plasma Cutter
£330.84
£324.35
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05783 | 05787 | 05689 | 70066 | 70058 | 92454 | 05782 | 05687 | 05685 |
| Input Supply | 230 | 230 | 230 | 230 | 230 | 230 | |||
| Warranty | 24 | 24 | |||||||
| Input current | 16 | 16 | 13 | ||||||
| Output Current (max) | 25 | 50 | 0 | 0 | 0 | 0 | |||
| Output Current (min) | 10 | 15 | 0 | 0 | 0 | 0 | |||
| Output voltage | 84.8 | ||||||||
A. The 6016010 cuts any electrically conductive material including mild steel, stainless steel, aluminium, copper, and brass. Maximum cut capacity is 10mm. It cannot cut non-conductive materials such as wood, plastic, or ceramics.
A. The 6016010 requires a 230V / Hardwired supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 6016010 is fitted with thermal overload protection that cuts output automatically if the machine exceeds its rated temperature. Welding at lower amperages extends the continuous run time available before a cool-down period is needed.
A. The 6016010 is supplied with the accessories needed to start welding — check the product listing for the complete included items. Additional consumables for the 6016010 are available at PartsForMachines.com.
A. The 6016010 is primarily designed for workshop use. Check the specification for weight and portability details.
A. Yes. The 6016010 cuts aluminium along with mild steel, stainless steel, copper, and brass. Plasma cutting works on any electrically conductive material — non-conductive materials cannot be plasma cut.
A. Yes. The 6016010 is fitted with automatic thermal overload protection that cuts output if the machine exceeds safe operating temperature. It will restart automatically once it has cooled. Operating within the rated duty cycle minimises the frequency of thermal interruptions.
A. Yes — the pilot arc maintains continuity across painted, coated, and rusted surfaces without requiring a clean metal contact point.
A. The 6016010 cuts any electrically conductive material — mild steel, stainless steel, aluminium, copper, and brass — up to its rated maximum thickness. For best edge quality, cut at around 60–70% of maximum rated thickness. Thicker material can be severed but the edge will be rougher and may need grinding.
