Product Number: HVD24

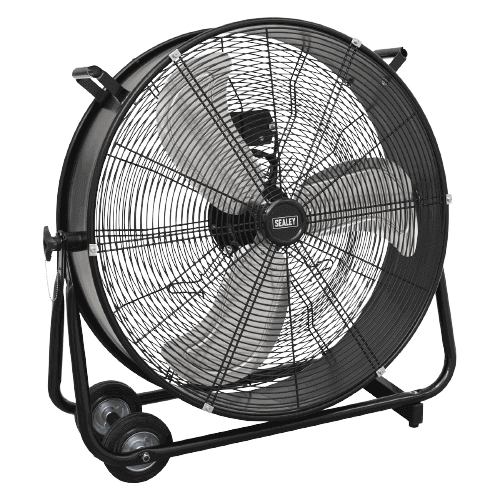

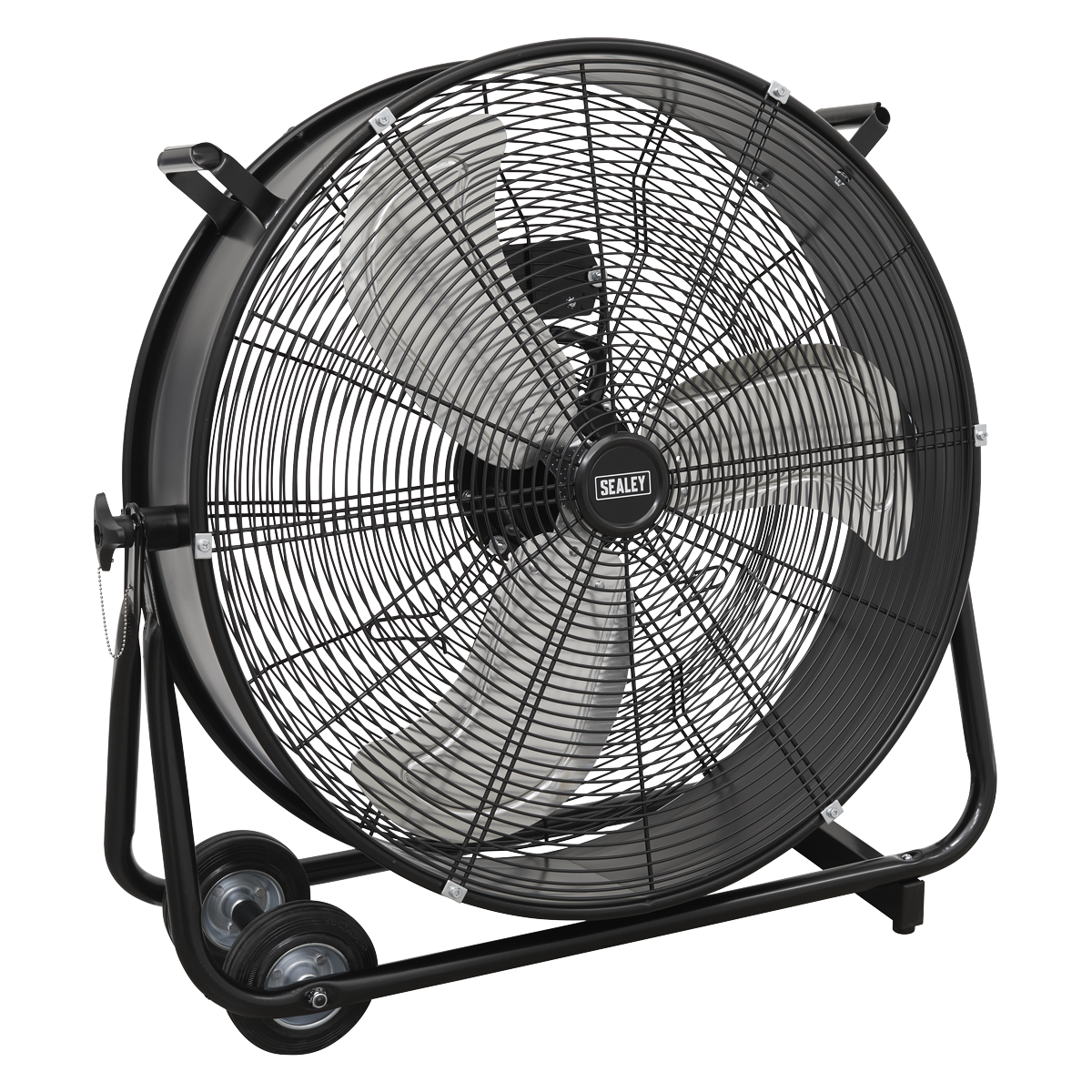

In industrial, commercial, agricultural, and automotive environments, inadequate air movement leads to uncomfortable working conditions, poor ventilation, and reduced productivity. The Sealey HVD24 is a high velocity industrial drum fan designed to move very large volumes of air efficiently, with a maximum airflow of 155.3m³/min (5,484cfm) and a fan diameter of 610mm (24"). Two speed settings and a speed range of 1,350-1,450rpm give you control over airflow intensity to suit the conditions. The unit is built for demanding use, with heavy-duty gauge steel casing, guard, and frame providing robustness and long service life. Carefully balanced, fully guarded blades ensure safe operation, and the fan is supplied fitted with a 3-pin plug for immediate use from a 230V supply. Directing airflow where it is needed is simple thanks to the tilt-function cradle stand, while the handle and wheels allow easy repositioning across large floor areas. The HVD24 draws 0.52A at a power consumption of 116.32W, delivering a service value of 1.34 (m³/min)/W. Sound power level is rated at 84dB(A). Suitable for industrial, commercial, agricultural, automotive workshop, and showroom applications.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HVD24 |
|---|---|
| Brand | Sealey |
| Current | 0.52A |
| Fan Diameter | Ø610mm(24") |
| Maximum Airflow | 155.3m³/min(5484cfm) |
| Nett Weight | 14.50kg |
| Power | 116.32W |
| Service value (SV) | 1.34(m³/min)/W |
| Standby power consumption (PSB) | 0W |
| Fan sound power level (LWA) | 84dB(A) |
| Maximum Air Velocity (c) | 3.66m/sec |
| Speed Range | 1350-1450rpm |
| Speeds | 2 |
| Supply | 230V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
industrial-high-velocity-drum-fan-24-230v.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey HVD30 Industrial High Velocity Drum Fan 30" 230V
£228.54
£224.06
2% OFF
Free delivery in UK Mainland
|
Sealey HVF30S 30" Industrial High Velocity Orbital Drum Fan 230V
£291.26
£285.55
2% OFF
Free delivery in UK Mainland
|
Draper 99623 230V High Flow Drum Fan, 24"/600mm, 330W
£247.61
£242.75
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HVD30 | HVF30S | 99623 | 05639 | 05638 | 05636 |
| Length (mm) | 600 | 762 | 920 | 762 | ||
| Model No | HVD30 | HVF30S | ||||
| Power (W) | 330 | |||||
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 |
| Weight (kg) | 55 | 04 | 21 | |||
A. The HVD24 delivers a maximum airflow of 155.3m³/min (5,484cfm).
A. The fan diameter is Ø610mm (24").
A. The HVD24 has 2 speed settings, with a speed range of 1,350-1,450rpm.
A. The HVD24 is suitable for industrial, commercial, agricultural, automotive workshop, and showroom applications.
A. The HVD24 features a handle and wheels for easy repositioning, and a tilt-function cradle stand that allows the airflow direction to be adjusted as needed.
A. The HVD24 runs on a 230V supply, draws 0.52A, and has a power consumption of 116.32W. It is supplied fitted with a 3-pin plug.
A. Variants in the same product family include the HVD24P, HVD30, and HVD30110V. These share the same drum fan design but differ in size, specification, or voltage. Please refer to each product listing or contact Parts for Machines for confirmation of the specific differences.
A. The fan sound power level is rated at 84dB(A).
A. The HVD24 features heavy-duty gauge steel casing, guard, and frame. The blades are carefully balanced and fully guarded to provide safe operation.
