Product Number: DDXP

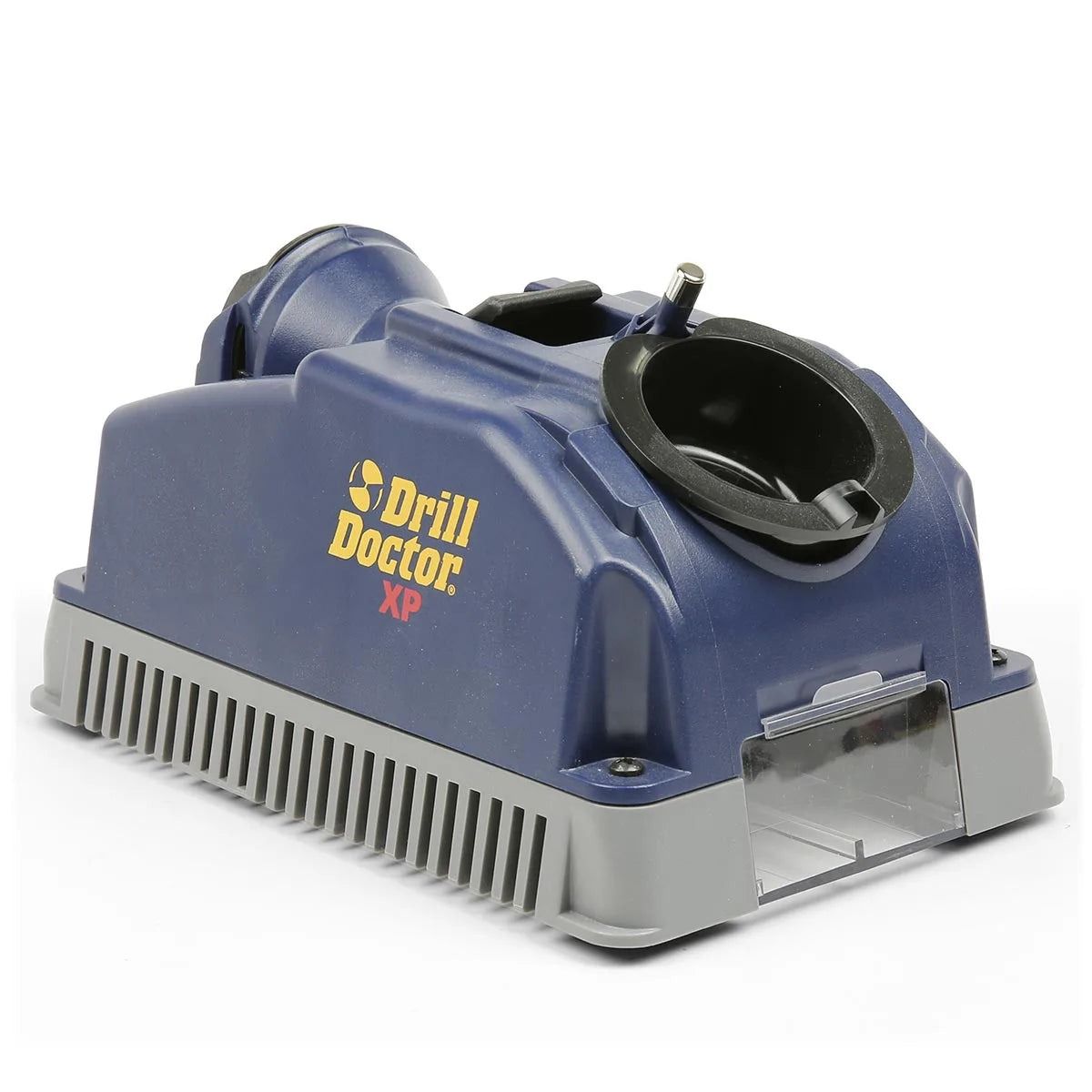

The Drill Doctor XP sharpens drill bits from 3/32in to 1/2in to a 118° point angle. Its adjustable chisel and relief angles add versatility, and it also creates and sharpens split points.
It handles standard twist and masonry bits in carbide, cobalt, high-speed steel, black oxide and TiN-coated types, sized approximately 2.4 mm to 12.7 mm in metric terms. The Push to Stop splitting port prevents over-splitting the bit point. Longer chuck jaws hold bits more precisely, while jaw guides stop the jaws twisting on small bits.
A permanent magnet motor produces consistent power regardless of speed or load. The 100 grit diamond sharpening wheel comes pre-installed and is easy to replace. The box holds the XP sharpener, a 1/2in chuck, the fitted wheel, a user guide and a wheel hub wrench.
Optional accessories, not included, are a large bit chuck up to 3/4in, a left-hand chuck for reverse twist bits from 3/32in to 1/2in, a coarse 100 grit diamond wheel and a carrying/storage case. The XP runs from a 6 ft power cord, weighs 1.6 kg and carries a 3-year warranty.
| Product Type | Electric drill bit sharpener |
|---|---|
| Bit Size Range | 3/32in to 1/2in (optional 3/4in chuck available |
| Bit Types | Standard twist and masonry bits |
| Bit Materials | Carbide, cobalt, high-speed steel, black oxide and TiN-coated |
| Point Angle | 118° |
| Chisel and Relief Angles | Adjustable |
| Split Points | Creates and sharpens split points |
| Over-Split Protection | Push to Stop splitting port |
| Motor | Permanent magnet |
| Sharpening Wheel | 100 grit diamond, pre-installed, replaceable |
| Chuck Supplied | 1/2in |
| Power Cord | 6 ft |
| In the Box | XP sharpener, 1/2in chuck, 100 grit diamond wheel (fitted), user guide, wheel hub wrench |
| Optional Accessories | Large bit chuck up to 3/4in, left-hand chuck for reverse twist bits (3/32in to 1/2in), coarse 100 grit diamond wheel, carrying/storage case |
| Weight | 1.6 kg |
| Warranty | 3 years |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Drill Doctor 500X Drill Bit Sharpener 3/32-1/2in - DD500X
£193.24
£189.45
2% OFF
Free delivery in UK Mainland
|
Drill Doctor 750X Drill Bit Sharpener 3/32-3/4in - DD750X
£234.04
£229.45
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | DD500X | DD750X |
A. Standard twist and masonry bits from 3/32in to 1/2in, in carbide, cobalt, high-speed steel, black oxide and TiN-coated types, to a 118° point angle.
A. Yes. The XP has adjustable chisel and relief angles, and it also creates and sharpens split points.
A. A large bit chuck up to 3/4in, a left-hand chuck for reverse twist bits, a coarse 100 grit diamond wheel and a carrying/storage case. They are not included.
A. The Drill Doctor DDXP carries a 3-year warranty.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
