Product Number: DD750X

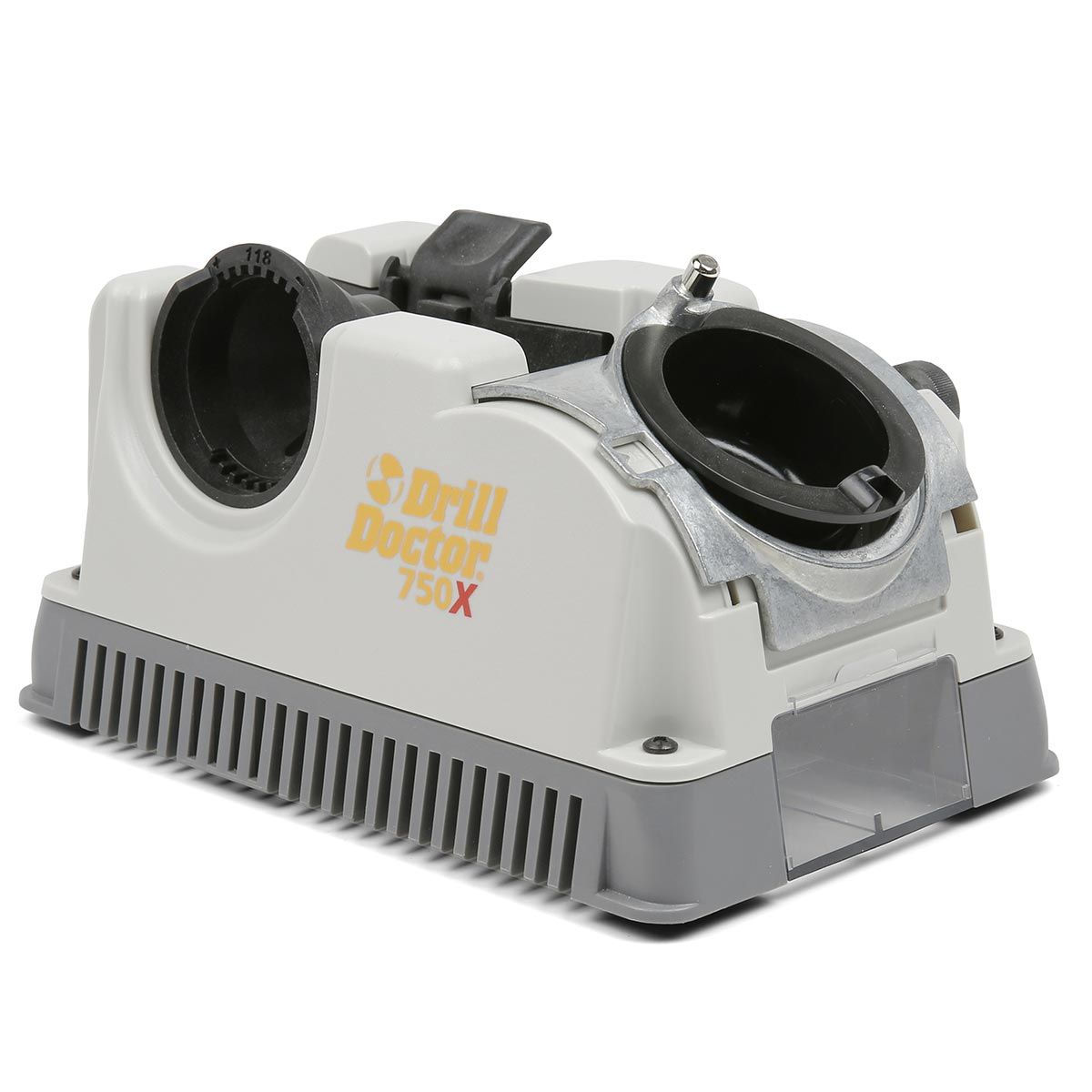

The Drill Doctor 750X sharpens worn drill bits from 3/32in to 3/4in (approximately 2.4 mm to 19 mm). It is the top of the line model in the Drill Doctor range and handles standard twist and masonry bits in carbide, cobalt, high-speed steel, black oxide and TiN-coated types.
Point angle is adjustable from 115° to 140°. Material take-off is adjustable too, so you choose how much material is removed during sharpening and extend the life of your bits. The 750X creates and sharpens split points, and its Push to Stop splitting port will not allow the bit point to be over-split. Longer chuck jaws hold bits more precisely, while jaw guides stop the jaws twisting on small bits.
A permanent magnet motor produces consistent power regardless of speed or load, and the point angle shuttle is cast aluminium for durability. The 100 grit diamond sharpening wheel comes pre-installed and is easy to replace with the wheel hub wrench supplied. The box holds the 750X sharpener, a 3/4in chuck, the fitted wheel, a user guide, a storage bag and the wrench.
The sharpener runs from a 6 ft power cord with a UK 3-pin plug, measures 27.9 x 15 x 16.5 cm and weighs 2.1 kg. The DD750X carries a 3-year warranty.
| Product Type | Electric drill bit sharpener |
|---|---|
| Bit Size Range | 3/32in to 3/4in |
| Bit Types | Standard twist and masonry bits |
| Bit Materials | Carbide, cobalt, high-speed steel, black oxide and TiN-coated |
| Point Angle | Adjustable from 115° to 140° |
| Material Take-Off | Adjustable |
| Split Points | Creates and sharpens split points |
| Over-Split Protection | Push to Stop splitting port |
| Point Angle Shuttle | Cast aluminium |
| Motor | Permanent magnet |
| Sharpening Wheel | 100 grit diamond, pre-installed, replaceable |
| Chuck Supplied | 3/4in |
| Power Cord | 6 ft |
| Plug | UK 3-pin |
| In the Box | 750X sharpener, 3/4in chuck, 100 grit diamond wheel (fitted), user guide, storage bag, wheel hub wrench |
| Dimensions | 27.9 x 15 x 16.5 cm |
| Weight | 2.1 kg |
| Warranty | 3 years |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Drill Doctor 500X Drill Bit Sharpener 3/32-1/2in - DD500X
£193.24
£189.45
2% OFF
Free delivery in UK Mainland
|
Drill Doctor XP Drill Bit Sharpener 3/32-1/2in - DDXP
£121.84
£119.45
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | DD500X | DDXP |
A. Standard twist and masonry bits from 3/32in to 3/4in, in carbide, cobalt, high-speed steel, black oxide and TiN-coated types. The point angle can be set from 115° to 140°.
A. Yes. It creates and sharpens split points, and the Push to Stop splitting port will not allow the bit point to be over-split.
A. The 750X sharpener, a 3/4in chuck, a 100 grit diamond sharpening wheel (pre-installed), a user guide, a storage bag and a wheel hub wrench for changing the wheel.
A. The Drill Doctor 750X carries a 3-year warranty.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
