Product Number: DD500X

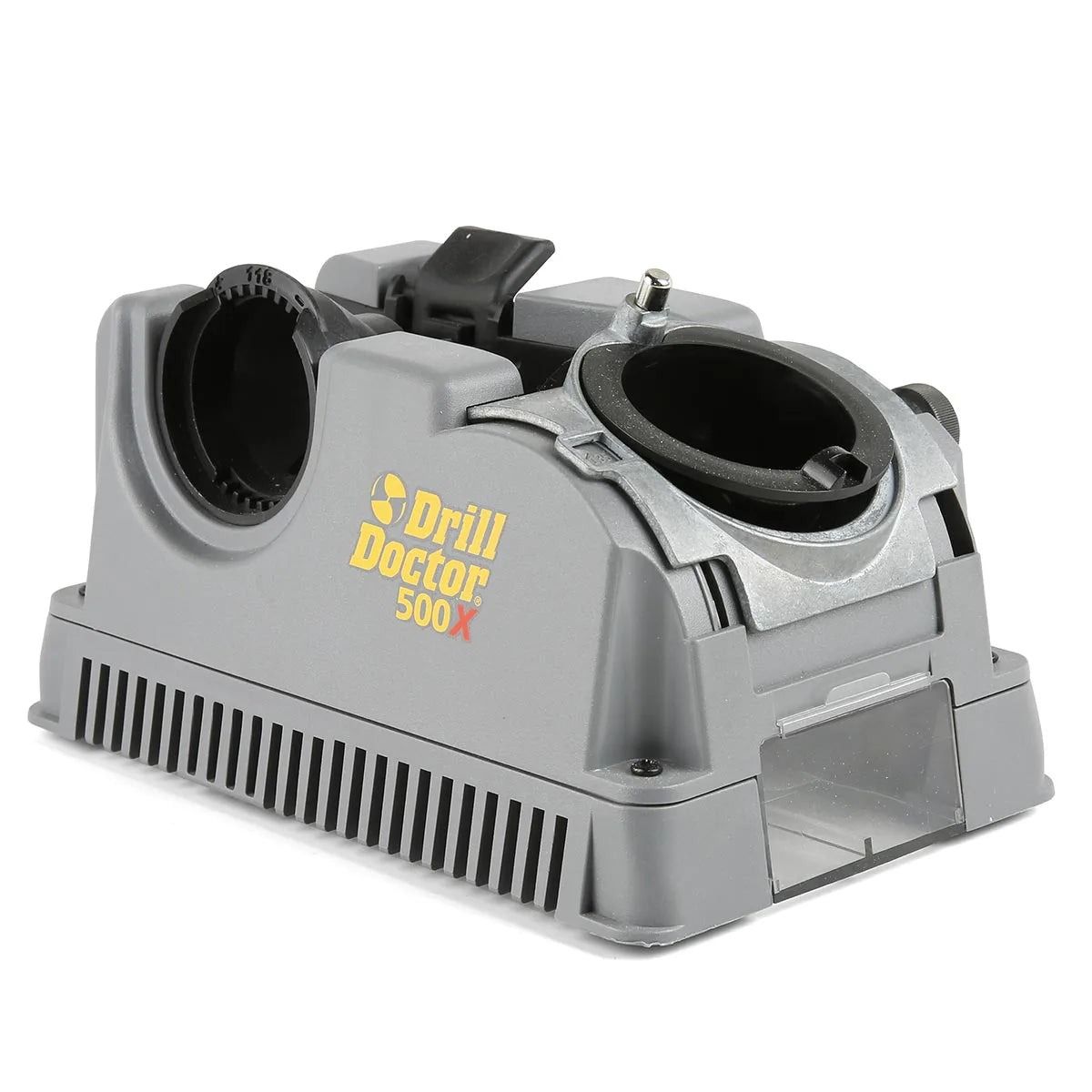

The Drill Doctor 500X sharpens drill bits from 3/32in to 1/2in (approximately 2.4 mm to 12.7 mm). It sharpens to 118° or 135° point angles, which suits workshops that use separate bits for drilling wood and metal, and it is built tough for serious DIY users, hobbyists and anyone who needs to sharpen bits frequently.
Standard twist and masonry bits in carbide, cobalt, high-speed steel, black oxide and TiN-coated types can all be sharpened. The 500X creates and sharpens split points, and the Push to Stop splitting port prevents over-splitting the bit point. Longer chuck jaws hold bits more precisely, while jaw guides stop the jaws twisting on small bits.
A permanent magnet motor produces consistent power regardless of speed or load, and the point angle shuttle is cast aluminium. The 100 grit diamond sharpening wheel comes pre-installed and is easy to replace. The box holds the 500X sharpener, a 1/2in chuck, the fitted wheel, a user guide and a wheel hub wrench; an optional 3/4in chuck is also listed, not included.
The sharpener runs from a 6 ft power cord with a UK 3-pin plug, measures 27.9 x 16.5 x 15 cm and weighs 1.86 kg. The DD500X carries a 3-year warranty.
| Product Type | Electric drill bit sharpener |
|---|---|
| Bit Size Range | 3/32in to 1/2in (optional 3/4in chuck available) |
| Bit Types | Standard twist and masonry bits |
| Bit Materials | Carbide, cobalt, high-speed steel, black oxide and TiN-coated |
| Point Angles | 118° and 135° |
| Split Points | Creates and sharpens split points |
| Over-Split Protection | Push to Stop splitting port |
| Point Angle Shuttle | Cast aluminium |
| Motor | Permanent magnet |
| Sharpening Wheel | 100 grit diamond, pre-installed, replaceable |
| Chuck Supplied | 1/2in |
| Power Cord | 6 ft |
| Plug | UK 3-pin |
| In the Box | 500X sharpener, 1/2in chuck, 100 grit diamond wheel (fitted), user guide, wheel hub wrench |
| Dimensions | 27.9 x 16.5 x 15 cm |
| Weight | 1.86 kg |
| Warranty | 3 years |
