Product Number: 01524

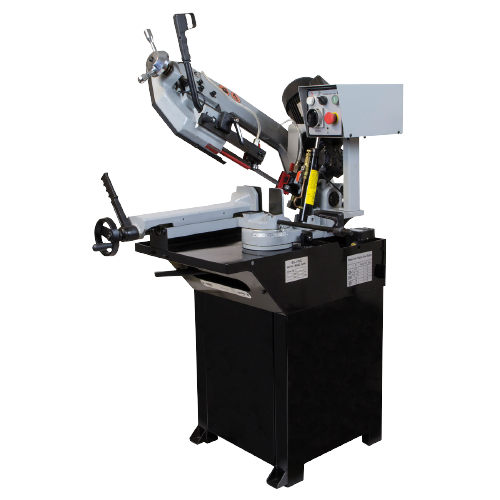

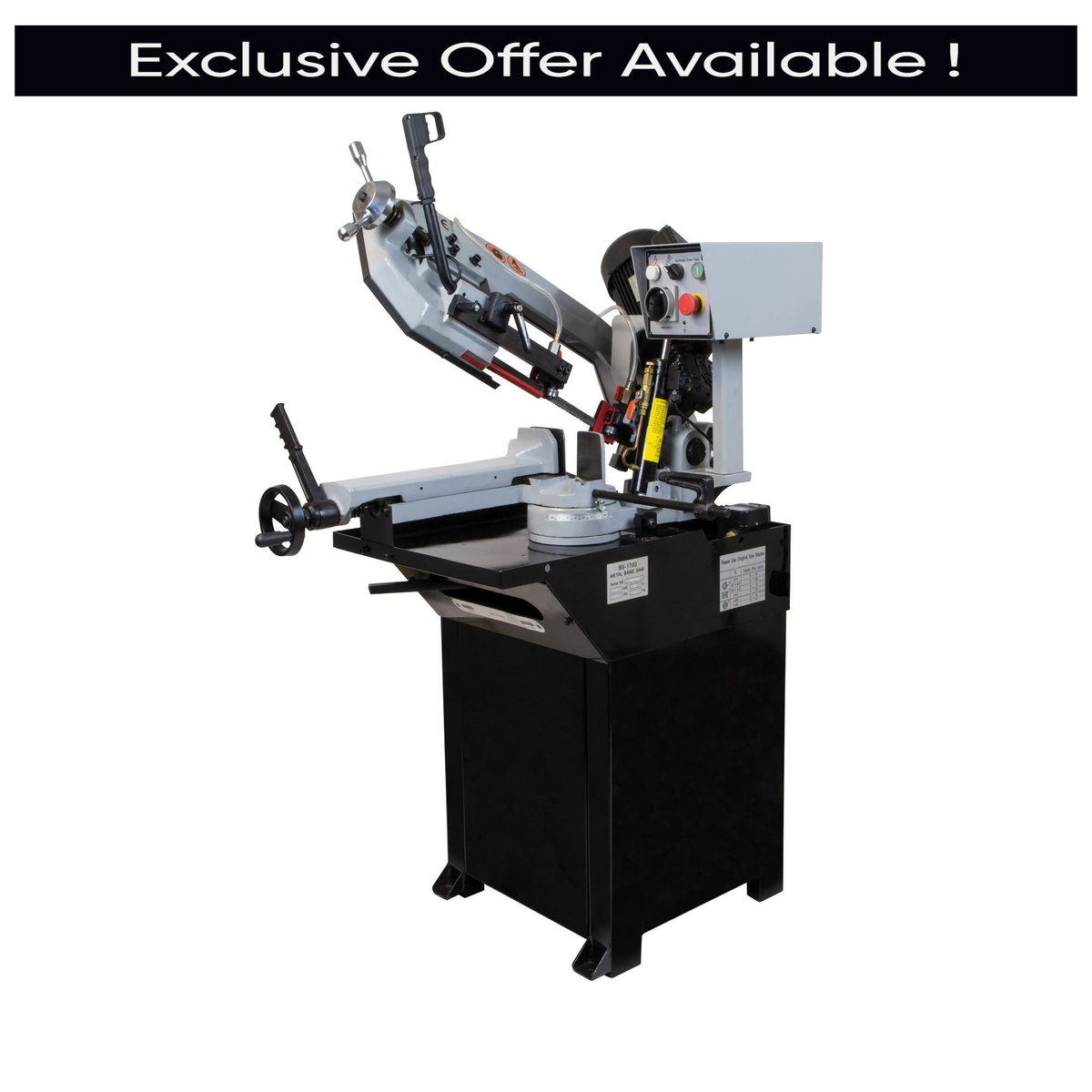

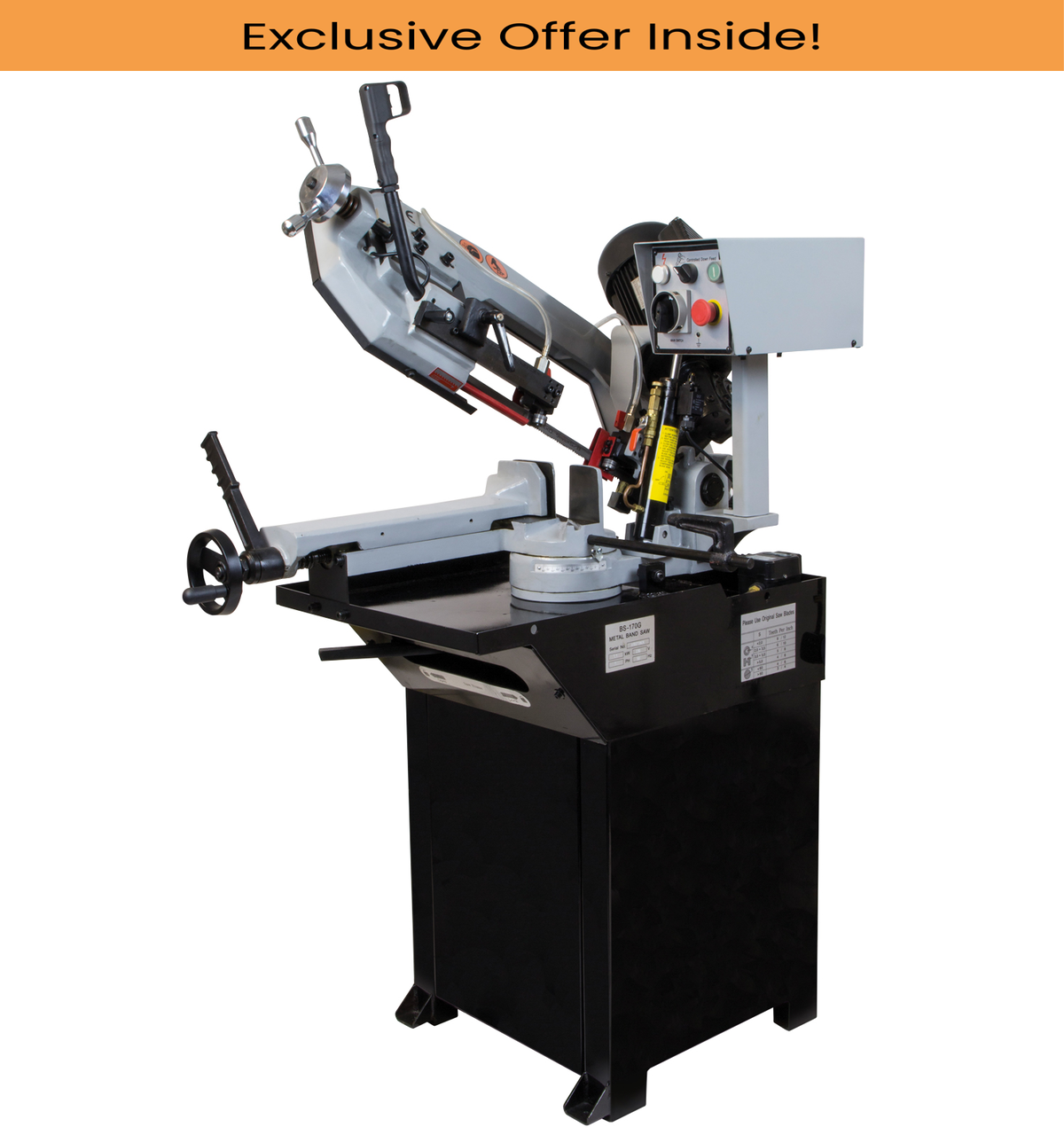

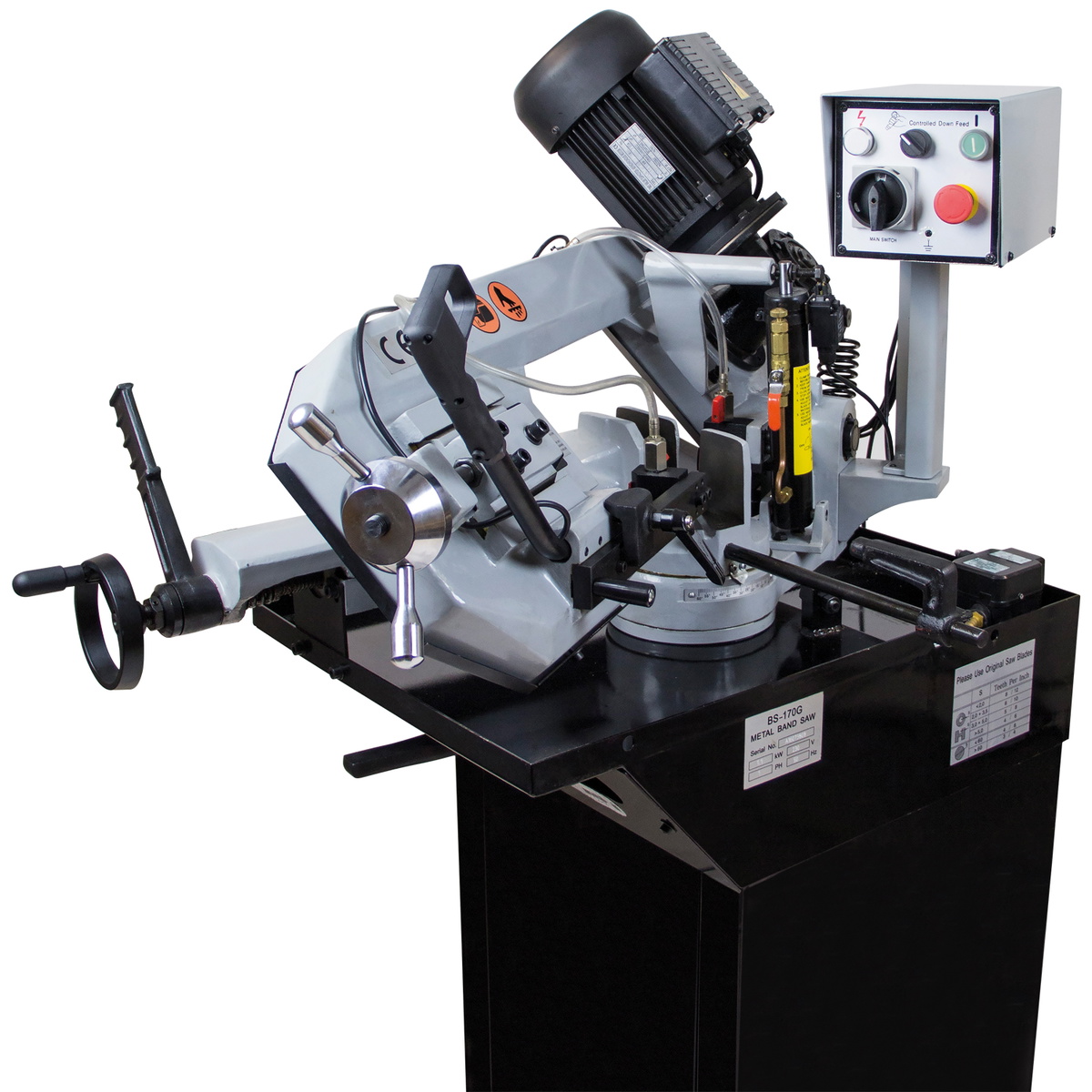

The SIP 01524 10" Swivel Head Pull-Down Metal Bandsaw is a heavy-duty pedestal-mounted machine designed to deliver precise metal cutting performance across trade and professional workshop environments. Driven by a powerful 1.5hp (1.1kW) gearbox system running on a standard 230V (13A) single-phase supply, the bandsaw operates at a cutting speed of 72 metres per minute using a 27mm x 0.9mm x 2,455mm blade.

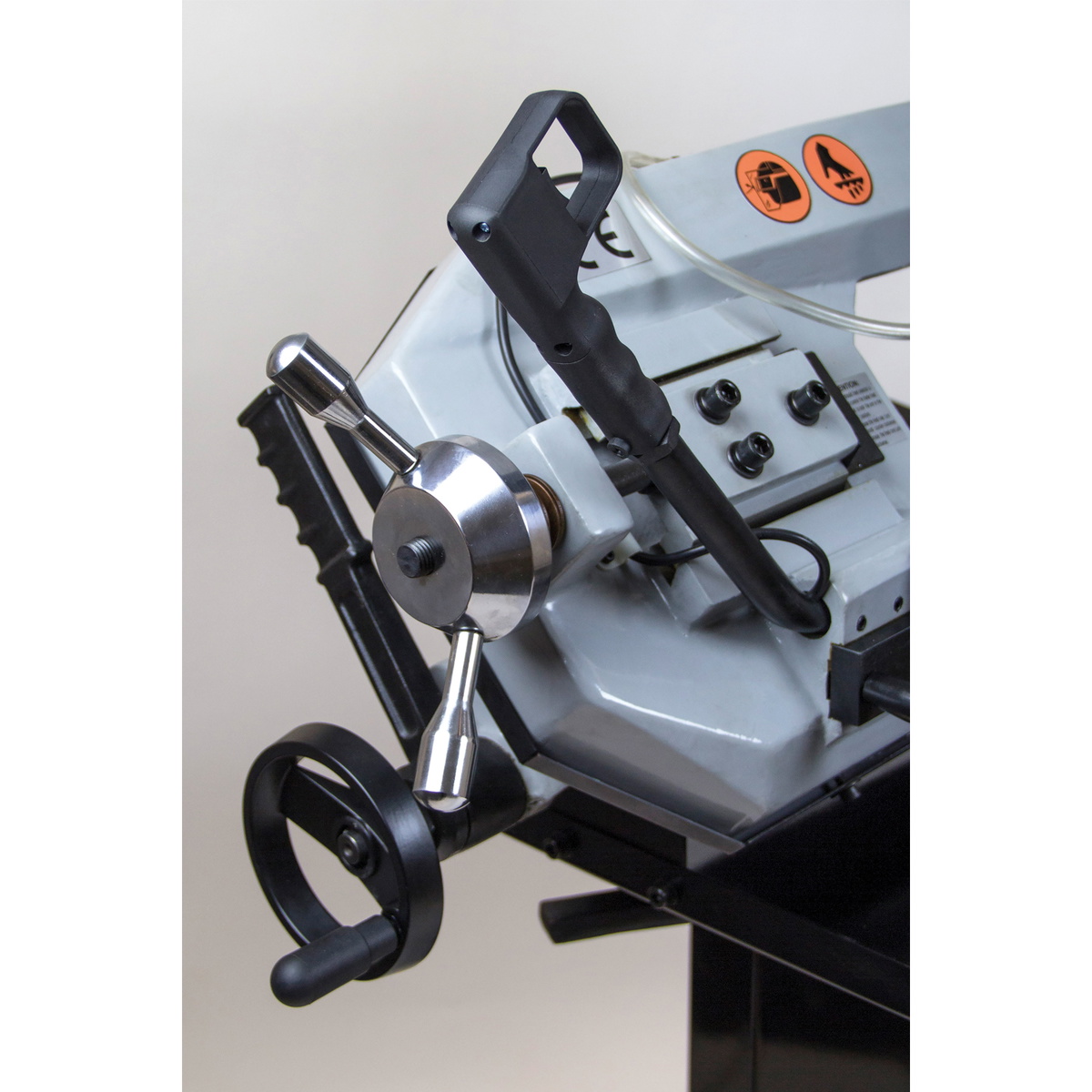

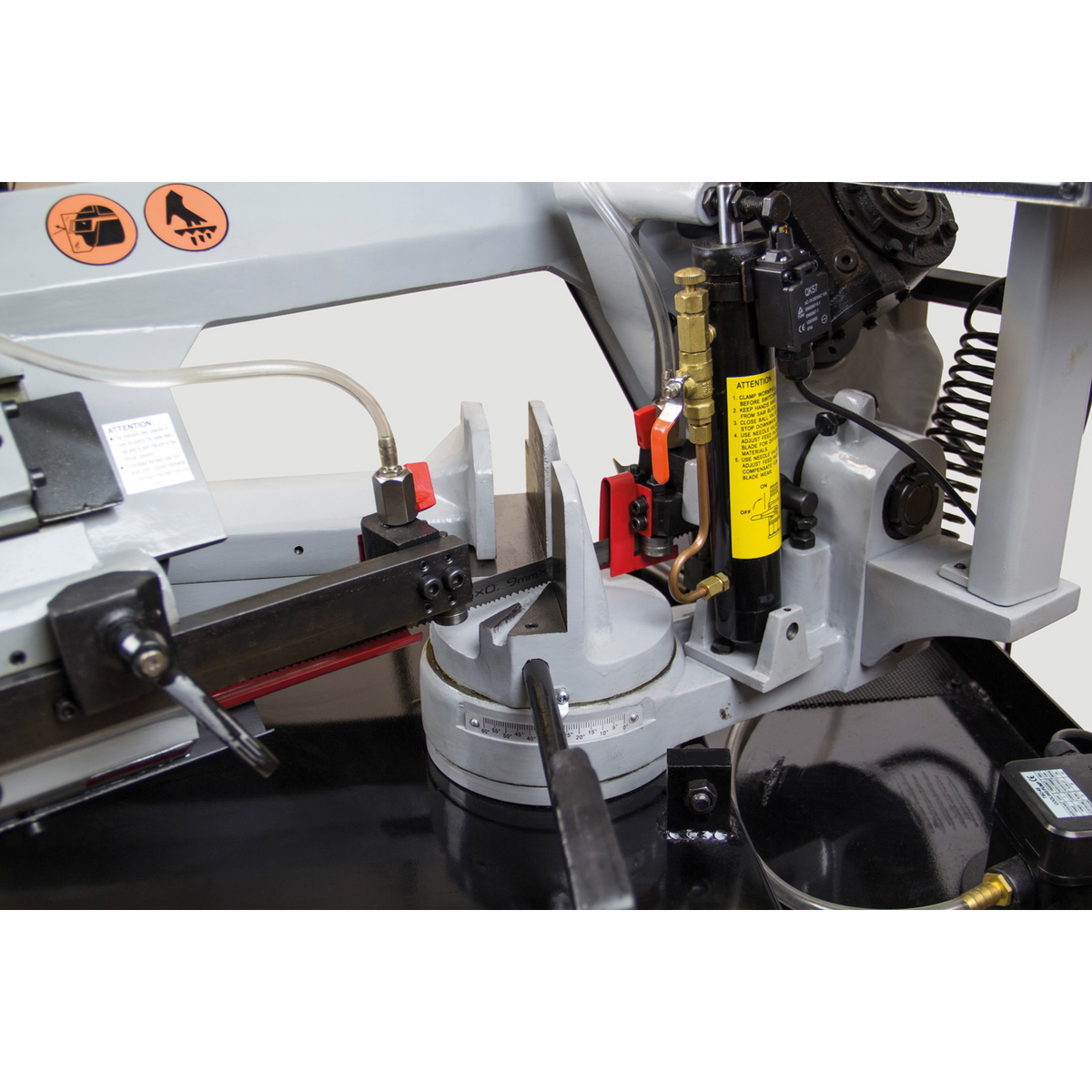

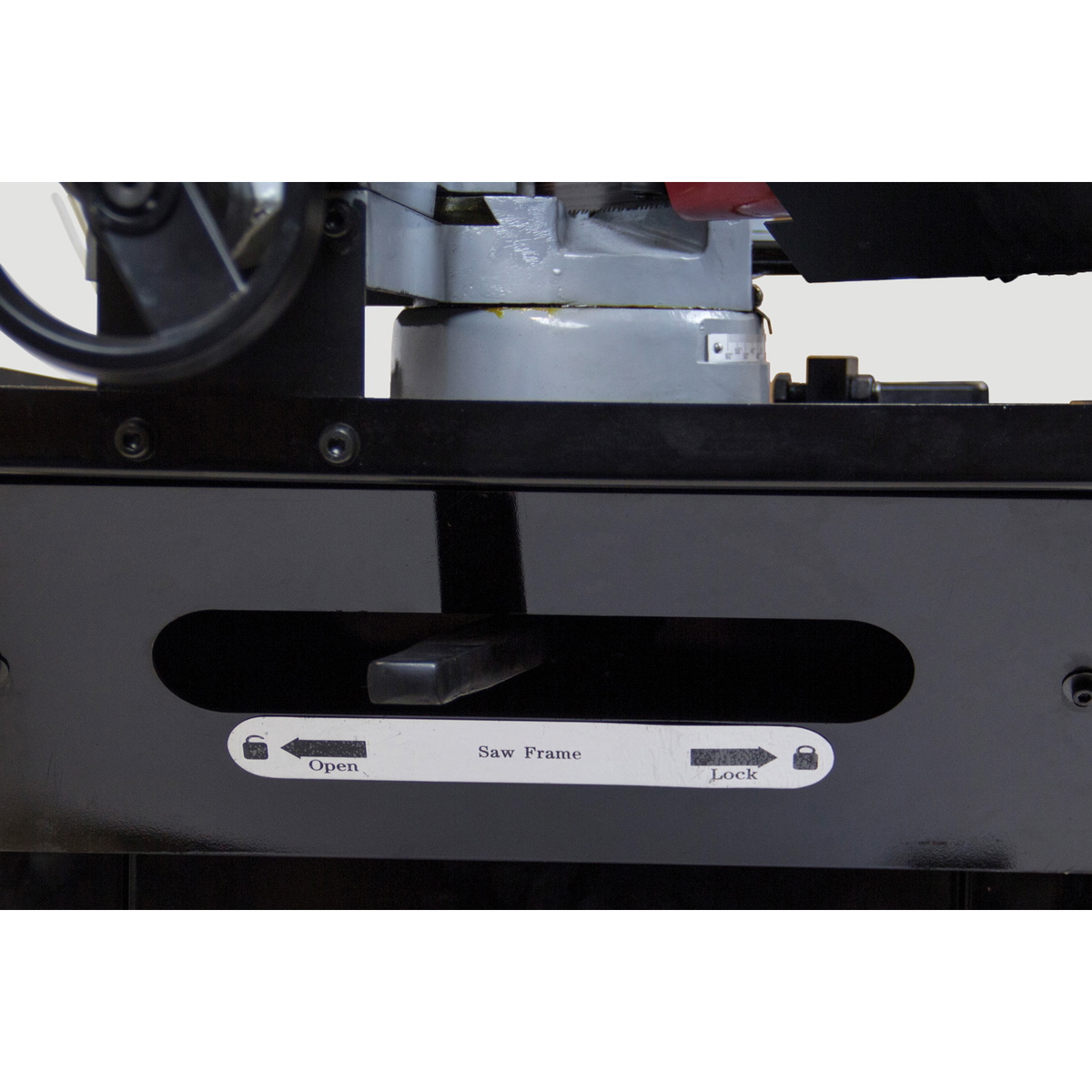

Versatility is a core strength of this machine. A pull-down swivel head with integrated control switch supports both manual and semi-automatic feed control, allowing the operator to switch between individual cutting tasks and higher-volume automated operation as required. The cast iron swivel bow enables quick angle adjustments up to 60°, reducing vibration and maintaining accuracy across angular cuts. The cast iron vice with quick-release handle is particularly well suited to repetitive cutting work.

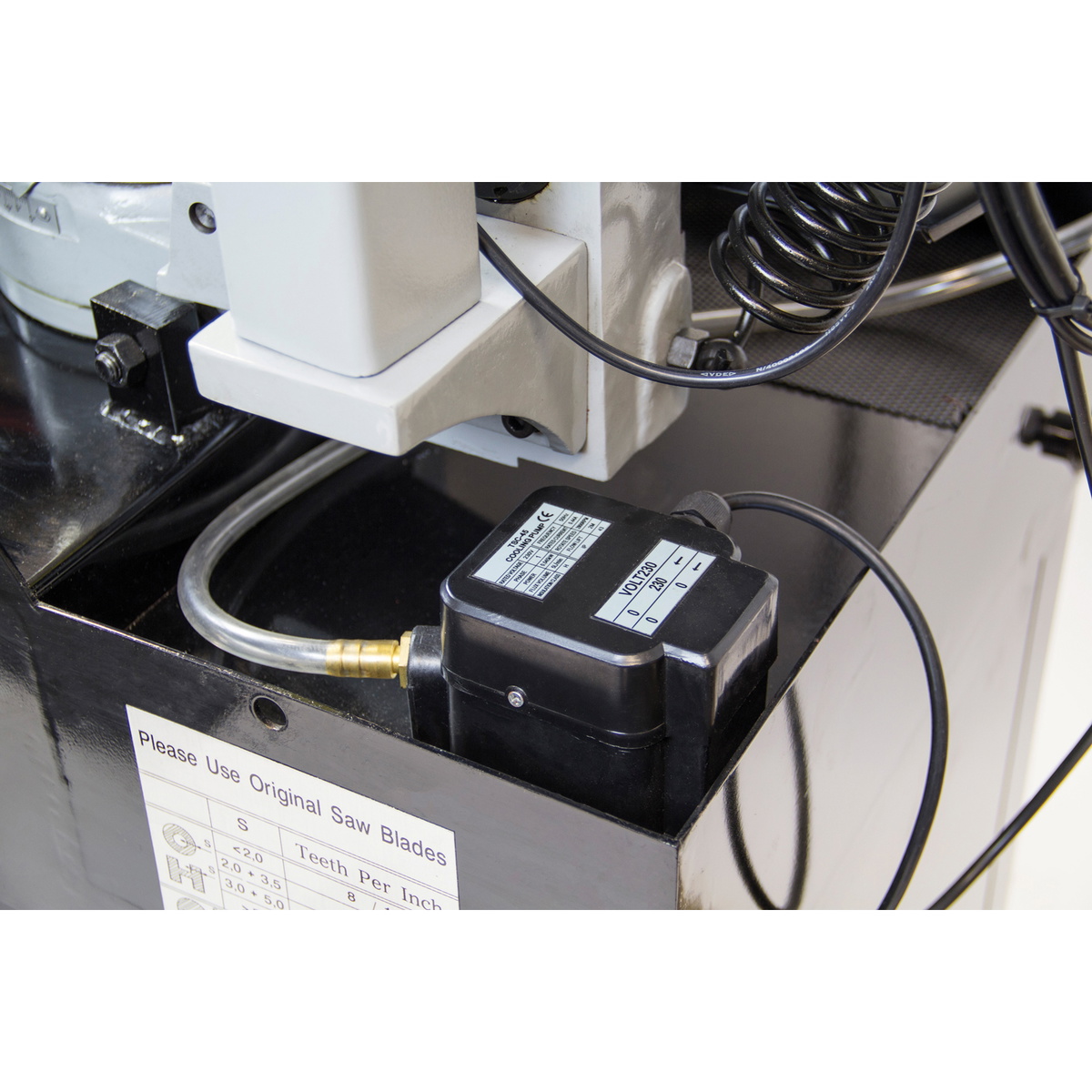

Durability and control are addressed through an adjustable hydraulic ram dampener, which ensures a smooth, consistent cutting descent whilst protecting blade performance. An integrated coolant system extends blade life by cooling the cutting area during operation. A 24V control circuit provides an integrated safety feature as standard.
Cutting capacity is extensive: at 90°, the saw handles circular stock up to 227mm, box section up to 200mm x 200mm, and rectangular section up to 260mm x 110mm. At 45°, circular capacity is 150mm, box section 160mm x 160mm, and rectangular section 150mm x 125mm. At 60°, the machine cuts circular stock to 90mm, box section to 100mm x 100mm, and rectangular section to 85mm x 85mm.
The SIP 01524 is supplied with a SIP 2-Year Standard Silver Warranty. The machine weighs 219.5kg net and has overall product dimensions of 1,372mm (H) x 1,400mm (W) x 850mm (D).
Additional Information:
The SIP 10" Swivel Head Pull-Down Metal Bandsaw provides heavy-duty cutting performance of a range of metals in trade and professionals environments via a powerful gearbox-driven system. Versatile cutting options offer manual and semi-automatic feed control ideal for individual cutting or more automated operation for larger cuts. Not only this, but durability is also superior, with an adjustable ram dampener and integrated coolant system providing improved blade life.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01524 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.1kW (1.5hp) |
| Operating Speed | 72mtr/min |
| Blade Size | 27mm x 0.9mm x 2455mm |
| Cutting Capacity Circular @ 90° | 227mm |
| Cutting Capacity Square @ 90° | 200mmx200mm |
| Cutting Capacity Rectangle @ 90° | 260mmx110mm |
| Cutting Capacity Circular @ 60° | 90mm |
| Cutting Capacity Square @ 60° | 100mmx100mm |
| Cutting Capacity Rectangle @ 60° | 85mmx85mm |
| Cutting Capacity Circular @ 45° | 150mm |
| Cutting Capacity Square @ 45° | 160mmx160mm |
| Cutting Capacity Rectangle @ 45° | 150mmx125mm |
| Net Weight | 219.5kg |
| Gross Weight | 274.5kg |
| Product Dimensions | 1372(H) x 1400(W) x 850mm(D) |
| Packaged Dimensions | 1015(H) x 1440(W) x 710mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
01428 | SIP 01428 Premium B/saw Blade | 1 Unit |
£93.87
£92.03
|
Add |
|
WK04-00401 | SIP WK04-00401 2455 x 27 x 0.9mm M42 Bandsaw Blade | 1 Unit |
£63.04
£61.80
|
Add |
|
WK04-00568 | SIP WK04-00568 Hydraulic Cylinder | 1 Unit |
£205.05
£201.03
|
Add |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Metal Cutting Bandsaw or Chop Saw? Sizing, Straight Cuts, Blades Cutting steel with a grinder, or fighting a bandsaw that runs off line and snaps blades? Choose the saw by section, angle and power supply, then keep the bl...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01593 8" Swivel Metal-Cutting Bandsaw
£2,021.61
£1,981.97
2% OFF
Free delivery in Channel Island
|
SIP 01594 SIP 12" 230v Professional Metal Bandsaw
£1,533.27
£1,503.21
2% OFF
Free delivery in Channel Island
|
SIP 01520 8" Swivel Head Pull-Down Metal Cutting Bandsaw (230v)
£1,995.35
£1,956.23
2% OFF
Free delivery in Channel Island
|
SIP 01565 12" Industrial Circular Saw - Three Phase
£2,355.05
£2,308.87
2% OFF
Free delivery in Channel Island
|
Sealey SM5 Metal Cutting Bandsaw 3-Speed 150mm 230V
£466.14
£457.00
2% OFF
Free delivery in UK Mainland
|
Sealey SM35CE Bandsaw 300mm Horizontal Hydraulic Arm
£1,409.80
£1,382.16
2% OFF
Free delivery in UK Mainland
|
Sealey SM353CE Bandsaw 400mm Horizontal Hydraulic Arm 1500W
£3,581.53
£3,509.90
2% OFF
Free delivery in UK Mainland
|
Sealey SM65 Metal Cutting Bandsaw 150mm 230V with Mitre & Quick Lock Vice
£583.09
£571.43
2% OFF
Free delivery in UK Mainland
|
Sealey SM354CE Industrial Power Bandsaw 210mm
£1,677.72
£1,644.82
2% OFF
Free delivery in UK Mainland
|
Sealey SM355CE Industrial Power Bandsaw 255mm
£2,414.34
£2,366.05
2% OFF
Free delivery in UK Mainland
|
Sealey TS01 Vice & Bench Mounting Sheet Metal Folder 700mm
£155.10
£152.06
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01597 | 01593 | 01594 | 01520 | 01595 | 01565 | SM5 | SM35CE | SM353CE | SM65 | DC16 | SM354CE | SM355CE | TS01 | DF760 |
| Warranty | 24 | 24 | 24 | 24 | 24 | 24 | |||||||||
| Type | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw |
| Blade Size | 2362mm x 0.9mm x 19mm | 20mm x 0.9mm x 2085mm | max. 315mm | 1638 x 13 x 0.63mm | 2360 x 19 x 0.9mm | 3035 x 27 x 0.9mm | 1638 x 13 x 0.63mm | 2105 x 20 x 0.9mm | 2450 x 27 x 0.9mm | ||||||
| Length (mm) | 127 | 2362 | 178 | 20 | 178 | 315 | 150 | 300 | 400 | 150 | 210 | 255 | 700 | 760 | |
| Motor Power | 2hp (1.5kW) | 1.5hp (1.1kW) | 1.5hp (1.1kW) | 1.1kW (1.5hp) | 1hp (0.75kW) | 1hp (0.75kW) / 1.7hp (1.1kW) | 375W | 750W | 1500W | 375W | 900W | 1100W | |||
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | ||||||
| Weight (kg) | 140.6 | 172.4 | 60 | 138 | 279 | 10 | 70 | 164 | 218 | 47 | 39 | ||||
| Show More | |||||||||||||||
A. The SIP 01524 is designed for heavy-duty cutting of a range of metals in trade and professional environments. It handles circular, square box, and rectangular sections. At 90°, maximum capacities are 227mm (circular), 200mm x 200mm (box), and 260mm x 110mm (rectangular). At 45°, capacities are 150mm (circular), 160mm x 160mm (box), and 150mm x 125mm (rectangular). At 60°, capacities are 90mm (circular), 100mm x 100mm (box), and 85mm x 85mm (rectangular).
A. The machine provides both manual and semi-automatic feed control. Manual feed is suited to individual cutting operations, whilst the semi-automatic mode is intended for more automated operation when handling larger or higher-volume cuts.
A. The SIP 01524 operates on a standard 230V (13A) single-phase supply. Motor output is 1.5hp (1.1kW), driving the blade via a gearbox system at an operating speed of 72 metres per minute.
A. The SIP 01524 uses a blade measuring 27mm x 0.9mm x 2,455mm.
A. The adjustable hydraulic ram dampener controls the descent of the cutting head, ensuring a smooth and consistent cutting action. This aids both cutting accuracy and blade longevity during operation.
A. Yes. An integrated coolant system is fitted as standard. It cools the cutting area during use, which extends blade life.
A. The SIP 01524 is covered by a SIP 2-Year Standard Silver Warranty.
A. The machine has product dimensions of 1,372mm (H) x 1,400mm (W) x 850mm (D) and a net weight of 219.5kg. Packaged dimensions are 1,015mm (H) x 1,440mm (W) x 710mm (D) with a gross weight of 274.5kg.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
