Electric heating is limited by the supply before it is limited by anything else. A 230V socket will carry 2kW or 3kW and no more. Getting beyond that means three phase, and the 400V machines here run 5kW, 9kW, 10kW, 15kW and 30kW. Confirming what the building has is the first step rather than the last.
Heater form then decides how the heat reaches the space. A fan heater pushes warm air and heats a room quickly. A convector warms air that rises and circulates without a fan, which is quieter for a space people occupy. PTC elements self-limit their temperature, which is a safety characteristic rather than a performance one. Industrial PTC bodies run 2000W to 9000W across the same span, with the element type stated per machine.
Radiant heating works on a different principle again. Infrared quartz and carbon fibre heaters warm what the beam falls on rather than the air, which suits a workshop with a door that keeps opening. Wall-mount and tripod forms put that heat where it is needed without taking floor space, from 1.2kW to 2.8kW.
Controls change how a heater is actually used over a season. A thermostat holds temperature rather than running flat out, a timer starts a workshop warm, and a 7-day timer on the 110V ceramic machines suits a site cabin. Baridi glass panel heaters and radiators sit on the same leaf. Questions go over WhatsApp on 07754288583 with the supply available.
| Model No | FH2010 |
|---|---|
| Brand | Sealey |
| Nett Weight | 1.2kg |
| Power | 1000/2000W |
| Supply | 230V |
| ITEM NO | 09128 |
|---|---|
| Input Supply | 230v (13A) |
| Max. Heat Output | 6,820BTU/hr (2kW) |
| Heat Settings | 3 settings; 6,820BTU/hr (2kW) / 3,412BTU/hr (1kW) / Fan (25w) |
| Tilt Adjustment | Yes |
| Model No | CH20 |
|---|---|
| Brand | Sealey |
| Nett Weight | 1.4kg |
| Power | 0-2000W |
| Size (W x D x H) | 210 x 130 x 260mm |
| Model No | RD800 |
|---|---|
| Brand | Sealey |
| Nett Weight | 3.1kg |
| Power | 800W |
| Size (W x D x H) | 280 x 100 x 390mm |
| Model No | PEH2001 |
|---|---|
| Brand | Sealey |
| Heated Area | 40m³ |
| Nett Weight | 1.5kg |
| Output | 6,800Btu/hr |
| Model No | CD2005 |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.5kg |
| Power | 750/1250/2000W |
| Size (W x D x H) | 595mm x 200mm x 420mm |
| Model No | IWMH2003 |
|---|---|
| Brand | Sealey |
| Nett Weight | 1.90kg |
| Power | 2000W |
| Supply | 230V - 13A |
| Heated area | 20m³ |
|---|---|
| Air output | 293m³/h |
| Power | 25/2,000W |
| Heat output | 6,824BTU |
| Supply | 230V |
| Model No | CD2013 |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.85kg |
| Power | 750/1250/2000W |
| Size (W x D x H) | 620 x 224 x 380mm |
| Model No | CD2005T |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.8kg |
| Power | 750/1250/2000W |
| Size (W x D x H) | 595 x 200 x 420mm |
| Model No | CD2005TT |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.9kg |
| Power | 750/1250/2000W |
| Size (W x D x H) | 595 x 200 x 420mm |
| Heated area | 32m³ |
|---|---|
| Air output | 312m³/h |
| Power (Fan) | 30W |
| Power (Heater) | 2800W |
| Heat output | 9,554BTU |
| Model No | CH28 |
|---|---|
| Brand | Sealey |
| Nett Weight | 1.5kg |
| Power | 0-2800W |
| Size (W x D x H) | 234 x 130 x 284mm |
| Model No | EH2001 |
|---|---|
| Brand | Sealey |
| Heated Area | 40m³ |
| Nett Weight | 3.50kg |
| Output | 6,800Btu/hr |
| ITEM NO. | 09215 |
|---|---|
| Input Supply | 230v (13A) |
| Max. Heat Output | 9,554BTU/hr (2.8kW) |
| Heat Settings | 3 settings; 9,554BTU/hr (2.8kW) / 4,777BTU/hr (1.4kW) / Fan (25w) |
| Tilt Adjustment | Yes |
| Model No | CD2013TT |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.8kg |
| Power | 1250/2000W |
| Size (W x D x H) | Assembled 625mm x 260mm x 350mm |
| Model No | DH348 |
|---|---|
| Dimensions (W x D x H) | 42 x 5.8 x 60cm |
| Fitting | Wall Mounted |
| Material | Steel |
| Nett Weight | 12.7Kg |
| Model No | DH338 |
|---|---|
| Dimensions (W x D x H) | 42 x 5.8 x 60cm |
| Fitting | Wall Mounted |
| Material | Steel |
| Nett Weight | 12.7kg |

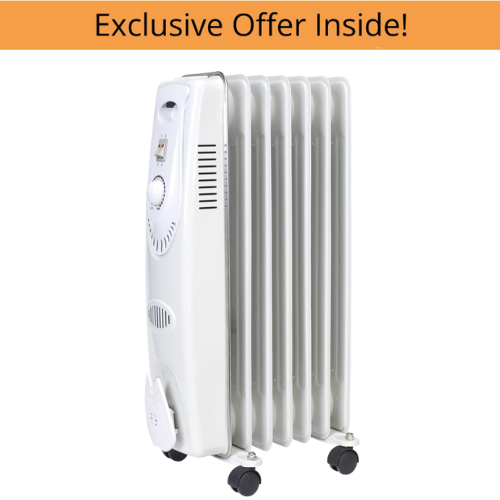

| Model No | RD1500 |
|---|---|
| Brand | Sealey |
| Nett Weight | 7.8kg |
| Power | 1500W |
| Size (W x D x H) | 340 x 240 x 614mm |
| Model No | FH3000 |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.8kg |
| Power | 0-3000W |
| Size (W x D x H) | 300 x 267 x 332mm |
| ITEM NO | 09586 |
|---|---|
| Input Supply | 230v (13A) |
| Max. Heat Output | 6,820BTU/hr (2kW) |
| Heat Settings | 2 settings; 3,412BTU/hr / 6,820BTU/hr (2kW) |
| Protection Level | IP55 |
| Model No | DH366 |
|---|---|
| Dimensions (W x D x H) | 427 x 70 x 600mm |
| Fitting | Wall Mounted |
| Material | Steel |
| Nett Weight | 9.3kg |
| Model No | DH361 |
|---|---|
| Dimensions (W x D x H) | 427 x 70 x 600mm |
| Fitting | Wall Mounted |
| Material | Steel |
| Nett Weight | 9.3kg |
| Model No | DH356 |
|---|---|
| Dimensions (W x D x H) | 427 x 70 x 600mm |
| Fitting | Wall Mounted |
| Material | Steel |
| Nett Weight | 9.3kg |
| Model No | IWMH1809R |
|---|---|
| Brand | Sealey |
| Nett Weight | 2.69kg |
| Power | 1800W |
| Supply | 230V - 13A |
| ITEM NO | 09587 |
|---|---|
| Input Supply | 230v (13A) |
| Max. Heat Output | 5,118BTU/hr (1.5kW) |
| Heat Settings | 1 setting; 5,118BTU/hr (1.5kW) |
| Protection Level | IP44 |
| Model No | DH135 |
|---|---|
| Cable Length | 1.5m |
| Colour | Black |
| IP Rating | IP24 |
| Material | Glass |
| Model No | DH136 |
|---|---|
| Cable Length | 1.5m |
| Colour | White |
| IP Rating | IP24 |
| Material | Glass |
| Model No | DH138 |
|---|---|
| Cable Length | 1.5m |
| Colour | White |
| IP Rating | IP24 |
| Material | Glass |
| Model No | DH137 |
|---|---|
| Cable Length | 1.5m |
| Colour | Black |
| IP Rating | IP24 |
| Material | Glass |
