Product Number: M-PR-OF1200-270-MT3
Variations
Click on the button below to find the right air compressor

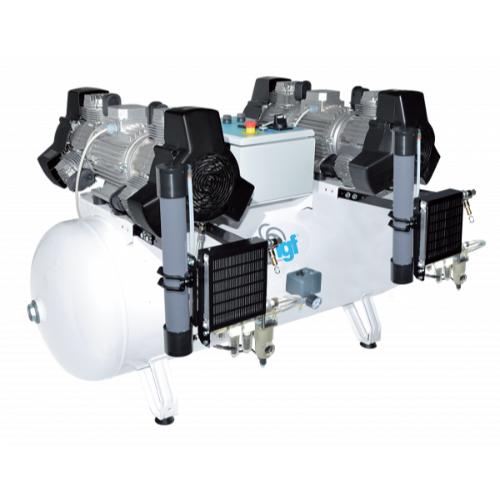

Air Compressor FinderMGF 270/100 Tandem Prime M Compressor With Dryer is a 10kW, 270L oil‑free compressed air plant for sites requiring very high flow of clean, dry air. Twin 5kW PRIME pump assemblies deliver 780 L/min (27.5 CFM) at 5 bar, with maximum pressure of 10 bar and a large 270 litre internally coated receiver. The integrated membrane dryer provides a ‑20°C pressure dew point, achieving ISO 8573.1 Class 1‑3‑1 quality with particles below 0.1 micron and zero oil content, ideal for dental hospitals, medical gas rooms, food production and analytical laboratories. PRIME technology ensures stable 100% duty operation at around 75 dB(A), while the 1560 x 1000 x 1030mm open‑frame design allows good access for maintenance. This 270/100 Tandem Prime M package is designed as a central clean‑air source where reliability, high capacity and built‑in drying are critical.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Chairs | 15 |
|---|---|
| c.f.m @5Maximum Pressure (Bar) | 27.5 |
| L/min @5Maximum Pressure (Bar) | 780 |
| Power (Hp) | 6.5+6.5 |
| Power (kW) | 5+5 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 75 |
| Volt | 400 |
| Receiver Size | 270Lt |
| Product L x W x H (mm) | 1560 x 1000 x 1030 |
| Kg | 240 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
A. This is a large open-frame, oil-free Prime compressor feeding a 270-litre coated receiver for extensive multi-chair dental and laboratory networks.
A. Large hospitals, university clinics and major laboratories requiring substantial, continuous oil-free air for many chairs or instruments use this system.
A. It is designed for 100% duty, providing continuous compressed air in demanding medical or laboratory applications when cooled and ventilated correctly.
A. The large receiver minimises pressure drop and cycling when many endpoints draw air simultaneously, improving stability across the network.
A. Yes, it can be equipped with integrated membrane drying to maintain low dew points and support HTM 2022 and ISO 8573.1 compliance.
A. It typically operates up to around 10bar, ensuring adequate pressure for medical and dental compressed air distribution systems.
A. Oil-free compression eliminates risk of oil contamination, protecting equipment and patient outcomes while simplifying adherence to air purity standards.
A. Yes, it is often installed with additional Prime modules or backup compressors to meet redundancy requirements in critical facilities.
A. Planned maintenance of pumps, receivers, dryers and filters according to MGF guidance is essential to ensure reliable operation.
A. It should be installed in a dedicated plant room with acoustic measures to keep noise away from patient or laboratory areas.
A. They must size cabling, breakers and protection for the total pump load, following MGF’s electrical specifications.
A. Yes, provided line sizing, regulators and monitoring are properly engineered to meet national medical gas standards and guidelines.
A. The 270/100 Tandem Prime M uses two 5kW oil-free compressors and a 270-litre receiver, providing high-capacity air with integrated membrane dryer.
A. It delivers about 27.5CFM, 780L/min at 5bar, supporting roughly fifteen chairs in large dental or medical facilities.
A. The compressor supports 100% duty with noise around 75dB(A), so plant-room installation with acoustic control is recommended.
A. The large 270-litre receiver improves pressure stability and reduces cycling when many outlets draw air simultaneously.
A. It can provide roughly -20°C pressure dew point, helping safeguard air quality in critical medical, food and laboratory environments.
A. When used with filtration, it supports ISO 8573.1 Class 1-3-1 and HTM 2022 for medical compressed air systems.
A. Large hospitals, multi-surgery clinics and centralised lab facilities needing reliable, oil-free air for many users select this model.
A. It requires a 400V three-phase supply sized for two 5kW motors, with appropriate protection and wiring according to MGF guidelines.
A. Yes, it is often installed alongside additional Prime or backup compressors for redundancy in critical medical gas systems.
A. Open-frame layout eases access for servicing but requires dedicated plant-room space and controlled ventilation.
A. Regular inspection of dryers, filters, safety valves and receiver condition is essential to maintain performance and meet regulations.
A. Yes, its oil-free, dried output is suitable for lab and food-processing tasks when full treatment train is correctly specified.
