Product Number: 06455
Variations

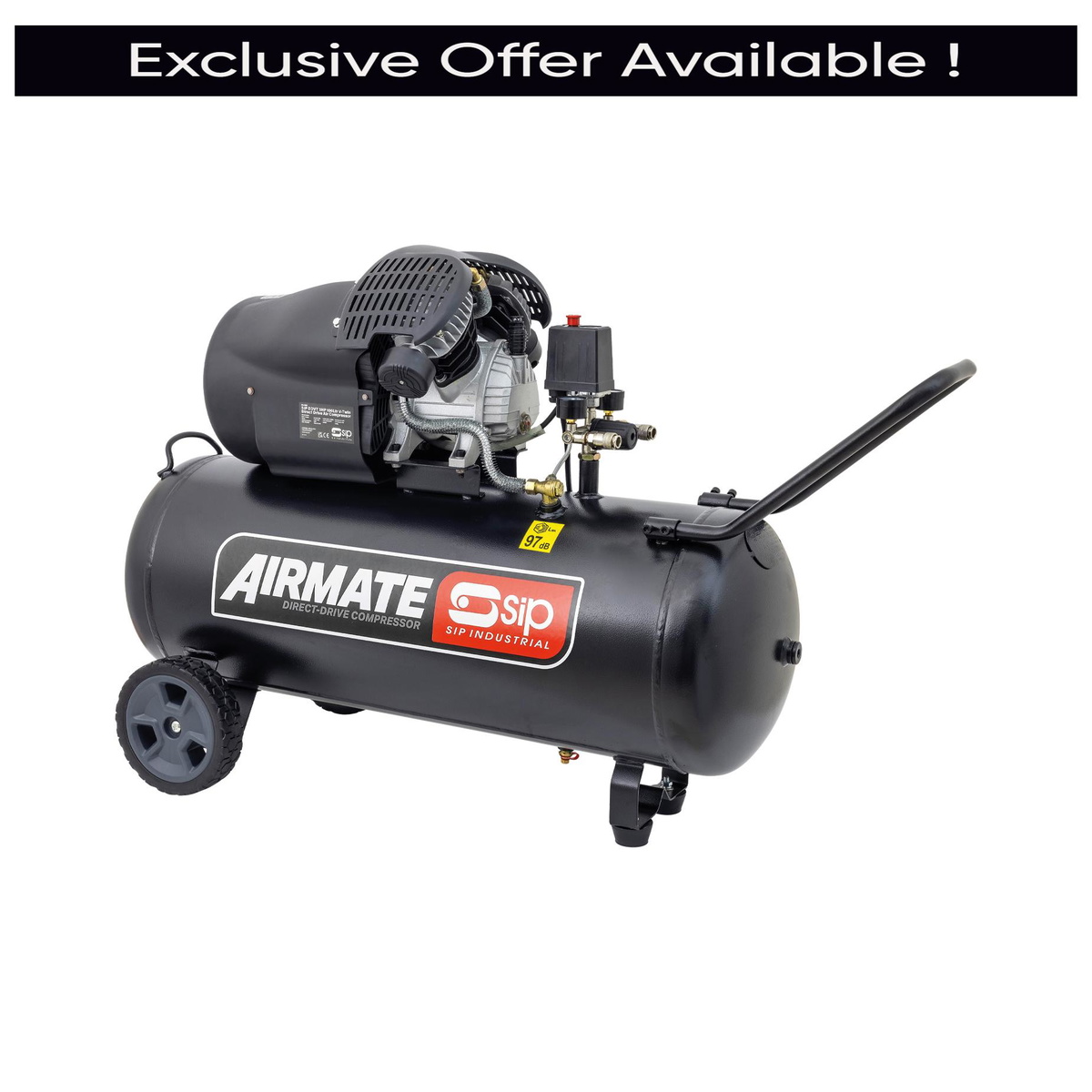

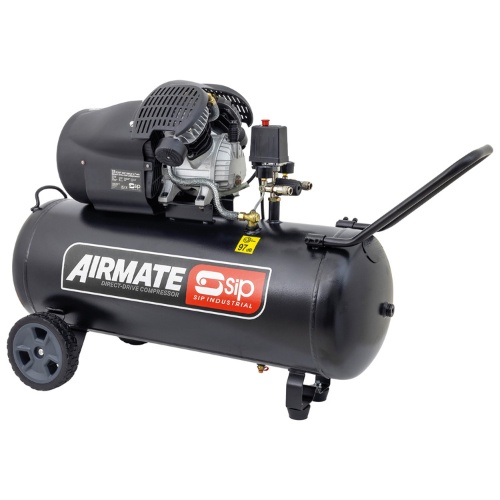

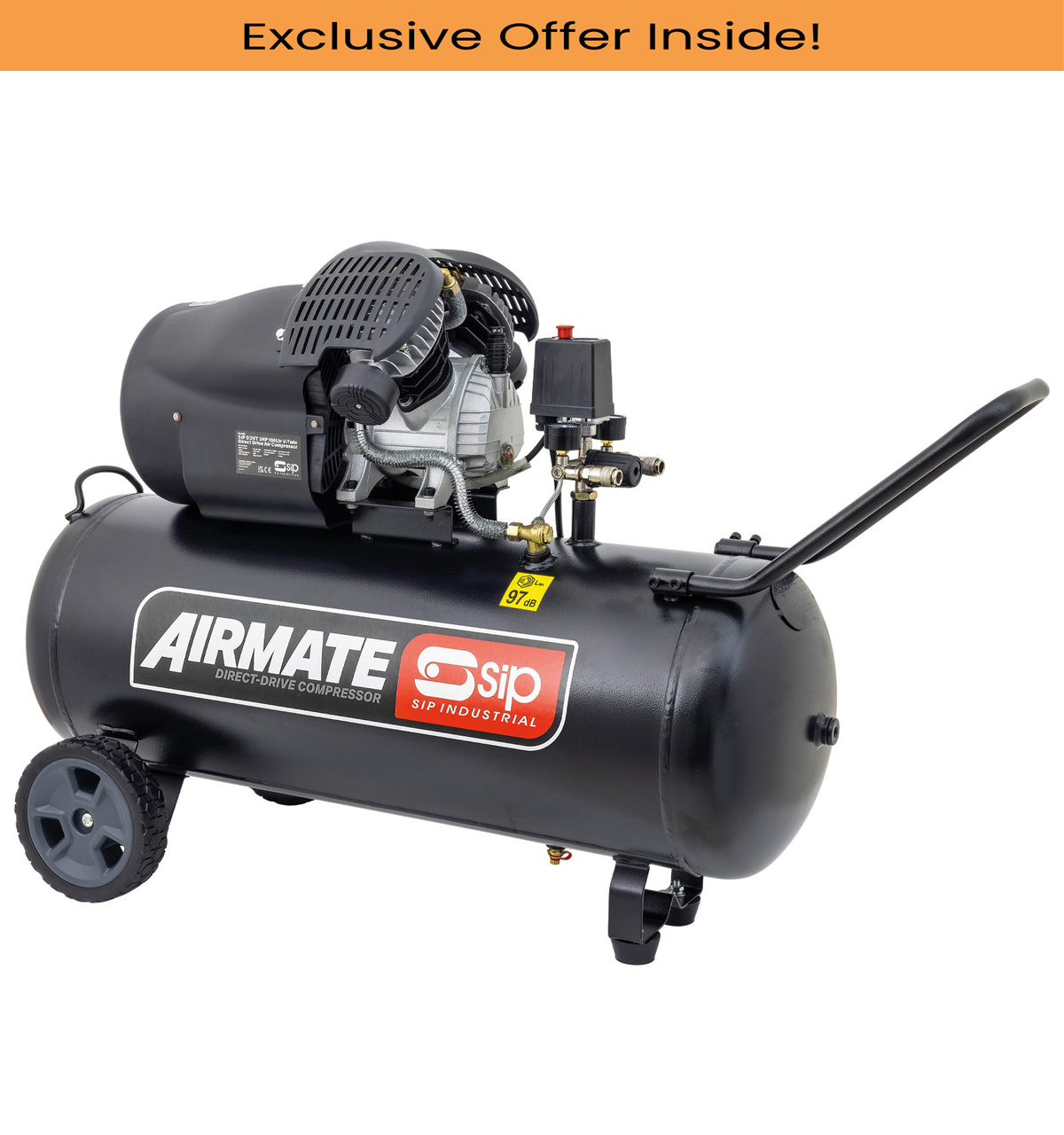

SIP 06455 DDVT 3hp 100ltr V-Twin Direct Drive Compressor offers the same strong performance as the 50ltr DDVT model but with a larger 100ltr receiver for increased air storage. A 3hp (2.2kW) brushless induction motor on 230v 13A drives a V‑Twin aluminium pump delivering 14CFM (400ltr/min) piston displacement and 8CFM (226ltr/min) free air at up to 145psi (10bar). The V‑Twin layout improves efficiency and cooling while enhancing wear resistance, supporting long-term use in small to medium workshops and automotive settings. The 100ltr receiver maintains a more consistent supply for air tools and ring main systems with fewer cycles. Fixed and adjustable quick release air connectors offer flexible connection options, and built‑in tank and working pressure gauges with regulator simplify control. A pull handle and wheel‑mounted design ensure ease of movement. With 97dB(A) noise level, this SIP DDVT compressor is ideal where a portable yet higher‑capacity 3hp, 100L 10bar air source is required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 06455 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 3hp (2.2kW) |
| Receiver Size | 100ltr |
| Piston Displacement | 14CFM (400ltr/min) |
| Free Air Delivery (FAD) | 8CFM (226ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| Noise Level | 97dB(A) |
| Net Weight | 52.00kg |
| Gross Weight | 58.00kg |
| Product Dimensions | 770(H) x 1250(W) x 455mm(D) |
| Packaged Dimensions | 800(H) x 1080(W) x 385mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06245 V300/100 Vertical Direct Drive Compressor, Tank Capacity - 100 Litre, Max. Air Pressure - 8 Bar
£368.02
£360.80
2% OFF
Free delivery in UK Mainland
|
Sealey SAC10002 Air Compressor 100L V-Twin Oil Free Direct Drive 3hp
£422.56
£414.27
2% OFF
Free delivery in UK Mainland
|
NuAir MK285-50 CM2 TECH Piston Compressor, 1.8kW, 50 Litre, 10 Bar, 230V
£359.66
£352.61
2% OFF
Free delivery in UK Mainland
|
Sealey SAC10030VA 100L V-Twin Direct Drive Air Compressor 3hp
£332.72
£326.20
2% OFF
Free delivery in UK Mainland
|
Draper 65396 DIRECT DRIVE V-TWIN AIR COMPRESSOR, 100L, 2.2KW
£338.83
£332.19
2% OFF
Free delivery in UK Mainland
|
Sealey SAC10001S 100L Oil Free Low Noise Direct Drive Air Compressor 2 x 2hp
£404.98
£397.04
2% OFF
Free delivery in UK Mainland
|
Clarke Shhh Air 150/100 5.3cfm 100 Litre 1.37HP Compressor (230V)
£1,682.88
£1,649.88
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06245 | SAC10002 | S-FBDC4G4FPS593 | SAC10030VA | 65396 | SAC10001S | 04388 | 2320890 | AB900 |
| Input Supply | 230 | 230 | 230 | 230 | |||||
| Motor Power | 1.8 | 1800 | 2200W | 2.2 | 1020 | ||||
| Warranty | 24 | 12 | |||||||
| Maximum Pressure (bar) | 8 | 10 | 8 | 0 | 8 | 0 | 0 | ||
| Free AirDelivery (FAD) | 6.7 | 8 | 0 | 8 | 5.3 | 0 | |||
| Tank Size | 0 | 50 | 100 | 0 | 0 | 100 | 0 | ||
| Noise Level | 97 | 76 | 0 | 0 | 0 | 0 | 0 | ||
| Maximum Pressure (psi) | 116 | 145 | 116 | 0 | 116 | 116 | 0 | ||
| Air displacement | 9.2 | 14.6 CFM | |||||||
| Piston Displacement (CFM) | 10 | 13 | |||||||
| Piston Displacement (litres/min) | 283 | 368 | |||||||
| Show More | |||||||||
A. It is a three horsepower, one hundred litre V-twin direct drive compressor built for versatile, efficient air supply in workshops and automotive environments.
A. The compressor delivers fourteen cubic feet per minute piston displacement and eight cubic feet per minute free air delivery, suitable for more demanding air tools.
A. It supplies air up to one hundred and forty five pounds per square inch, approximately ten bar, from its large receiver.

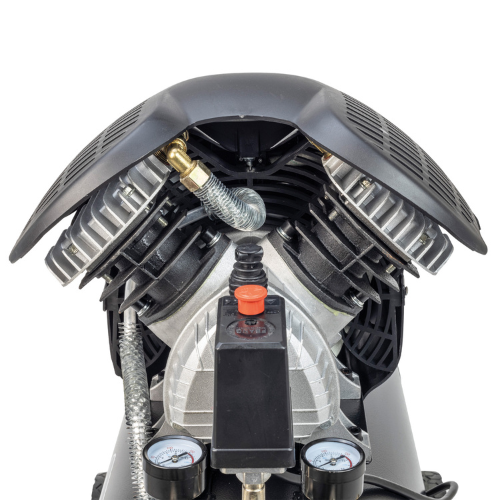

A. The V-twin design enhances efficiency and cooling when filling the receiver, while offering greater resistance to wear for sustained life.
A. It is perfect for general purpose applications in small to medium workshops and automotive settings that need a consistent, higher volume air supply.
A. The three horsepower induction motor provides smooth, efficient drive with reduced wear, enabling long life use under regular duty.
A. The larger tank helps maintain stable pressure up to ten bar during longer tool use or when several outlets are in operation.

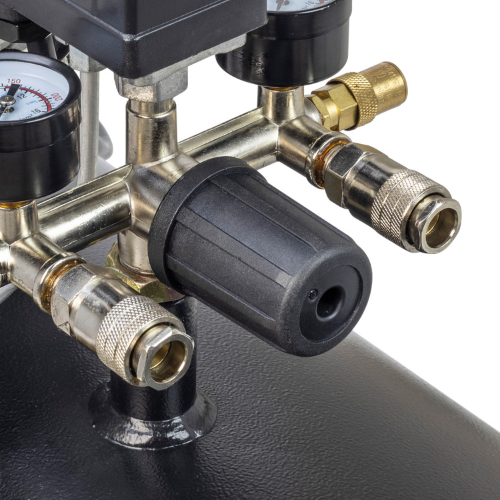

A. They accommodate different airlines or tools, making the compressor adaptable to varied setups and changing workshop requirements.

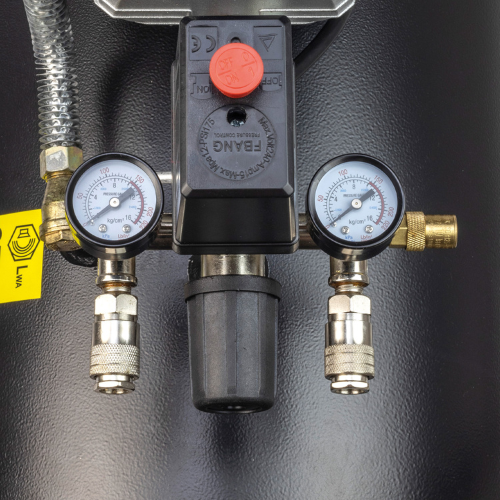

A. Built-in tank pressure and working pressure gauges with regulator allow precise control and clear visibility of system conditions.

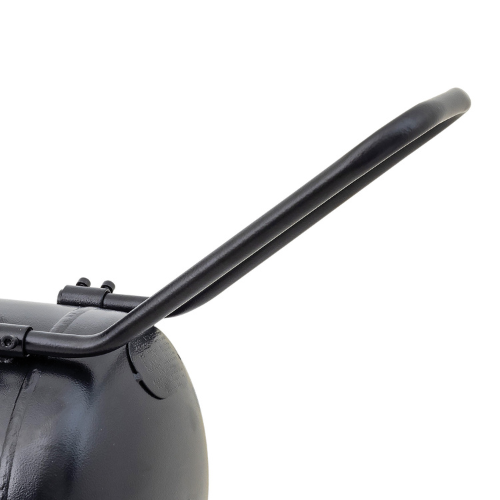

A. Its pull handle and wheel-mounted design let users easily move the compressor around small or medium workspaces.
A. The unit requires a two hundred and thirty volt, thirteen amp single phase supply, common in many workshops.
