Product Number: SAC3203B
Variations

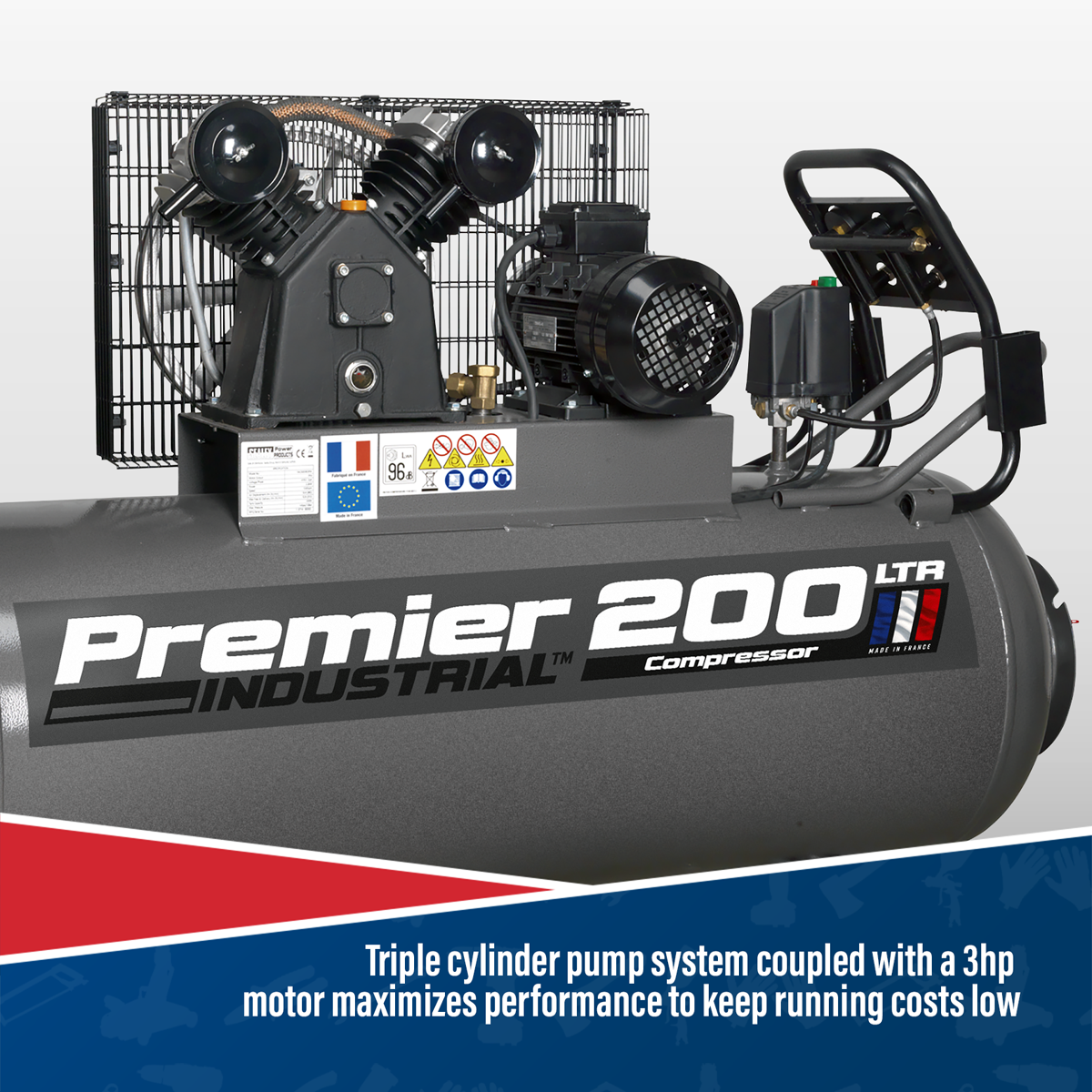

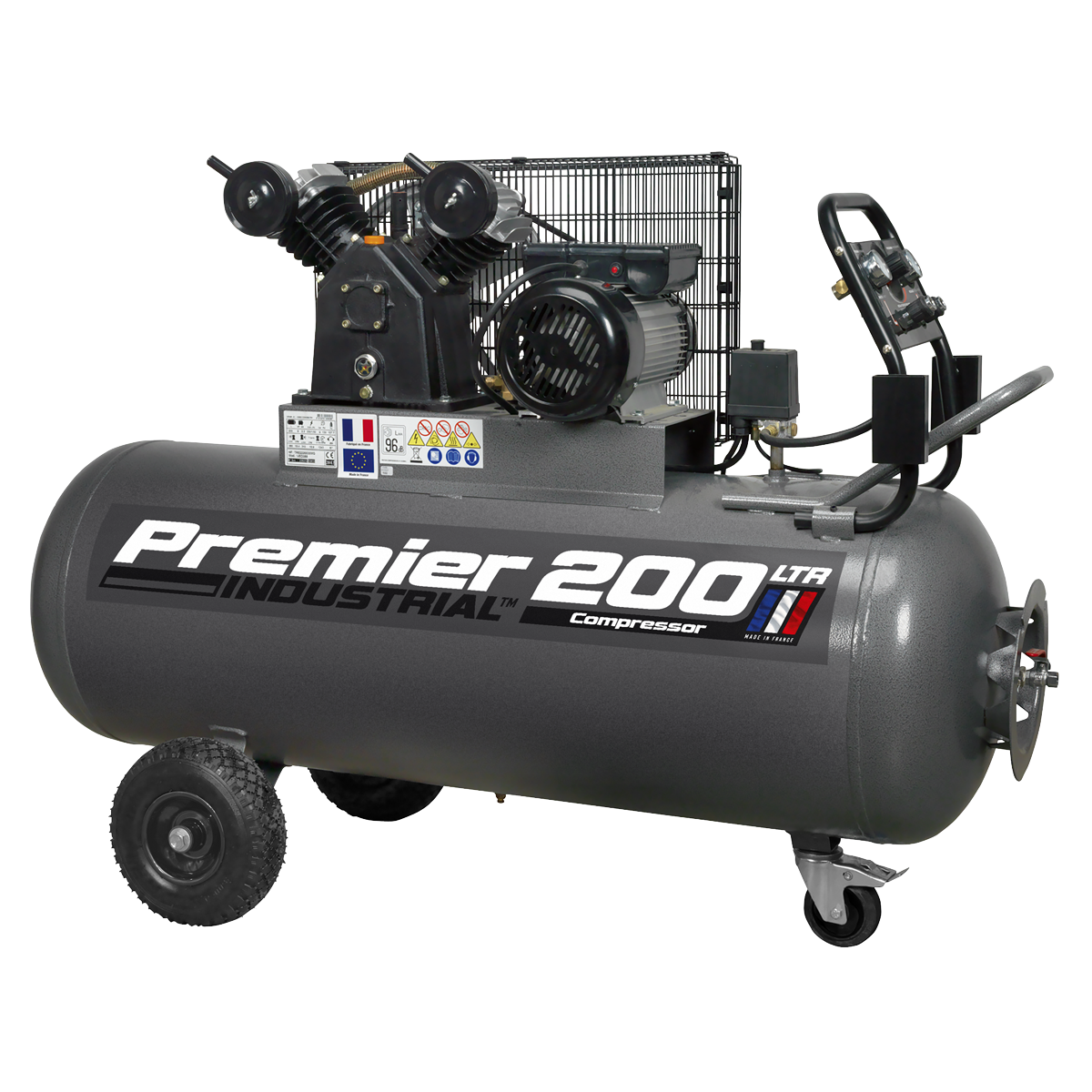

Sealey SAC3203B Air Compressor 200L Belt Drive 3hp with Front Control Panel is a high-spec single phase unit for professional workshops. A 3hp motor on 230V 16A with twin capacitors and centrifugal switch aids reliable start‑up. The belt‑driven pump uses full cast cylinders capped by alloy heads for improved heat dissipation and long life, delivering 13.4cfm (380L/min) displacement and 10.9cfm (310L/min) free air delivery at up to 145psi (10bar). A bespoke front control panel provides two outlets, one regulated and one direct, for flexible tool connection, while high‑flow quick release couplings support efficient air delivery. Heavy‑duty metal wheels with needle roller bearings and puncture‑proof tyres, plus a tank‑mounted hose reel and drain valve, make the compressor easy to handle and maintain. Part of Sealey’s Premier range, this 200L unit is built for everyday trade use where performance and usability both matter.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC3203B |
|---|---|
| Air Displacement cfm(L/min) | 13.4(380) |
| Brand | Premier |
| Maximum Free Air Delivery cfm(L/min) | 10.9(310) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 16A |
| Motor Output | 3hp |
| Nett Weight | 103kg |
| Oil Capacity | 1L |
| Outlet | High-Flow Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 200L |
| Size (W x D x H) | 1410 x 600 x 1020mm |
| Speed | 1243rpm |
| Supply | 230V/16A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SAC3203B.02 | Sealey SAC3203B.02 Air Compressor Pump 2 Cylinder - Spare Part | 1 Unit |
£446.26
£437.33
|
Add |
|
SAC3203B.03 | Sealey SAC3203B.03 Replacement Air Compressor Electric Motor 3hp 2.2kW 230V | 1 Unit |
£335.62
£328.91
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC42055B Air Compressor 200L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders
£2,099.89
£2,057.89
2% OFF
Free delivery in UK Mainland
|
Sealey SAC2203BLN Air Compressor 200L Belt Drive 3hp with Cast Cylinders Low Noise
£3,724.54
£3,650.05
2% OFF
Free delivery in UK Mainland
|
SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£787.63
£772.19
2% OFF
Free delivery in Channel Island
|
SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£902.23
£884.54
2% OFF
Free delivery in Channel Island
|
Draper 55313 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£626.24
£613.96
2% OFF
Free delivery in UK Mainland
|
SIP 05311 PX4-3/200B Belt-Driven Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£896.53
£878.95
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC42055B | SAC2203BLN | 05302 | 05308 | 55313 | 05311 |
| Warranty | 24 | 24 | ||||
| Capacity (L) | 200 | 200 | 200 | 200 | 200 | 200 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
| Power (kW) | 2.2 | 3 | 2.2 | 3 | ||
| Weight (kg) | 135 | 175 | 00 | 109 | ||
A. It is a 200 litre, 3hp belt-drive compressor with bespoke front control panel and hose reel.
A. It delivers 13.4cfm displacement and 10.9cfm maximum free air delivery, suitable for professional workshops.
A. The unit operates up to 145psi, approximately 10bar, covering many workshop pneumatic requirements.
A. They help ensure trouble-free starting, particularly under heavier loads, improving reliability.
A. It uses full cast cylinders capped with alloy heads, improving heat dissipation and service life.
A. It provides two outlets, one regulated and one direct, making it easy to select appropriate air supply.
A. Heavy-duty metal wheels with needle roller bearings and puncture-proof tyres support workshop movement.
A. Variants include SAC1103B, SAC1153B, SAC1203B, SAC1276B, SAC15030B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC2276B, SAC3103B and SAC3153B.
A. It keeps hose stored neatly on the tank, reducing trip hazards and clutter.
A. It operates on 230V single-phase with a 16A minimum rated supply.
A. It is designed for professional workshops needing reliable, high-quality compressed air with convenient controls.
