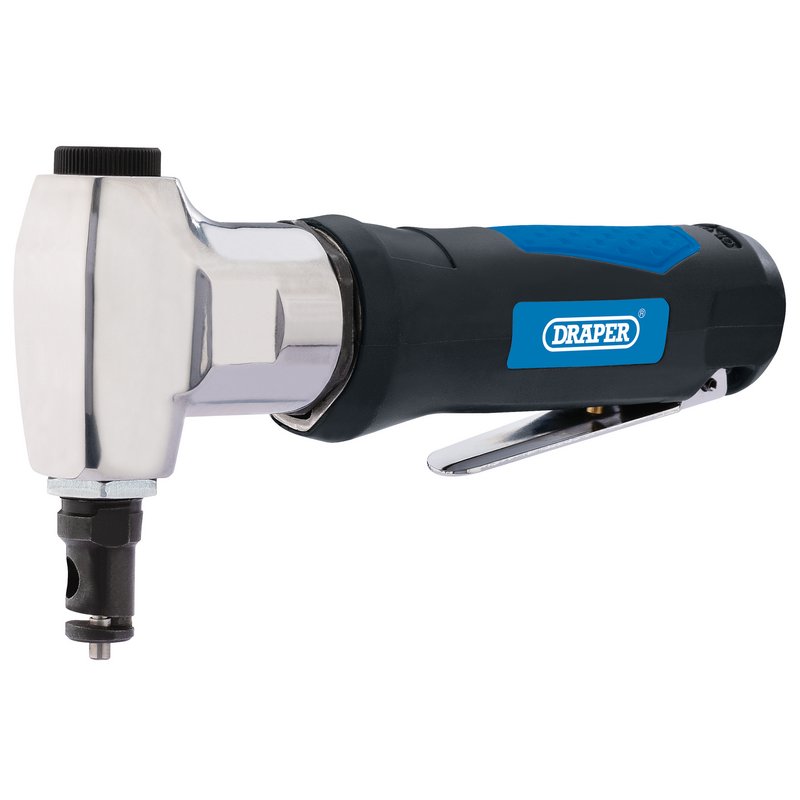

Cutting sheet steel with precision demands a tool that minimises material distortion and keeps edges clean — conditions where conventional cutting methods often fall short. The Draper 70835 Air Nibbler is manufactured from lightweight aluminium, a construction specifically chosen to reduce heat build-up and user fatigue during extended operation. It cuts through up to 1.5mm sheet steel with minimal distortion, producing smooth, burn-free edges suited to professional bodywork and fabrication tasks. The tool operates at 90 psi (6.2 bar) with an average air consumption of 9.8 cfm (278 L/min) and delivers 3,800 strokes per minute for efficient, consistent cutting performance. The air inlet is 1/4" BSP, compatible with a 3/8" internal diameter (10 mm) air hose, making integration into standard workshop compressor setups straightforward. At 195 mm in length and weighing just 0.83 kg, the tool is compact and easy to manoeuvre in tight spaces.For operator comfort, the tool features a soft grip handle to reduce vibration fatigue during use. The front exhaust directs spent air away from the workpiece and operator. The tool is supplied complete with an adjustable die — allowing varied cutting directions — and a 1/4" BSP connector, ready for immediate connection to a suitable air supply.
This air nibbler is manufactured from lightweight aluminium, designed to reduce heat and user fatigue. It will cut through up to 1.5mm sheet steel with minimal distortion, leaving edges smooth and burn free. For added user comfort there is a soft grip handle. The tool is supplied with an adjustable die and a 1/4" BSP connector.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Average air consumption | 9.8cfm (278L/min) |
|---|---|
| Air inlet | 1/4" BSP |
| Air hose size | 3/8" (10mm) |
| Strokes per min | 3800spm |
| Length | 195mm |
| Weight | 0.83 kg |
| Operating air pressure | 90psi (6.2bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
93550 | Draper 93550 BEARING 626Z | 1 Unit |
£11.15
£10.93
|
Add |
|
|
93558 | Draper 93558 BEARING 608Z | 1 Unit |
£11.15
£10.93
|
Add |
|
|
93567 | Draper 93567 BLADE | 1 Unit |
£10.56
£10.35
|
Add |
70835ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SA28 | 01616 | APT660 | T022550 | SA649 | 31759 |
| Free Speed(RPM) | 3000 SPM | 2500 | 3200 SPM | |||
| Air Consumption(CFM) | 4 | 6 | 3.5 | 4 | ||
| Tool Type | Nibbler | Nibbler | Nibbler | Nibbler | Nibbler | |
| Hose Length | 4.1 | |||||
A. The Draper 70835 Air Nibbler is designed to cut through up to 1.5mm sheet steel with minimal distortion, leaving edges smooth and burn free.
A. The tool requires an operating air pressure of 90 psi (6.2 bar), with an average air consumption of 9.8 cfm (278 L/min).
A. The air inlet is 1/4" BSP. A 3/8" internal diameter (10 mm) air hose is required.
A. The tool is supplied with an adjustable die for varied cutting directions and a 1/4" BSP connector.
A. The tool is manufactured from lightweight aluminium to reduce heat and user fatigue, and features a soft grip handle for added comfort during use. It weighs 0.83 kg and measures 195 mm in length.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
