Product Number: SA230

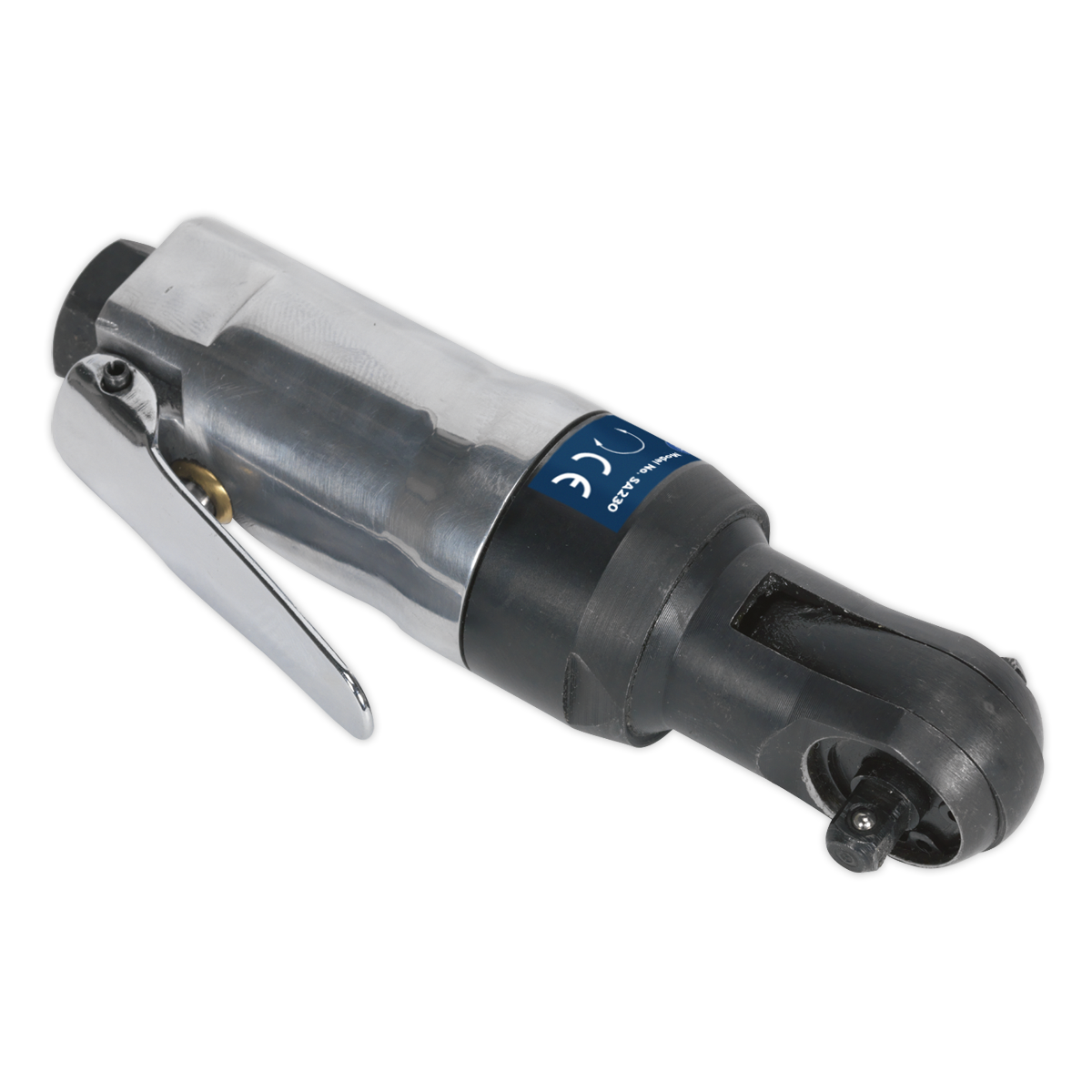

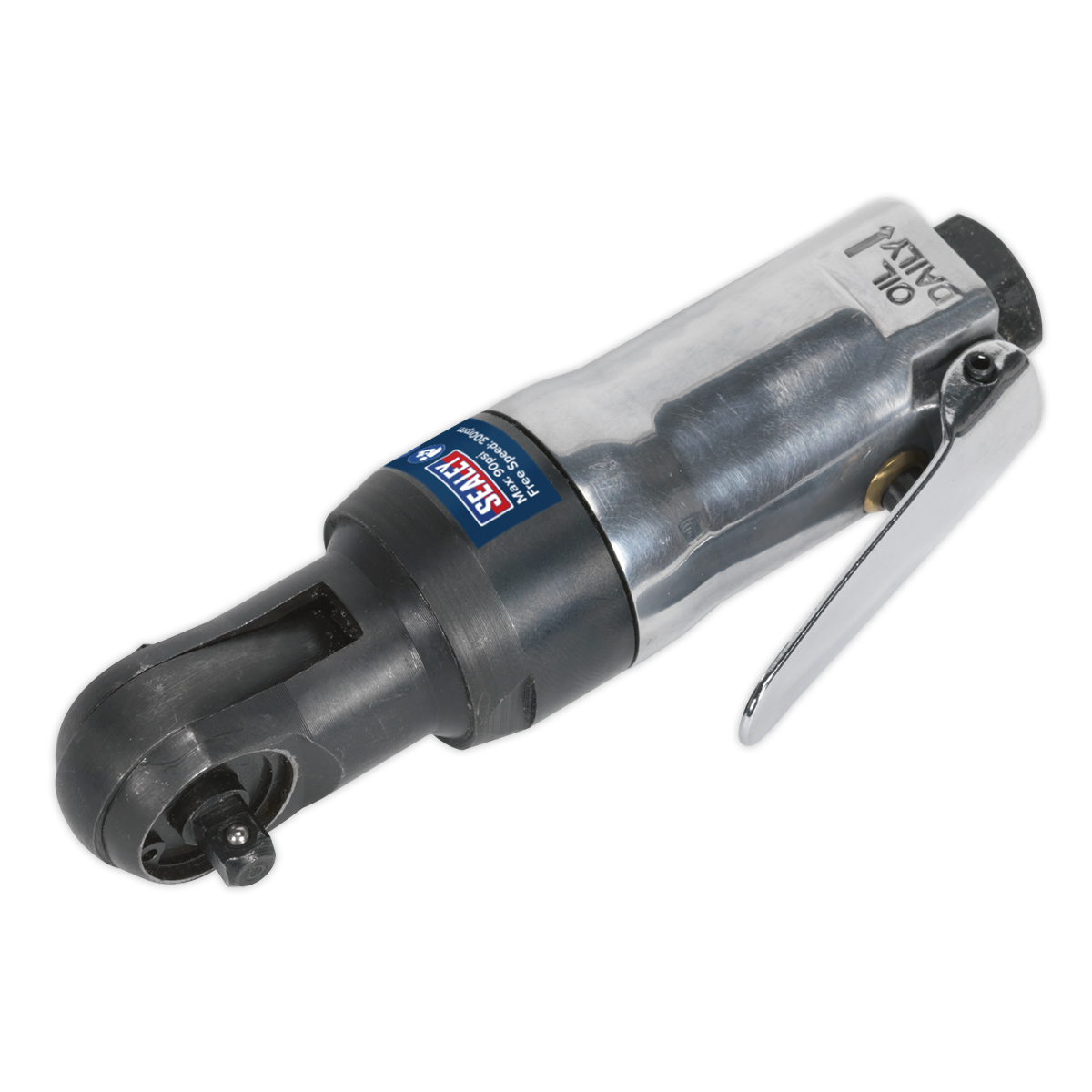

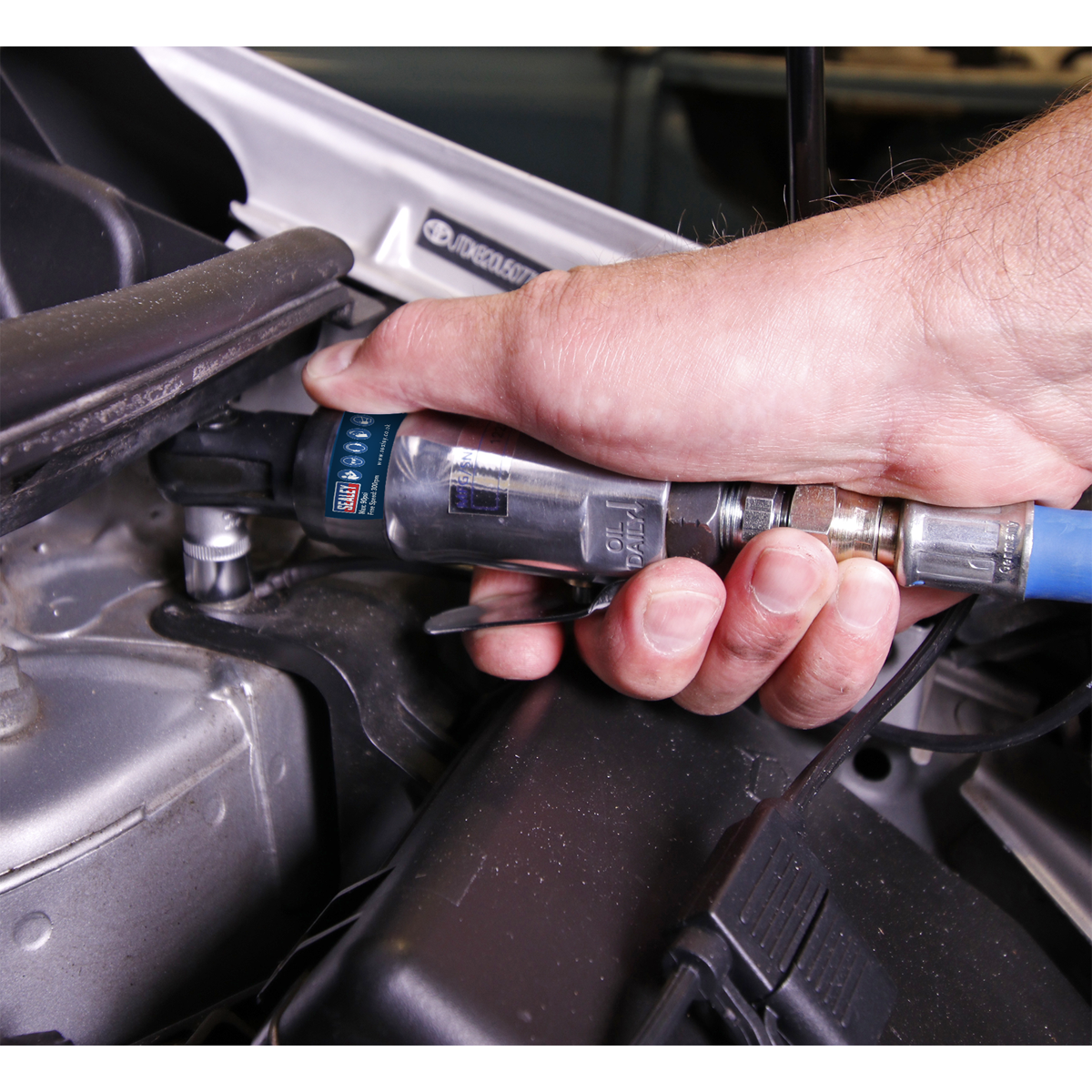

Accessing fasteners in tightly-packed engine compartments demands a tool that can get into spaces a standard ratchet simply cannot reach. The Sealey SA230 Super Stubby air ratchet wrench measures just 127mm in overall length, fitting comfortably in the palm of the hand and allowing work in confined areas where larger tools cannot operate. The 1/4" square drive delivers a maximum torque of 20lb.ft (27Nm) at a free speed of 300rpm, with an operating pressure of 90psi and air consumption of 3cfm via a 1/4" BSP inlet. The hardened steel anvil ensures durability under regular use, while the twist-reverse mechanism provides straightforward directional changes without repositioning. A rear exhaust with baffle reduces noise during operation, with noise power and pressure rated at 102/91dB(A). Vibration is measured at 2.5m/s² with an uncertainty value of 0.078m/s².
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SA230 |
|---|---|
| Air Consumption | 3cfm |
| Brand | Sealey |
| Drive | 1/4"Sq |
| Free Speed | 300rpm |
| Inlet Size | 1/4"BSP |
| Length | 127mm |
| Maximum Torque | 20lb.ft(27Nm) |
| Nett Weight | 0.36kg |
| Noise Power/Pressure | 102/91dB(A) |
| Operating Pressure | 90psi |
| Vibration/Uncertainty | 2.5/0.078m/s² |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 47568 Soft Grip Reversible Air Ratchet, 3/8" Sq. Dr.
£88.56
£86.82
2% OFF
Free delivery in UK Mainland
|
Draper 65034 Storm Force® Air Ratchet with Composite Body, 1/2" Sq. Dr.
£46.01
£45.11
2% OFF
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GSA635 | GSA634 | 65018 | 47568 | T022970 | 65034 |
| Type | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche | Air Ratchet Wrenche |
| Drive Size (Inch) | 3/8 | 1/4 | 1/4 | 3/8 | 1/2 | 1/2 |
| Free Speed | 180rpm | 180rpm | 200 rpm | 150 rpm | 160 rpm | |
| Length (mm) | 185 | 185 | 10 | 254 | 10 | |
| Torque Range (Nm) | 27 | 27 | 68 | 70 | 90 | |
| Weight (kg) | 56 | 56 | 1.2 | 1.1 | 1.4 | |
A. The SA230 features a 1/4" square drive.
A. The overall length is 127mm, making it an ultra-compact tool that fits in the palm of the hand.
A. The maximum torque is 20lb.ft (27Nm).
A. The SA230 operates at 90psi with an air consumption of 3cfm.
A. The inlet size is 1/4" BSP.
A. The free speed is 300rpm.
A. Yes, it features a rear exhaust with baffle to reduce noise during operation. Noise power and pressure levels are rated at 102/91dB(A).
A. The SA230 uses a twist-reverse mechanism for changing direction.
A. Vibration is rated at 2.5m/s² with an uncertainty value of 0.078m/s².
