Product Number: Grammer MSG20 Narrow
Variations

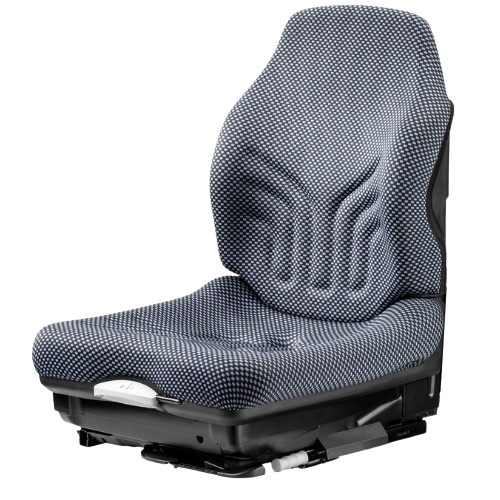

The Grammer MSG20 Narrow seat is compact with rapid weight adjustment for forklifts and small diggers where space is at a premium. Available in PVC as standard - please call for other options.
Quickly adjustable for healthy sitting, the operation of the seat is designed to be as easy as possible to offer maximum comfort to changing drivers.
Product Features:
| Mounting / rail centres | Not stated by manufacturer |
|---|---|
| Slide rail travel | Not stated by manufacturer |

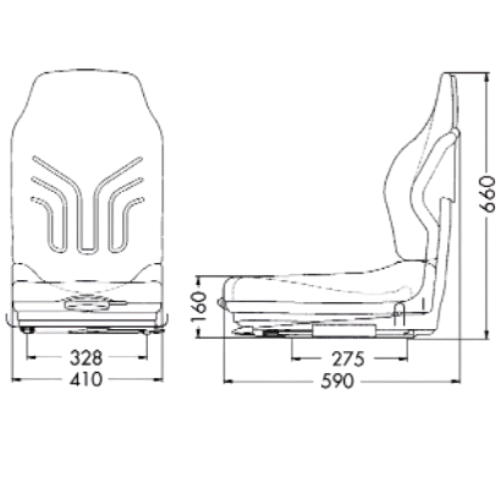

| Seat width | 410 mm |
| SIP (ISO 5353) | Not stated by manufacturer |
| Bracket / fitting | Not stated by manufacturer |
| Suspension type | Mechanical suspension |
| Compressor / voltage | n/a (no compressor) |
| Suspension stroke | 60 mm |
| Weight adjustment | 50 - 130 kg |
| Height adjustment | Not stated by manufacturer |
| Fore/aft adjustment | 150 mm |
| Backrest | Adjustable backrest angle |
| Trim | Not stated by manufacturer |
| Standard features | Not stated by manufacturer |
| Optional features | Armrests foldable 54 x 300 mm; Document box; Static belt; Retractor belt; Seat heating |
| Standards / compliance | Not stated by manufacturer |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Grammer MSG 20 Narrow.pdf
|
Open Now |
Standard Delivery: £7.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | MSG65/521 | US US20 |
| Machine Type | Forklift & Materials Handling | Forklift & Materials Handling |
| Suspension | Mechanical | Mechanical |
| Max Operator Weight | Over 150kg | Up to 120kg |
| Trim | Not stated | Fabric |
| OPS Switch | No | Yes |
A. The manufacturer does not publish mounting centres for the Grammer MSG20 Narrow. Measure your existing seat's bolt spacing and compare with your machine before ordering. Suited applications: forklift & materials handling; construction & plant.
A. An operator presence switch is available as an option on this model - specify it when ordering if your truck's control circuit requires one. Switch wiring (normally open/closed) and connectors vary by truck - match to your machine's circuit.
A. The manufacturer states a weight adjustment range of 50 - 130 kg. Set the suspension to the operator's weight for correct ride and vibration performance.
A. Choose Narrow (~410mm class) for reach trucks and tight cabs; the standard MSG20 where width allows.
A. The Grammer MSG20 Narrow uses mechanical suspension with 60 mm of travel. Suspension isolates the operator from machine vibration; set it to the operator's weight where adjustment is provided.
