Product Number: 02-022
The CCL 02-022 is a 12V normally open contact mini relay featuring integrated resistor protection, designed for use as a general-purpose switching component in automotive, commercial vehicle, and light electrical circuits.
At its core, the 02-022 operates as a normally open contact relay rated for a continuous load of 40A at closed contact, with a peak closed-contact load capacity of 80A, making it well suited to higher-demand switching applications where brief surge currents are a consideration. The built-in resistor protection suppresses voltage spikes generated when the relay coil de-energises, helping to protect sensitive electronic components and control modules in the same circuit.

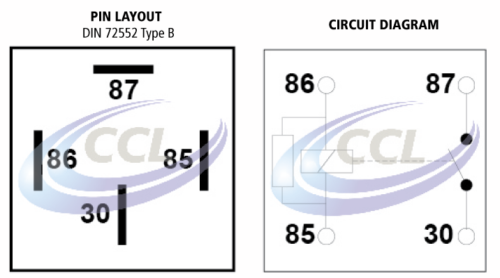

The relay is fitted with four terminals, each accepting a 6.3mm blade connector, providing a secure and widely compatible connection interface. The compact mini relay form factor is consistent with standard automotive relay housings, allowing straightforward installation in relay boxes, fuse boards, and custom wiring harnesses across a broad range of 12V electrical systems.
No specific vehicle fitment data is available for this SKU at present. Suitability should be confirmed by matching the rated voltage (12V), terminal configuration (4 x 6.3mm), and load requirements to the intended application before installation.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 4 Pin normally open contact Mini Relay with Resistor protection |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 4 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-022B |
A. The 02-022 is rated for a continuous closed-contact load of 40A and a peak closed-contact load of 80A at 12V.
A. The 02-022 uses a normally open contact configuration, meaning the circuit is open at rest and closes when the relay coil is energised.
A. The integrated resistor protection suppresses the voltage spike produced when the relay coil is de-energised, helping to safeguard other electronic components and control units connected to the same circuit.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
