Product Number: 02-024B
The CCL 02-024B is a 12V changeover relay with built-in resistor protection, designed for vehicle electrical circuits that require reliable switching with coil-spike suppression. The moulded bracket is integrated into the relay body for straightforward, secure mounting in the vehicle's electrical bay.

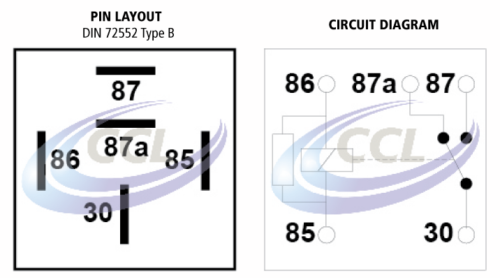

The relay operates on a 12V supply and features five 6.3 mm terminals in a changeover configuration, allowing both normally-open and normally-closed switching in a single unit. Continuous load ratings are 40A on the normally-open circuit and 30A on the normally-closed circuit, with peak load capacity of 80A and 60A respectively - providing headroom for the inrush currents common in automotive and commercial vehicle electrical systems.
The resistor protection built into this relay suppresses the voltage spike generated when the coil de-energises, helping to protect sensitive control modules, ECUs, and other solid-state components in modern vehicle electrical architectures. This makes the 02-024B a considered choice wherever a standard relay is being fitted alongside or upstream of electronic control units.
The relay is a standalone general-purpose component. No vehicle fitment data is currently registered against this SKU; please verify suitability against your circuit's voltage, load, and terminal requirements before installation.
The CCL 02-024B is supplied as a single unit. Manufacturing origin is stated in the product technical specifications.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Mini Relay with Resistor protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED / SWITCHED) | 60A |
| BRACKET TYPE | Moulded Plastic |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-024 |
A. The 02-024B is rated at 40A continuous load on the normally-open circuit and 30A continuous load on the normally-closed circuit. Peak load capacity is 80A (normally-open) and 60A (normally-closed).
A. The CCL 02-024B is a 12V relay, intended for use in 12-volt electrical systems.
A. It is a changeover relay, providing both normally-open and normally-closed switching through five terminals, which allows it to control two separate circuit paths from a single relay.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
