Product Number: 02-047

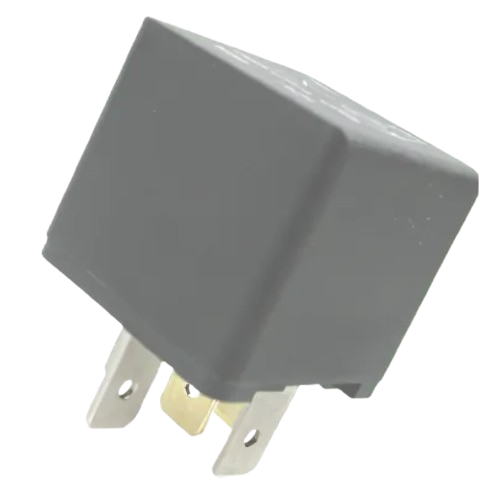

The CCL 02-047 is a 24-volt, 5-pin changeover relay with resistor protection, designed as a direct-fit replacement compatible with Durite. Built for demanding commercial and industrial electrical systems, it is suited to applications where reliable switching and built-in resistor protection against voltage spikes are essential requirements.
The relay operates at 24V and is equipped with five terminals, each rated at 6.3mm, giving a secure and standardised connection to the vehicle harness. Continuous load ratings are 20A on the open circuit and 15A on the closed circuit, with peak load capacity of 40A and 30A respectively. The integrated resistor protection guards connected circuits and control modules against back-EMF - a critical feature in high-cycle switching environments found in commercial vehicles and plant equipment.

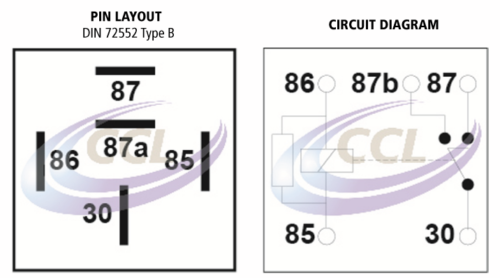

As a changeover relay, the 02-047 supports both normally-open and normally-closed switching configurations, making it a versatile choice for a wide range of 24-volt electrical control circuits. Its compact mini-relay footprint suits confined relay board spaces common on trucks, buses, and heavy plant machinery. No variant siblings are listed for this SKU.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 5 Pin Changeover Mini Relay With Resistor Protrection. |
|---|---|
| Voltage | 24 |
| Continuous Load (Open) | 20A |
| Continuous Load (Closed / Switched) | 15A |
| Peak Load (Open) | 40A |
| Peak Load (Closed / Switched) | 30A |
| Bracket Type | None |
| Terminal Sizes | 5 X 6.3Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-047 is a 24-volt, 5-pin relay. Each terminal is rated at 6.3mm, providing a standardised fit with compatible relay sockets and harness connectors.
A. On the open circuit, the relay is rated at 20A continuous and 40A peak. On the closed circuit, it is rated at 15A continuous and 30A peak.
A. The integrated resistor protection suppresses back-EMF generated when the relay coil de-energises, helping to protect connected control modules and sensitive electronics from voltage spikes during switching.
