Product Number: 02-020B
The CCL 02-020B is a 12V mini relay with diode protection, designed as a normally open contact relay for automotive, commercial vehicle, plant, and agricultural electrical systems. Rated for continuous loads of 40A and peak loads of 80A, it is built to handle demanding switching applications where reliable circuit protection is essential.
The relay features a moulded bracket for straightforward panel or chassis mounting, four 6.3mm terminals providing secure and standardised wiring connections, and integral diode protection to suppress voltage spikes generated when the relay coil de-energises - a characteristic that helps protect sensitive electronic components elsewhere in the circuit.

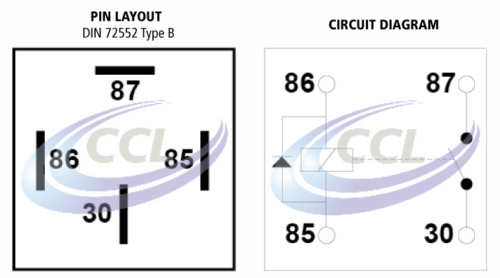

With its normally open contact configuration, the relay remains in the open state until energised, making it suitable for switching auxiliary loads such as lighting, horns, fans, and other 12V electrical accessories. The four-pin layout is widely compatible with standard automotive relay sockets and wiring harnesses.
CCL offers additional relay variants to suit different switching requirements. Where diode protection is not required, or where normally closed configurations are needed, cross-reference the CCL relay range to identify the correct specification for the application.
The 02-020B is supplied as a single unit. No vehicle-specific fitment data is available for this product; suitability should be confirmed against the circuit requirements of the installation.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 4 Pin Normally Open Contact Mini Relay With Diode Protection. |
|---|---|
| Voltage | 12 |
| Continuous Load | 40A |
| Peak Load | 80A |
| Bracket Type | Moulded Plastic |
| Terminal Sizes | 4 X 6.3Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Mini Relay - Diode Protection, Open Contact, 4 Pin, 12V, CCL - 02-020B
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-020 |
A. The CCL 02-020B is rated for a continuous load of 40A and a peak load of 80A at 12V.
A. The 02-020B uses a normally open contact configuration, meaning the circuit remains open until the relay coil is energised.
A. The integral diode suppresses voltage spikes produced when the relay coil is de-energised, helping to protect sensitive electronic components connected elsewhere in the circuit.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
