Product Number: 09581600
Additional Information

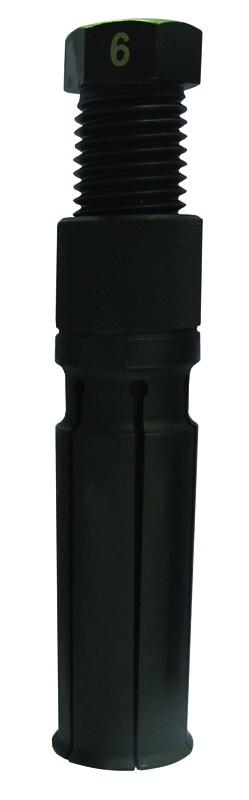

The split collet is pushed into the centre of the bearing and then expanded
via the hex nut on the end of the collet until a secure grip is achieved.
The slide hammer is then attached providing the necessary extracting force.
Internal Spread Min - Max: 38-50mm
No.6 - stamped on extractor
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 220 x 50 x 50 mm |
|---|---|
| Product Weight | 1.181 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 081255170 | 081265170 | 08783370 | 08783470 | 081275570 |
| Type | Spare Part | Spare Part | Spare Part | Spare Part | Spare Part |
| Size | 72mm | 85mm | 90mm | ||
| Format | Set | Set | Set | ||
| Pack Qty | 2 | 2 | 5 | ||
| Size Range | 51-100mm | 51-100mm | 51-100mm | ||
A. It is a split collet internal extractor for pulling bearings or bushes with internal diameters from 38 mm to 50 mm.
A. The split collet is inserted, then expanded by tightening a hex nut until it securely grips the bore.
A. A compatible slide hammer is attached, delivering pulling force to remove the bearing or bush.
A. When only the inner bore is accessible and there is no lip to pull from externally.
A. It is about 220 x 50 x 50 mm and weighs roughly 1.181 kg.
A. Over-expanding can damage the bore or the tool and may reduce stretching life of the collet.
A. That the collet is gripping evenly and securely, and that threads are in good condition.
A. Removing swarf and dirt preserves thread quality and ensures smooth collet expansion and contraction.
A. It reduces off-axis forces that might jam the collet or damage the housing.
A. Cracked jaws, stripped threads or inability to hold securely suggest it should be taken out of service."
