Product Number: 2106-500-L10

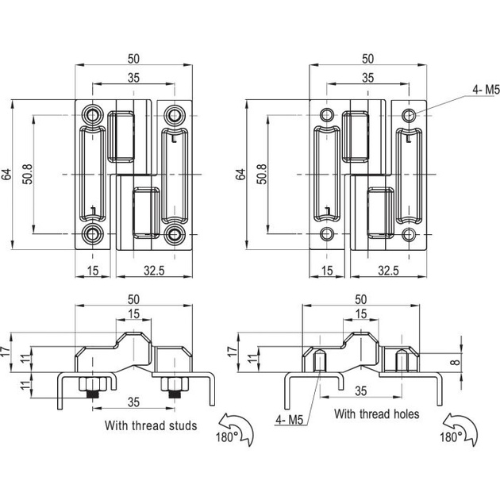

The 2106-500-L10 is a Model 2106 lift-off hinge finished in black textured powder coat, measuring 64x50mm with M5 threaded holes. Constructed from die-cast zinc alloy with a stainless steel 316 pin, this hinge is suited to applications where a removable-leaf, handed configuration is required. The handed orientation allows for directional installation, and the lift-off design enables panel or door removal without unfastening fixings. The black textured powder-coated finish provides both corrosion resistance and a consistent industrial appearance. Axial load capacity is rated at 437kg per hinge, with a radial load capacity of 387kg per hinge, making this hinge suitable for demanding enclosure and panel applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 64 × 50 mm |
| Axial Load Capacity | 437 kg per hinge |
| Radial Load Capacity | 387 kg per hinge |
| Model | 2106 |
| Operating | Left Hand |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Lift Off Hinge with Threaded M5 Holes, Black Powder Coated Finish, Left Hand Operating, Size 64x50mm, Metrol - 2106-500-L10
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2101-500-10 | 2101-500-30 | 2101-500-316 | 2101-500L-316 | 2101-500R-316 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 50x50mm | 50x50mm | 50x50mm | 50x50mm | 50x50mm |
| Material | Stainless steel | Stainless steel | Stainless SS316 | ||
| Finish | Chrome | ||||
A. The hinge body is constructed from die-cast zinc alloy with a stainless steel 316 pin. The finish is a black textured powder coat.
A. The Model 2106 hinge is rated at 437kg axial load capacity and 387kg radial load capacity per hinge.
A. The hinge measures 64x50mm and uses M5 threaded holes for mounting.
A. The 2106-500-L10 is a handed hinge, meaning it is orientation-specific and must be selected for the correct hand of installation.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
