Product Number: 1401-20-30.KD

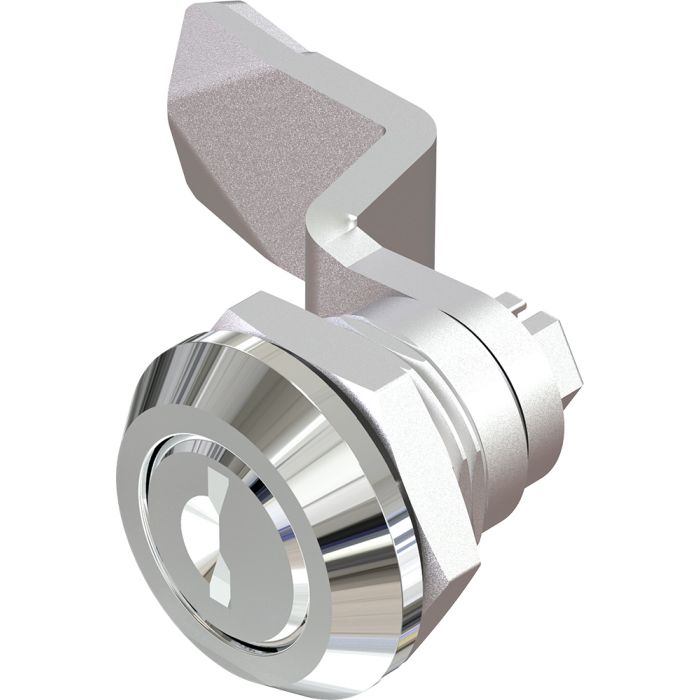

The Metrol 1401-20-30.KD is a quarter turn key retaining lock from the 1401 series, fitted with a KEY333 key locking mechanism and supplied with keys. Finished in bright chrome, this lock is constructed in die cast zinc with a mild steel zinc plated cam sold separately, and is suited to panel-mounted enclosure and cabinet applications requiring secure key-operated quarter turn access.
The lock features a die cast zinc alloy handle and housing in bright chrome finish. The KEY333 barrel accepts randomly generated key codes, providing individual keying for security-sensitive installations. The hinge carries IP65-grade weather sealing, confirming resistance to dust ingress and low-pressure water jets, making it suitable for use in demanding workshop and industrial enclosure environments.
The 1401-20-30.KD accepts a panel cutout of 20.1 x 20.1 mm and is compatible with panel thicknesses from 1 mm to 8 mm. Barrel height: 20 mm. A range of cam profiles are available separately to suit different panel depths and latching requirements. The locking unit is also available in stainless steel 316, stainless steel 304, black powder coated, and polyamide variants within the 1401 series.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 20mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1401 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1301 Non Locking T Handle Lock with 18mm Grip Height Black Textured Powder Coated
£11.74
£11.51
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1301-00-20 | 1301-00-30 | 1301-00-316 | 1301-10-20 | 1301-10-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 18mm | 18mm | 18mm | 18mm | 18mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The 1401-20-30.KD uses KEY333 key locking with keys supplied. Key codes are randomly generated, providing individual keying for each unit.
A. The lock requires a panel cutout of 20.1 x 20.1 mm and is compatible with panel thicknesses from 1 mm to 8 mm. The barrel height is 20 mm.
A. The 1401-20-30.KD carries an IP65 rating, confirming protection against dust ingress and low-pressure water jets.
A. The handle and housing are die cast zinc alloy with a bright chrome finish. The cam is mild steel, zinc plated, and is sold separately.
A. No — the cam is sold separately. A range of cam options is available to suit different panel depths and latching requirements.
A. Yes — the 1401 series is also available in black powder coated, polyamide, stainless steel 316, and stainless steel 304 variants.
