Product Number: 1242-824-10

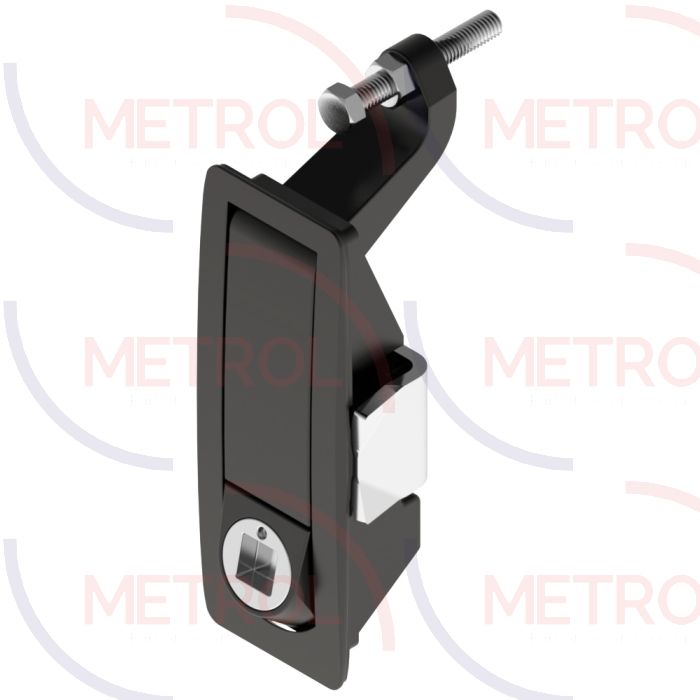

1242-824-10 — the Metrol 1242 is a square 8.5mm Railway Standard lever latch finished in black powder coat, manufactured in die cast zinc and rated IP40. It is purpose-built to securely close and hold panels, doors, and covers while still allowing quick, controlled access when needed.
Latches are access hardware components designed to securely close and hold panels, doors, and covers while still allowing quick, controlled access when needed. Commonly used in industrial equipment, electrical enclosures, cabinets, and machinery housings, they help prevent accidental opening from vibration or handling and support repeatable day-to-day operation. Available in multiple styles and mounting options, latches can be selected to match different access frequency, security, and installation requirements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 8.5mm (Railway Standard) |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |

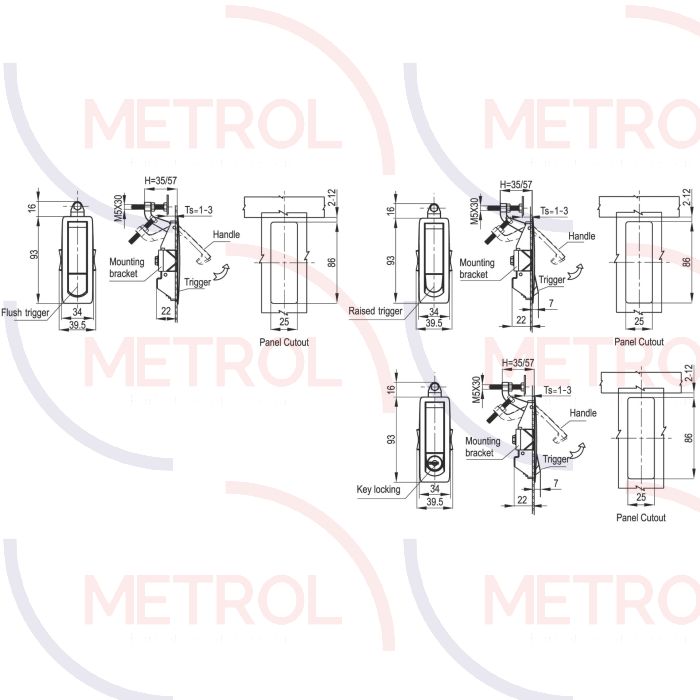

| Panel Cutout | 25x86mm |
| Panel Thickness | 1 - 3mm |
| Grip Range | 1-24mm |
| IP Rating | IP40 |
| Model | 1242 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1245-614-201 | 1256-00-2-20 | 1256-00-2-30 | 1256-00-2-316 | 1256-00-2-PAB |
| Type | Lever Latch | Lever Latch | Lever Latch | Lever Latch | Lever Latch |
| Size | 8mm | 7mm | 7mm | 7mm | 7mm |
| Finish | Chrome | ||||
| Grip Range | 1-14mm | ||||
| Panel Thickness | 1-11mm | 2 - 7mm | 2 - 7mm | 2 - 7mm | 2 - 7mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The Metrol 1242 uses a Square 8.5mm (Railway Standard) lock type and is finished in black powder coat over a die cast zinc alloy body.
A. The Metrol 1242 requires a panel cutout of 25 x 86mm.
A. The Metrol 1242 accommodates a panel thickness of 1 to 3mm and a grip range of 1 to 24mm.
A. The Metrol 1242 is rated IP40, providing protection against solid objects greater than 1mm with no specific moisture protection.
A. The Metrol 1242 is covered by a 1-year guarantee.
A. Yes — the Metrol 1242 has been salt spray tested to over 300 hours.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
