Product Number: 54426

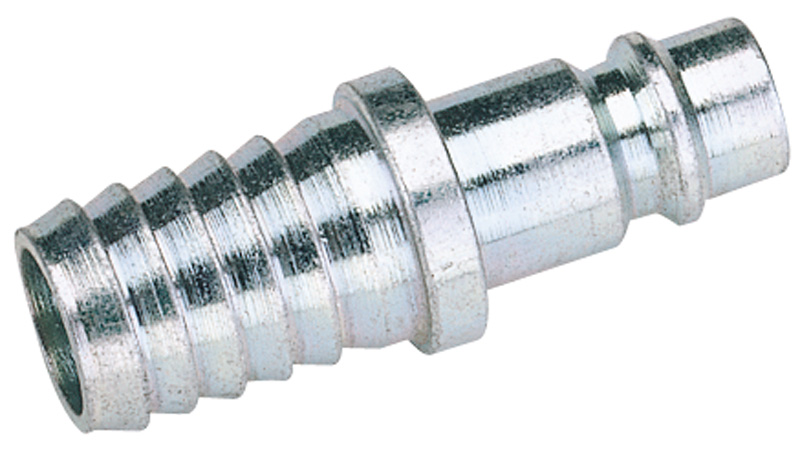

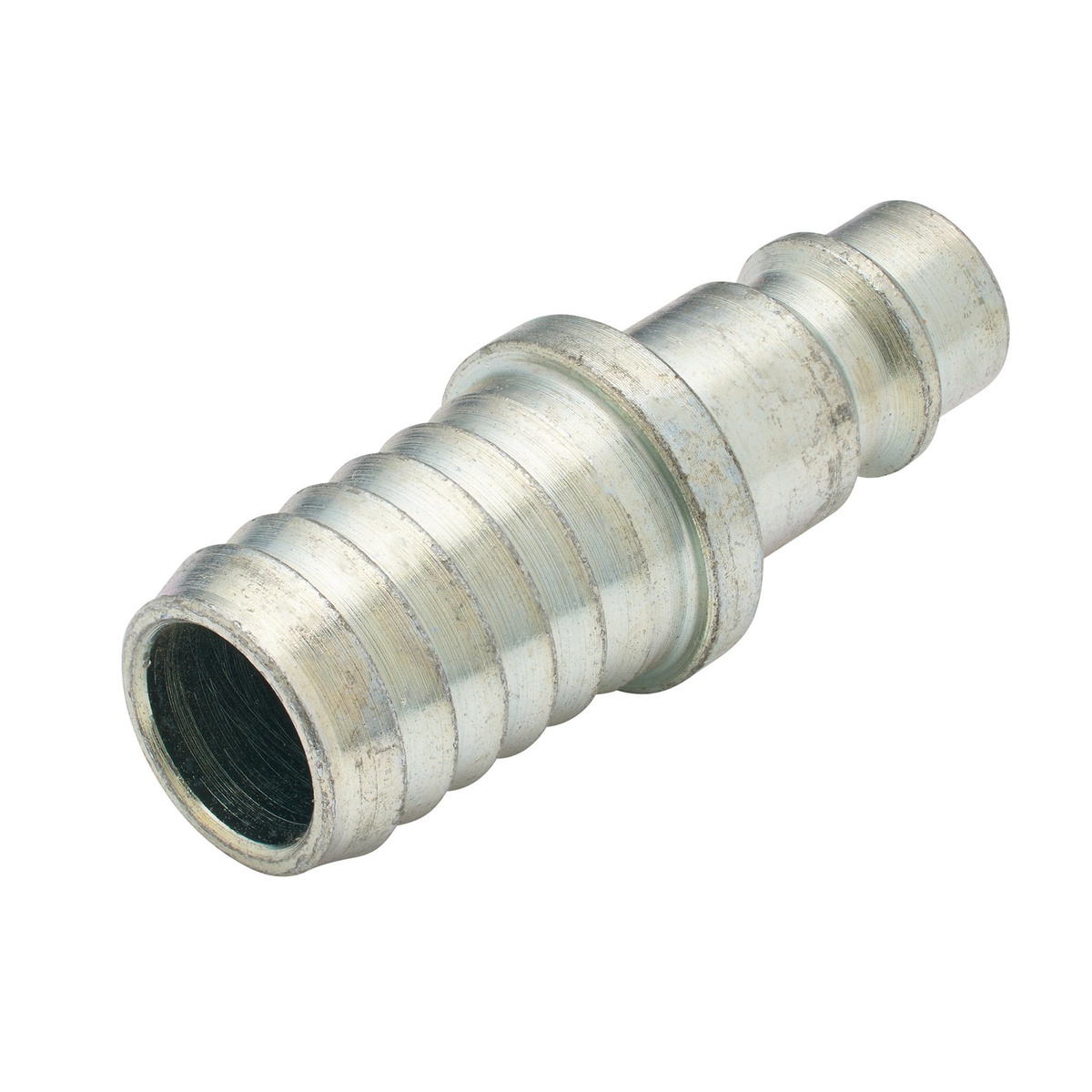

High-demand compressed air systems require fittings that can withstand continuous, heavy-duty use without compromising flow or reliability. The PCL Euro Adaptor Hose Tailpiece at 13mm is engineered specifically for heavy-duty, high-flow applications, connecting to most popular and European adaptor profiles including Cejn and Rectus formats, ensuring broad compatibility across professional workshop and industrial pneumatic setups. Constructed from hard-wearing steel and zinc passivated to significantly improve corrosion resistance, this tailpiece is built to endure the rigours of demanding workshop environments. It has been tested to over 1 million cycles, confirming long-term durability under regular operational pressure. The fitting delivers a flow capacity of 78cfm (2,200L/min) at 6 bar inlet with a 0.5 bar pressure drop, with a nominal flow diameter of 7.4mm. Maximum working pressure is 500psi (35bar), test pressure is 725psi (50bar), and maximum burst pressure is 2,030psi (140bar). The temperature range spans -40°C to 100°C, accommodating a wide variety of workshop and industrial conditions. Supplied individually as a sold-loose component, the Draper 54426 is a practical, high-specification replacement or addition fitting for professional pneumatic hose assemblies where performance and corrosion resistance are priorities.
For heavy duty high flow applications, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC6103 | AC6503 | AC6505 | AC6105 | 54423 |
| Type | Adaptor | Adaptor | Adaptor | Adaptor | Adaptor |
| Size | 6mm | ||||
| Family | PCL Airflow | Vertex | Vertex | PCL Airflow | Euro |
| Size Range | Up to 10mm | ||||
A. It connects to most popular and European adaptor profiles, including Cejn and Rectus formats, making it compatible with a wide range of professional pneumatic systems.
A. The maximum working pressure is 500psi (35bar). The test pressure is 725psi (50bar) and the maximum burst pressure is 2,030psi (140bar).
A. At 6 bar inlet with a 0.5 bar pressure drop, the fitting delivers a flow capacity of 78cfm (2,200L/min), with a nominal flow diameter of 7.4mm.
A. The fitting is rated for a temperature range of -40°C to 100°C, suitable for a wide variety of workshop and industrial environments.
A. It is constructed from hard-wearing steel and is zinc passivated to significantly improve corrosion resistance. It has been tested to over 1 million cycles for long-term reliability in heavy-duty applications.
A. It is sold loose as an individual unit — one PCL Euro Adaptor Hose Tailpiece, 13mm.
