Product Number: 1010MCB12-45
Yielding generously under load, this 10 x 10 mm conical buffer with an M5 x 12 mm male stud and a 45 Shore A soft rubber compound is engineered to deliver maximum vibration isolation where movement under load is a working requirement rather than a compromise. At its rated maximum load of 2.3 kg and deflection of 2.25 mm, it is suited to lighter assemblies and sensitive equipment where lower-frequency vibration absorption takes priority over restraint. Rubber-to-metal bonded construction gives the buffer its structural integrity whilst allowing the soft-grade compound to absorb and dissipate energy efficiently. The conical geometry makes this format equally appropriate for primary and secondary suspension duties on industrial vehicles as well as for cushioning machinery against impact shocks from external moving components. Because softer Shore grades yield more readily, they deliver better isolation at the low load levels this size is rated for, protecting fragile or precision-mounted components from transmitted vibration. Applications drawing on this buffer's compact dimensions and soft-grade compliance include agricultural equipment, elevators, construction equipment, commercial vehicles, and industrial machinery. Industries such as power generation, marine, railway and mass transit, automotive, and military and defence also employ conical buffers of this type. Mounts in this range may be loaded in shear, compression, or a combination of both. Custom options including stainless steel hardware and oil-resistant or high-temperature rubbers are available on request. This buffer is the smallest in the conical buffer range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 10 |
| Overall height H (mm) | 10 |
| Stud thread d | M5 |
| Stud length L (mm) | 12 |
| Max load (kg) | 2.3 |
| Deflection (mm) | 2.25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

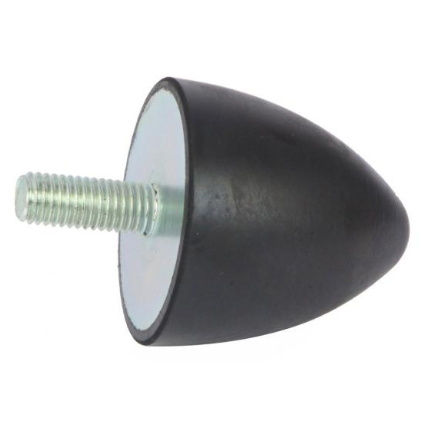

| PRODUCT NUMBER | 1010MCB12-70 | 2015MCB10-45 | 2024MCB18-45 | 3540MCB23-45 | 2015MCB10-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 10mm | 15mm | 24mm | 40mm | |
| Height | 15mm | ||||
| Size | 10x10mm | 20x15mm | 20x24mm | 35x40mm | 20x15mm |
| Deflection | 2.25 | 3.75 | 6.25 | 10 | 3.75mm |
| Diameter | 10mm | 20mm | 20mm | 35mm | |
| Diameter Range | Up to 10mm | 11-25mm | 11-25mm | 26-50mm | |
| Length Range | Up to 10mm | 11-25mm | 11-25mm | 26-50mm | |
| Shore Hardness | 70 | 45 | 45 | 45 | |
| Thread | M5 | M6 | M6 | M8 | M6 |
| Show More | |||||
A. The buffer body measures 10 mm diameter by 10 mm height (D x H). The male stud is M5 with a 12 mm stud length (d x L: M5 x 12).
A. The maximum load is 2.3 kg and the deflection under that load is 2.25 mm. The soft 45 Shore A compound gives greater deflection than harder grades, providing better vibration isolation at lighter loads.
A. Softer rubber grades yield more under load, which maximises vibration absorption and energy dissipation at lower load levels. The 45 Shore A grade is the right choice where isolation of vibration matters more than restraint, and where the equipment being mounted is light, compact, or sensitive to transmitted vibration.
A. Conical buffers in this family are used in agricultural equipment, construction equipment, elevators, commercial vehicles, and industrial machinery. Industries served include power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Conical buffers are used to cushion machinery against impact shocks from external moving components and are also employed for primary and secondary suspension of industrial vehicles. This buffer may be loaded in shear, compression, or a combination of both.
A. Yes. The same 10 x 10 mm body is available in 60 Shore A (1010MCB12-60) and 70 Shore A (1010MCB12-70). Larger conical buffers include the 2024MCB18 and 2015MCB10 series and the 100100MCB31, 100120MCB31, 10095MCB31, and 11877MCB41 formats.
A. Custom options including stainless steel hardware, oil-resistant rubber, and high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
