Product Number: 5020MM28-70

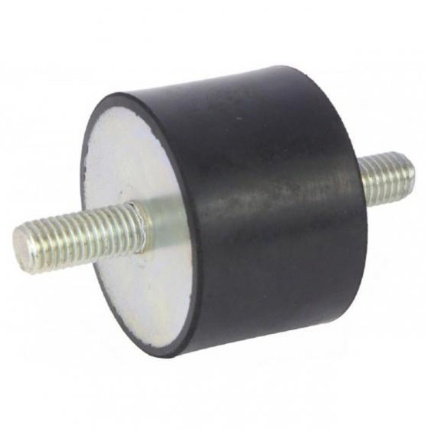

Where heavier loads and shock duty demand a mount that holds firm, the 50x20mm male-male bobbin mount in 70 Shore A rubber is engineered to deliver. SKU 5020MM28-70 is a rubber-to-metal bonded anti-vibration mount rated to a maximum load of 219.0 kg with a controlled deflection of just 1.5 mm, making it the firmest grade in this geometry and the right choice when movement must be minimised and structural integrity under load is the priority. The mount carries dual M10 threaded studs with a 28 mm stud length, allowing direct bolt-through installation without additional hardware in most configurations. Its rubber-to-metal bonded construction ensures the resilient element remains permanently secured between the metal inserts throughout service life. At 70 Shore A, the rubber compound is formulated to absorb shock and impact forces while resisting the deflection that softer grades permit, protecting both the mounted equipment and the surrounding structure from transmitted vibration. With a 50 mm diameter and 20 mm height, this mount is suited to applications that present significant mass or intermittent shock loading: diesel engine installations, generator set mountings, heavy industrial machinery and equipment, and exhaust system mountings where vibration and impulse forces are present. The mount may be loaded in shear, compression, or a combination of both, offering installation flexibility across differing chassis and frame configurations. Industries including power generation, construction and off-highway, agriculture, marine, and automotive regularly specify firm-grade bobbin mounts in demanding mounting positions.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 50 |
| Overall height H (mm) | 20 |
| Stud thread d | M10 |
| Stud length L (mm) | 28 |
| Max load (kg) | 219 |
| Deflection (mm) | 1.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M12, Max Load 217Kg - 7050MF37-60
£15.37
£15.07
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10075MF44-45 | 7050FF10-60 | 7050FF12-60 | 7060FF12-60 | 7050MF37-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 75mm | 50mm | 60mm | ||
| Height | 50mm | 50mm | |||
| Size | 100x75mm | 70x50mm | 70x50mm | 70x60mm | 70x50mm |
| Deflection | 6.7 | 4.4 | 4.4 | 5.4 | 4.4 |
| Diameter | 100mm | 70mm | 70mm | ||
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | ||
| Length Range | 51-100mm | 26-50mm | 51-100mm | ||
| Mount Dimension | 70mm | ||||
| Shore Hardness | 45 | 60 | 60 | ||
| Thread | M16 | M10 | M12 | M12 | M12 |
| Show More | |||||
A. This mount has a maximum load rating of 219.0 kg and a deflection of 1.5 mm, making it the firmest option in the 50x20mm M10 male-male geometry for applications requiring high load capacity with minimal movement.
A. The 5020MM28-70 uses M10 threads with a stud length of 28 mm on both male ends.
A. At 70 Shore A, the rubber compound is in the firm grade range. It carries higher loads with less deflection than softer grades, making it best suited to heavy machinery, diesel engines, generator sets, and other applications where shock and impact absorption are required alongside tight control of movement.
A. The mount measures 50 mm in diameter by 20 mm in height, with M10 x 28 mm threaded studs on both ends.
A. The mount may be loaded in shear, compression, or a combination of both, allowing flexible installation across different chassis, frame, and equipment configurations.
A. Typical applications include diesel engine installations, generator set mountings, exhaust mountings, air-conditioning units, and heavy industrial machinery and equipment. Industries served include power generation, construction and off-highway, agriculture, marine, automotive, railway and mass transit, and military and defence.
A. Yes. The same geometry is available in 45 Shore A (SKU 5020MM28-45) for greater deflection and isolation at lighter loads, and 60 Shore A (SKU 5020MM28-60) as a general-purpose mid-grade option.
A. Yes. Oil-resistant and high-temperature rubber compounds, as well as stainless steel metalwork and additional custom sizes, are available on request.
