Product Number: 100100MM44-45
Variations

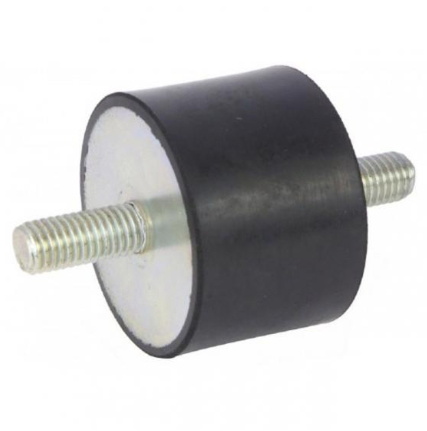

Absorbing vibration is the primary task of this 100 x 100 mm male-male bobbin mount, and at 45 Shore A it is the softest grade in the 100 x 100 mm family, engineered where maximum isolation takes precedence over restraint. With a maximum load rating of 165.0 kg and a deflection figure of 9.2 mm, this mount yields more under load than its harder siblings, translating mechanical energy into heat rather than transmitting it onward. Thread specification is M16 x 44 mm on both studs. The rubber-to-metal bonded construction is central to this mount's performance. The softer compound responds readily to lower-frequency excitation, making it well suited to applications where sensitive instruments, lightly loaded diesel engines, or generator sets must be decoupled from their supporting structures. Usable in shear, compression, or a combination of both, the mount adapts to varied installation geometries without requiring dedicated orientation. At this hardness grade the emphasis shifts firmly toward isolation: the greater deflection cushions lighter or vibration-sensitive equipment, improves operator comfort, and protects surrounding structures from transmitted shock. Typical applications drawn from the product family include air-conditioning units, exhaust mountings, industrial machinery and equipment. Industries served include power generation, marine, agriculture, and construction and off-highway sectors. Weight capacities across the full bobbin family span approximately 1 kg to 2,000 kg per mounting, and custom sizes together with stainless steel fittings and oil-resistant or high-temperature rubbers are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 100 |
| Overall height H (mm) | 100 |
| Stud thread d | M16 |
| Stud length L (mm) | 44 |
| Max load (kg) | 165 |
| Deflection (mm) | 9.2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M10, Max Load 164Kg - 5020MF28-60
£13.49
£13.23
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 5020MF28-60 | 6045MM25-60 | 6045MM37-60 | 6550MF37-60 | 100100MF44-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 45mm | 45mm | 50mm | 100mm | |
| Height | 20mm | ||||
| Size | 50x20mm | 60x45mm | 60x45mm | 65x50mm | 100x100mm |
| Deflection | 1.5 | 4 | 4 | 4.5 | 9.2 |
| Diameter | 60mm | 60mm | 65mm | 100mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | |
| Mount Dimension | 50mm | ||||
| Shore Hardness | 60 | 60 | 60 | 45 | |
| Thread | M10 | M10 | M12 | M12 | M16 |
| Show More | |||||
A. This male-male bobbin mount has an outer diameter and height of 100 x 100 mm, an M16 x 44 mm thread on both studs, a maximum load rating of 165.0 kg, and a deflection of 9.2 mm.
A. At 45 Shore A this is the softest grade in the 100 x 100 mm male-male range. Softer grades yield greater deflection under load and deliver better vibration isolation, making them the preferred choice for lighter or vibration-sensitive equipment and lower-frequency applications where isolation matters more than load restraint.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility across different mounting configurations and installation geometries.
A. The product family covers air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and industrial machinery and equipment. Industries served include power generation, marine, agriculture, construction and off-highway, automotive, railway and mass transit, and military and defence.
A. Yes — the 60 Shore A grade (100100MM44-60) and the 70 Shore A grade (100100MM44-70) are available for applications requiring higher load capacity with less deflection.
A. Yes — stainless steel fittings, oil-resistant rubbers, high-temperature rubbers, and additional or custom sizes are available on request.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
