Product Number: UU1482-50-50
Variations

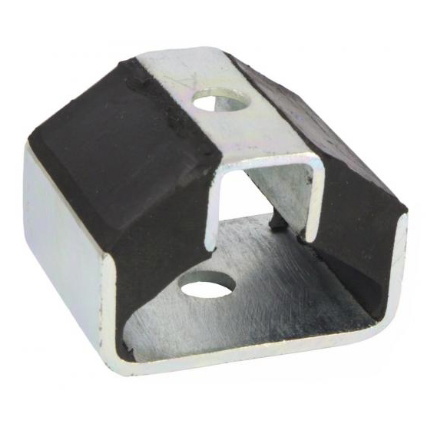

Pitched at the mainstream centre of the UU shear mounting range, UU1482-50-50 is a rubber-to-metal bonded shear mount rated to a maximum load of 50 kg with a deflection of 7.5 mm, figures that reflect a considered balance between resilient isolation and structural support. At 50 Shore A, this medium-hardness grade occupies the broad middle ground where neither excessive movement nor over-stiffness is acceptable, making it the natural choice for general-machinery mounting across moderate duty cycles. The mount is built with a rubber-to-metal bonded construction, providing consistent shear-loaded performance without mechanical fasteners between the rubber and metal elements. This construction approach reduces transmitted vibration, improves machinery lifespan, and protects surrounding structures from fatigue loading. The 50 Shore A rubber compound also contributes to operator comfort by attenuating vibration paths through frames and panels at load levels typical of everyday industrial equipment. Dimensionally, the mount measures 60 mm (A) × 50 mm (B) × 43 mm (C), with a 19 mm (D) feature, a 30 mm (E) measurement, 17 mm (F), and G & H dimensions of 10 mm each. These proportions suit medium-duty equipment across a broad spread of industries, including construction and off-highway machinery, agricultural equipment, power generation sets, marine installations, railway and mass transit vehicles, automotive applications, and military and defence platforms. Where standard materials are unsuitable, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

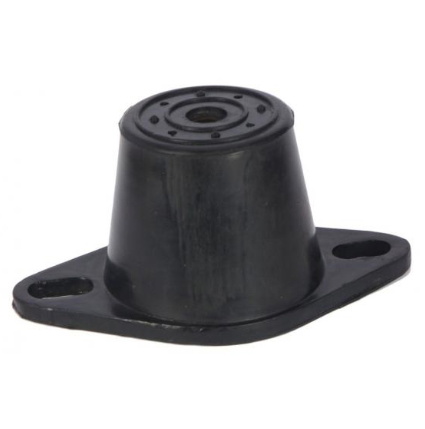

| PRODUCT NUMBER | TMC6535-65-65 | TMC6535-55-55 | TMC6535-45-45 | NIB1388*-70 | NIB1388*-60 | NIB1388*-45 |
| Thread Size | M10 | M10 | M10 | M10 | M10 | M10 |
| Mount Type | Turret Mountings | Turret Mountings | Turret Mountings | Interleaf Mountings | Interleaf Mountings | Interleaf Mountings |
| Size Band | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm | 51–75mm |
| Hardness Shore | 65 | 55 | 45 | 70 | 60 | 45 |
A. This mount is rated to a maximum load of 50 kg and provides a deflection of 7.5 mm under shear loading.
A. The mount measures as follows — A: 60 mm, B: 50 mm, C: 43 mm, D: 19 mm, E: 30 mm, F: 17 mm, G & H: 10 mm each.
A. The 50 Shore A medium hardness grade delivers a balance of vibration isolation and load-carrying support. Softer grades (e.g. 40 Shore A) give greater deflection and better isolation at lower loads; firmer grades (e.g. 60 or 70 Shore A) carry higher loads with less movement. The 50 Shore A grade suits the broad middle ground of general machinery mounting at moderate loads.
A. UU shear mounts are used across construction and off-highway equipment, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications, as well as for instruments, electronics, and light equipment requiring vibration isolation.
A. UU1482-50-50 uses rubber-to-metal bonded construction, which provides consistent shear performance, reduces transmitted vibration, improves machinery lifespan, and protects surrounding structures from fatigue. The mount may be loaded in shear, compression, or a combination of both.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Alternative grades and geometries include UU100-40, UU100-60, and UU100-70; UU1479-40, UU1479-50, and UU1479-60; and UU1480-40 and UU1480-50. Softer grades offer greater deflection for lighter-duty or sensitive equipment; firmer grades suit higher loads or shock-restraint duties.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
