Product Number: PL1802-60-60
Carrying a maximum load of 23 kg with a controlled deflection of just 3 mm at peak load, the PL1802-60-60 is a 57.2 mm pedestal mount hardened to 60 Shore A, a medium grade positioned in the upper reach of the range where supporting heavier machinery and absorbing repetitive shock takes precedence. At this hardness, the rubber delivers the broad middle ground between compliant isolation and firm load resistance, making it the reliable workhorse choice across a wide spread of industrial applications. Constructed with rubber-to-metal bonding throughout, the mount handles loads applied in shear, compression, or a combination of both. The 57.2 mm outer diameter (dimension A), 44.5 mm height (B), 50.8 mm base plate (C), and pedestal geometry are engineered to absorb and dissipate impact energy rather than transmit it, protecting connected structures and improving operational comfort for nearby personnel. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. The 60 Shore A grade suits the broad middle ground of machinery mounting duty: construction and off-highway equipment subject to repetitive jarring, industrial machinery where moderate shock loads are combined with sustained vibration, commercial vehicles, power generation plant, and agricultural equipment operating across uneven terrain. Its restrained 3 mm deflection at full rated load ensures positional stability of mounted assemblies while still absorbing impact pulses that softer grades would allow to pass through. This mount is one of several geometries and hardness grades available in the pedestal and plate mounting family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

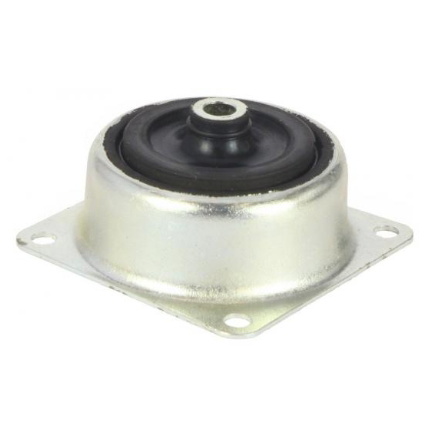

| PRODUCT NUMBER | PL1802-45-45 | PL1802-70-70 | AM47-45 | PL1801-45-45 | PL1801-60-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 57.2mm | 57.2mm | 47mm | 44.5mm | 44.5mm |
| Size Range | 51-100mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm |
| Thread | M8 | ||||
A. The PL1802-60-60 is rated to a maximum load of 23 kg, with a deflection of 3 mm at that maximum load. This limited deflection at full rated load reflects the firm support characteristic of the 60 Shore A medium grade.
A. At 60 Shore A, this mount sits in the medium hardness band. It delivers a balance between vibration isolation and load-bearing capacity — carrying higher loads with less movement than softer grades, whilst retaining sufficient compliance to absorb and dissipate impact energy from repetitive shock loading.
A. This mount is suited to construction and off-highway equipment, industrial machinery, agricultural equipment, commercial vehicles, and power generation plant. It is appropriate wherever moderate to heavy shock loads are combined with sustained vibration and positional stability of the mounted assembly is required.
A. The principal dimensions are: outer diameter (A) 57.2 mm, height (B) 44.5 mm, base plate (C) 50.8 mm, D 9.9 mm, E 5.0 mm, F 13.5 mm, G 1.5 mm, and H 25.4 mm.
A. The PL1802-60-60 uses rubber-to-metal bonded construction and works by absorbing and dissipating energy transmitted through the mount. It can be loaded in shear, compression, or a combination of both, cushioning machinery against impact shocks and reducing force transmitted to surrounding structures.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes. Contact us to discuss your specific requirements.
A. Related pedestal mounts in the family include PE1803, PE1804, and PE1805. Flat-plate variants include PL1800-45, PL1800-60, PL1801-45, PL1801-60, and PL1801-70. The compatible no-pedestal rubber element for this series is PE1805-45.
