Product Number: PL1800-45-45
Variations

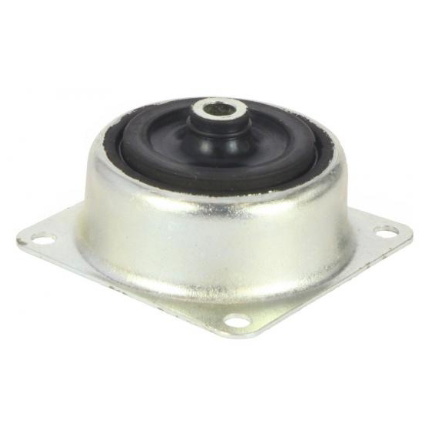

With a rated maximum load of just 0.91 kg with a deflection of 1.6 mm at that load, the PL1800-45-45 is the soft-grade pedestal mount in the 31.75 mm plate-and-pedestal family, engineered specifically for lighter, compact or sensitive installations where maximising vibration isolation matters more than restraint. At 45 Shore A, the rubber compound yields greater deflection under load and delivers superior energy absorption at lower frequencies, making this the appropriate choice where the priority is protecting delicate equipment or operators from transmitted vibration rather than bearing heavier loads. The rubber-to-metal bonded construction works by absorbing and dissipating energy, cushioning against impact shocks from external moving components and reducing the force transmitted between machinery and its supporting structure. The soft durometer is particularly well suited to applications in construction equipment, agricultural machinery, industrial plant, commercial vehicles and elevators where lower operating loads combine with a need for effective vibration attenuation. This grade also finds application in marine, power generation, railway and mass transit, automotive, and military and defence environments where isolation of sensitive equipment or improvement of operator comfort is the governing design requirement. Key dimensions are: A 31.75 mm, B 25.4 mm, C 25.4 mm, D 4.20 mm, E 3.60 mm, F 6.70 mm, G 0.80 mm, H 10.3 mm. The corresponding no-pedestal rubber element is PE1803-45. Custom stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for specialist environments. This mount is part of a comprehensive anti-vibration range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Pedestal Mount - Anti-Vibration, Overall Height 28.6mm, Max Load 8.2Kg - PE1804-70
£37.75
£37.01
2% OFF
|
Pedestal Mount - Anti-Vibration, Overall Height 39.7mm, Max Load 40Kg - PE1805-70
£54.37
£53.30
2% OFF
|
Pedestal Mount - Anti-Vibration, Overall Height 19.8mm, Max Load 1.8Kg - PE1803-60
£37.08
£36.35
2% OFF
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PL1800-60-60 | PE1804-70 | PE1805-70 | PE1803-60 | PL1801-45-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 31.75mm | 28.6mm | 39.7mm | 19.8mm | 44.5mm |
| Deflection | 2.5 | 3 | 1.6 | ||
| Overall Height | 28.6mm | 39.7mm | 19.8mm | ||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 11-25mm | 26-50mm |
A. The PL1800-45-45 is rated to a maximum load of 0.91 kg, with a deflection of 1.6 mm at that maximum load. As a 45 Shore A soft-grade mount, it is designed for lighter installations where high deflection and maximum vibration isolation are the priority.
A. The principal dimensions are: A 31.75 mm, B 25.4 mm, C 25.4 mm, D 4.20 mm, E 3.60 mm, F 6.70 mm, G 0.80 mm, and H 10.3 mm.
A. This soft-grade pedestal mount is suited to construction equipment, agricultural machinery, industrial plant, commercial vehicles, elevators, marine applications, power generation, railway and mass transit, automotive, and military and defence environments — particularly where loads are light and vibration isolation or operator comfort is the primary requirement.
A. A softer rubber grade gives greater deflection under load and better vibration isolation at lower frequencies. The 45 Shore A grade is the appropriate choice for lighter, compact or sensitive equipment where the goal is to absorb and dissipate vibration energy rather than to bear higher loads or restrain movement.
A. The mount uses rubber-to-metal bonded construction and works by absorbing and dissipating energy. It cushions machinery against impact shocks from external moving components, reducing the force transmitted to surrounding structures and improving machinery lifespan and operator comfort.
A. The corresponding no-pedestal rubber element for this mount is PE1803-45.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Related variants include PE1803, PE1804, PE1805 (no-pedestal elements) and pedestal mounts PL1800-60, PL1801-45, PL1801-60, PL1801-70, and PL1802-45, covering a range of sizes and hardness grades.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
