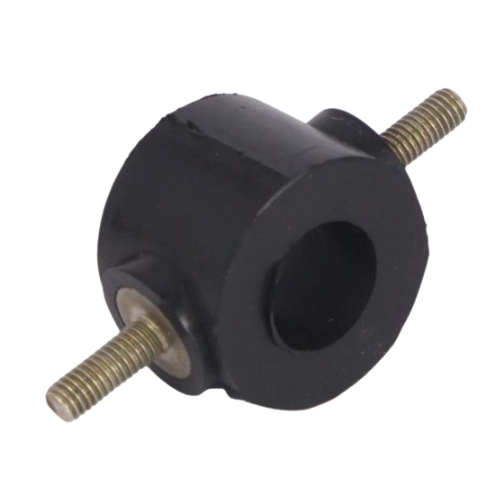

Product Number: LF1396-45
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

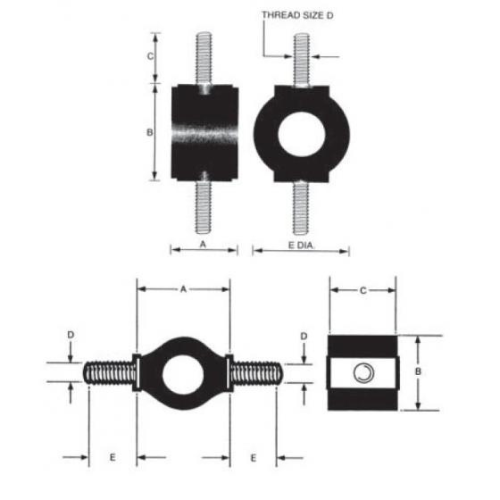

| Rubber Body Length (A) | 25.5mm |
|---|---|
| Rubber Body Dimesnion (B) | 38.2mm |
| Bolt Projection Length (C) | 16mm |
| Thread Size (D) | M6 |
| Overall Bolt Length (E) | 34.8mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The LF1396 has an overall diameter (A) of 38.5 mm, B of 35 mm, C of 25 mm, thread size D of M6 (with an M10 option available on request), and E of 16 mm.
A. The standard thread is M6. An M10 thread option is also available on request.
A. The LF1396 uses rubber-to-metal bonded construction, combining rubber damping compliance with bonded metal inserts for structural integrity.
A. The LF1396 may be loaded in shear, compression, or a combination of both, offering installation flexibility to suit the isolation requirements of the application.
A. It is designed for vibration isolation of instruments, electronics, and light equipment. Industries served include marine, railway and mass transit, power generation, agriculture, construction and off-highway, automotive, and military and defence.
A. The mount helps extend machinery service life, reduces vibration transmitted to surrounding structures, and improves operator comfort by attenuating vibration at source.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Yes. Smaller variants are available as LF0912, LF1394, and LF1395. The LF1396 at 38.5 mm is the largest mount in the range.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
