Product Number: LF1395-45
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

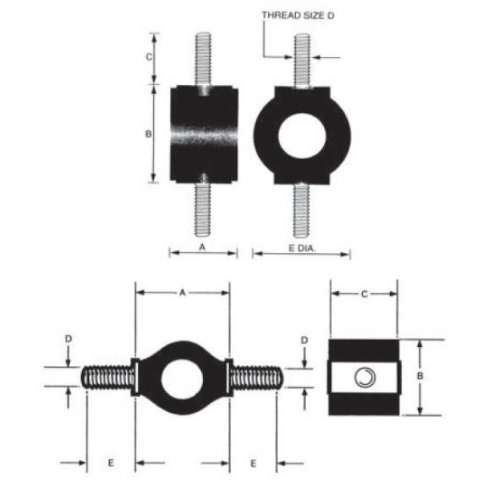

| Rubber Body Length (A) | 19.3mm |
|---|---|
| Rubber Body Dimesnion (B) | 29.6mm |
| Bolt Projection Length (C) | 16mm |
| Thread Size (D) | M5 |
| Overall Bolt Length (E) | 25.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The LF1395 has the following dimensions: A (outer diameter) 30 mm, B (height) 25 mm, C 19 mm, thread D M5, and E 10 mm.
A. The mount can be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an installation to achieve the required isolation direction.
A. It is designed for vibration isolation of instruments, electronics, and light equipment. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The mount uses rubber-to-metal bonded construction, which secures the elastomer between metal components to maintain integrity under load and provide consistent vibration damping performance.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes beyond the standard range.
A. Yes. Related variants include LF0912, LF1394, and LF1396. Each differs in dimensions, load range, and thread specification, so selection should be based on the load, deflection, and thread requirements of the application.
