Product Number: LF0912-55
Variations
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

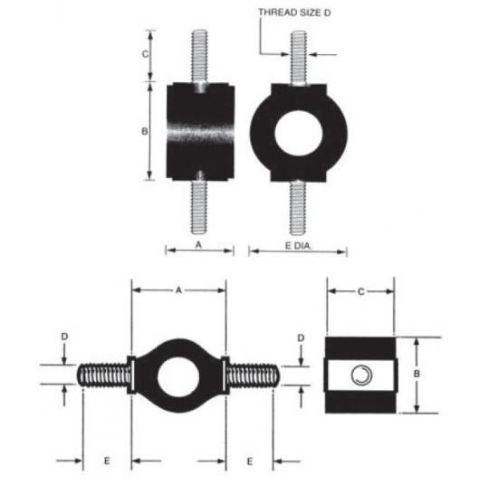

| Rubber Body Length (A) | 12.5mm |
|---|---|
| Rubber Body Dimesnion (B) | 9.5mm |
| Bolt Projection Length (C) | 9.4mm |
| Thread Size (D) | M4 |
| Overall Bolt Length (E) | 10mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The LF0912 uses rubber-to-metal bonded construction, integrating the rubber element and metal hardware into a single assembly for reliable, long-service vibration isolation.
A. The mount may be loaded in shear, compression, or a combination of both, allowing it to be oriented to match the dynamic requirements of the installation.
A. The principal dimensions are: A 12.5 mm, B 9.5 mm, C 9.4 mm, thread D M4, E 10.
A. It is designed for instruments, electronics, and light equipment requiring vibration isolation under low-load conditions. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. By isolating and attenuating vibration, the mount works to improve machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes — the low frequency mounting range includes LF1394, LF1395, and LF1396, which offer alternative configurations and load capacities.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
