Product Number: GM24
Variations
Carrying the widest load range in the GM series, GM24 is a 16.5 mm diameter rubber-to-metal bonded instrument mount with an M8 stud thread, engineered to provide vibration isolation for sensitive electronics, instruments, and light equipment where higher loads within this class must still be absorbed without transmitted shock reaching the protected item. Its compact form factor, 16.5 mm body diameter, 24 mm base diameter, 22 mm length, and 5 mm height. Places it at the top of the family's load band, making it the appropriate selection when other members of the range fall short on load-carrying capacity. The rubber-to-metal bonded construction bonds the elastomeric element directly to its metal inserts, ensuring the assembly resists pull-out under the combination of shear, compression, and mixed-mode loading that instrument and light-equipment mountings typically encounter. The softer elastomer grades available in this family deliver greater deflection and superior isolation efficiency at the lower end of the rated load; harder grades reduce movement and carry higher loads, giving specifiers a consistent mounting footprint with tunable stiffness characteristics. Custom stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for demanding environments. GM24 serves a broad spread of industries: construction and off-highway plant, agricultural machinery, power generation sets, marine installations, railway and mass transit vehicles, automotive applications, and military and defence equipment.
The Grommet mountings are a low-cost anti-vibration fastening method, suitable for use in all types of applications. Simple to install and effective at isolating high-frequency vibration, Grommet mountings are an ideal solution.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

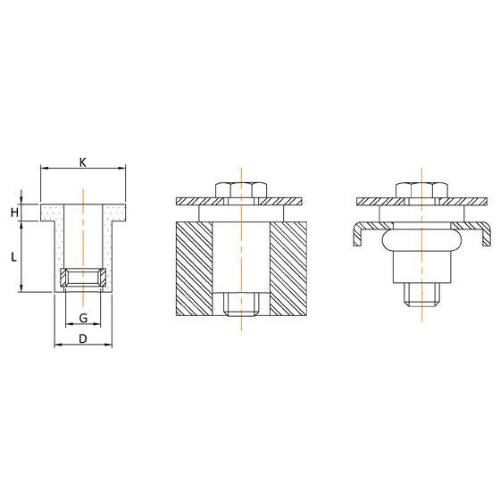

| Base Dimension (D) | 16.5mm |
|---|---|
| Flange Dimension (K) | 24mm |
| Total Height (L) | 22mm |
| Flange Thickness (H) | 5mm |
| Thread Size (G) | M8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | HNG-lower | HNG-upper |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 96mm | 96mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M8 | M8 | M8 | M8 | M8 |
A. GM24 has a body diameter (D) of 16.5 mm, a base diameter (K) of 24 mm, a length (L) of 22 mm, a height (H) of 5 mm, and an M8 stud thread (G).
A. GM24 is designed for vibration isolation of instruments, electronics, and light equipment. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation to suit the application.
A. GM24 uses rubber-to-metal bonded construction, which bonds the elastomeric element directly to its metal inserts for a secure, pull-out-resistant assembly.
A. GM24 is the largest mount in the GM series by base diameter and represents the top of the family's load band. Smaller variants are available as GM09, GM12, GM15, and GM18, all sharing the same M8 thread form.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
