Product Number: GM18
Carrying load at the upper end of the GM instrument and general mounting range, the GM18 is a 12.7 mm diameter rubber-to-metal bonded mount with M6 fixing, designed to provide vibration isolation for instruments, electronics and light equipment operating at higher load demands within this lightweight family. At 17 mm in height and 18 mm across the base flange, the GM18 suits installations where a compact footprint is required alongside meaningful load-carrying capability. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression or a combination of both, giving engineers flexibility when addressing vibration paths in equipment where isolation must be maintained without compromising structural stability. Softer grades within this family offer greater deflection and prioritise isolation at lower loads; the GM18 is positioned in the upper band of the range, carrying higher load with correspondingly reduced movement, making it appropriate where the equipment mass or operating forces demand more from a mount of this diameter. Applications span a wide cross-section of industries: construction and off-highway machinery, agricultural equipment, power generation sets, marine installations, railway and mass transit vehicles, automotive assemblies, and military and defence platforms, anywhere that instruments or sensitive electronics require reliable isolation from structure-borne vibration. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. This mount is one of five variants in the GM instrument and general series.
The Grommet mountings are a low-cost anti-vibration fastening method, suitable for use in all types of applications. Simple to install and effective at isolating high-frequency vibration, Grommet mountings are an ideal solution.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

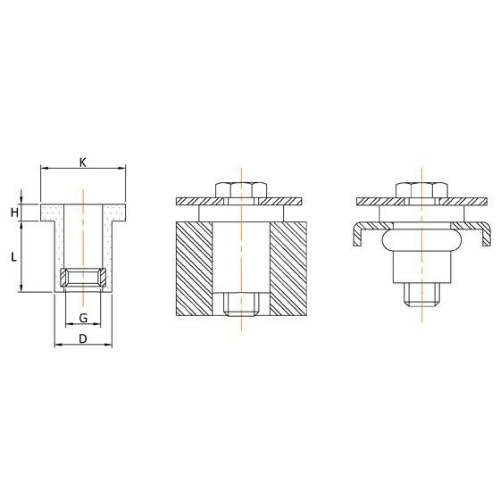

| Base Dimension (D) | 12.7mm |
|---|---|
| Flange Dimension (K) | 18mm |
| Total Height (L) | 17mm |
| Flange Thickness (H) | 4mm |
| Thread Size (G) | M6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | HNG-lower | HNG-upper |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 96mm | 96mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M8 | M8 | M8 | M8 | M8 |
A. The GM18 has an outer diameter (D) of 12.7 mm, a base flange dimension (K) of 18 mm, an overall height (L) of 17 mm, a rubber height (H) of 4 mm, and an M6 thread fixing (G).
A. It is designed to provide vibration isolation for instruments, electronics and light equipment, protecting sensitive items from structure-borne vibration and improving the lifespan of surrounding machinery and structures.
A. The GM family is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. The rubber-to-metal bonded construction allows this mount to be loaded in shear, compression, or a combination of both, depending on the installation and the direction of vibration forces.
A. The GM18 occupies the upper load band of the 12.7 mm GM series. Smaller and lower-load options include the GM09, GM12 and GM15, while the GM24 provides a larger diameter variant for greater capacity.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
