Product Number: CTM1063816-45

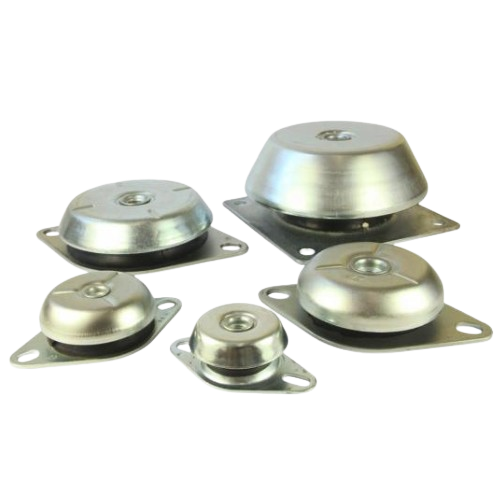

The CTM1063816-45 is the 45 Shore grade of the 106 x 38 mm captive range on an M16 stud, rated to 250 kg per mount. It is the entry grade for equipment specified with M16 studs that also needs restraint in transit. It is the entry grade for equipment specified with M16 studs — generating sets, diesel and marine engines, pumps, fans and compressors that also need restraint in transit.
The rubber runs in shear compression for up to 95% vibration reduction in all axes, capped in metal to keep oil and fuel off the element. The integral overload stop controls equipment movement during transport, and the captive construction is failsafe under shock loads. Fixing is through 12.5 x 19 mm slots at 138-146 mm centres beneath the 106 mm flange (38 mm high); inner dimension 80 mm, free length 171 mm, base 4 mm.
Alternative grades on this body: CTM1063816-60 (350 kg), CTM1063816-70 (525 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 38mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 250
|
|
| Deflection (mm) | 4mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1063812-45 | CTM633510-6 | CTM633512-6 | CTM773010-60 | CTM773012-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 4mm | 3.5mm | 3.5mm | 3mm | 3mm |
| Thread | M12 | M10 | M12 | M10 | M12 |
A. Fit is by footprint and fixing - 106 mm flange, 12.5 x 19 mm slots at 138-146 mm centres, M16 stud, 171 mm free length. Compare with your machine base or old mounts, search PartsForMachines by the AV part number, or WhatsApp our team to check.
A. 250 kg per mount in the 45 Shore grade. Total equipment weight divided by the number of mounting points should stay within this rating.
A. Only the fixing stud thread - the CTM1063812-45 carries M12, this mount M16. Body dimensions, footprint and the 250 kg rating are identical, so choose by the thread your equipment requires.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1063816-60 (350 kg), CTM1063816-70 (525 kg). Work out the load per mounting point and pick the grade that covers it.
