Product Number: CTM773012-45
Variations
The CTM773012-45 is the soft grade of the 77 x 30 mm captive transit mount, rated to 110 kg per point. It serves generating sets, diesel and marine engines, pumps, motors, fans and compressors that need restraint on the move.
The rubber works in shear compression for vibration reduction of up to 95% in all axes, and the metal top cap protects it from oil and fuel. The integral overload stop controls equipment movement during transit, with the captive construction failing safe under shock loads. Dimensions: 77 mm flange, 30 mm flange height, fixing 9mm at 108-110mm centres, 60 mm inner dimension, 135 mm free length, 3 mm base. AV Industrial Products manufactures and supplies anti-vibration mounts and rubber engineering components for industrial applications across the UK.
Alternative grades on this body: CTM773012-60 (275 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

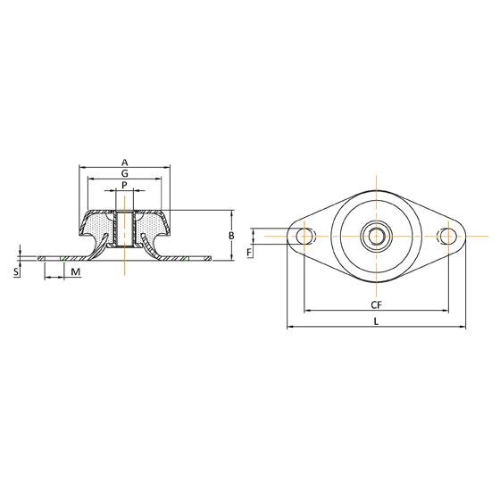

| Outer Dimensions (A) | 77mm |
|---|---|
| Flange Height (B) | 30mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 9mm |
| Center Distance (CF) | 108-110mm |
| Inner Dimensions (G) | 60mm |
| Free Length (L) | 135mm |
|
, Max Load 110
|
|
| Deflection (mm) | 3mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Captive Transit Mount Range, Thread Size M12, Max Load 100Kg, AV Industrial Products - CTM633512-3
£26.87
£26.34
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM773010-45 | CTM633510-3 | CTM633512-3 | CTM653512-60 | CTM633510-4 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm |
| Thread | M10 | M10 | M12 | M12 | M10 |
A. Fit is dimensional - 77 mm flange, fixing holes 9mm at 108-110mm centres, M12 stud, 135 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. 110 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM773012-60 (275 kg). Work out the load per mounting point and pick the grade that covers it.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
