| Voltage | 12V |
|---|---|
| Continuous Load | 70 Amps |
| Peak Load | 80 Amps |
| Operation Life | 100,000 Operations At 80A |
| Contact Material | Agsn02 |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 4 x 6.3mm |
| Type | 4 Pin Normally Open Contact High Load Mini Relay With Resistor Protection |
|---|---|
| Voltage | 24 |
| Continuous Load | 40A |
| Peak Load | 80A |
| Bracket Type | None |
 .png?v=1764052942)
| TYPE | 4 Pin normally open contact High Load Mini Relay |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 80A |
| PEAK LOAD | 160A |
| BRACKET TYPE | Optional Metal |
 .png?v=1764052942)
| TYPE | 4 Pin normally open contact Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | Optional Metal |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 20A |
| PEAK LOAD (CLOSED / SWITCHED) | 40A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 4 x 6.3mm |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 20A |
| PEAK LOAD (CLOSED / SWITCHED) | 40A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 4 x 6.3mm |
| TYPE | 4 Pin normally open contact Mini Relay with Resistor protection |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | None |
| Type | 4 Pin Normally Open Contact Mini Relay With Diode Protection. |
|---|---|
| Voltage | 24V |
| Continuous Load | 20A |
| Peak Load | 40A |
| Bracket Type | None |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 2 x 10A |
| PEAK LOAD (CLOSED / SWITCHED) | 2 x 20A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 2 x 10A |
| PEAK LOAD (CLOSED / SWITCHED) | 2 x 20A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
 .png?v=1764052942)
| TYPE | 5 Pin normally open contact twin output Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 20A |
| PEAK LOAD | 2 x 40A |
| BRACKET TYPE | Optional Metal |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 2 x 10A |
| PEAK LOAD (CLOSED / SWITCHED) | 2 x 20A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 2 x 10A |
| PEAK LOAD (CLOSED / SWITCHED) | 2 x 20A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Type | 4 Pin Normally Open Contact Mini Relay. |
|---|---|
| Voltage | 24 |
| Continuous Load | 30A |
| Peak Load | 60A |
| Bracket Type | Optional Metal |
 .png?v=1764052942)
| TYPE | 4 Pin normally open contact Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | Optional Metal |
 .png?v=1764052942)

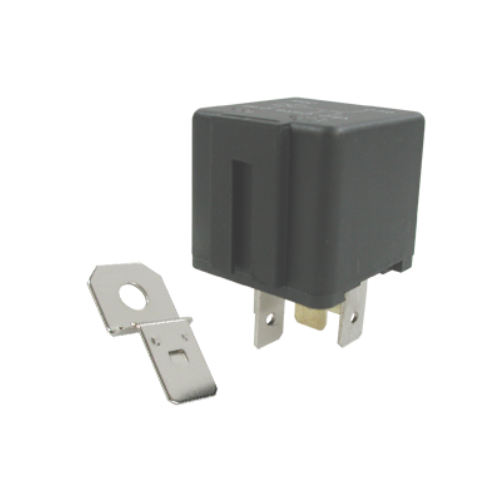

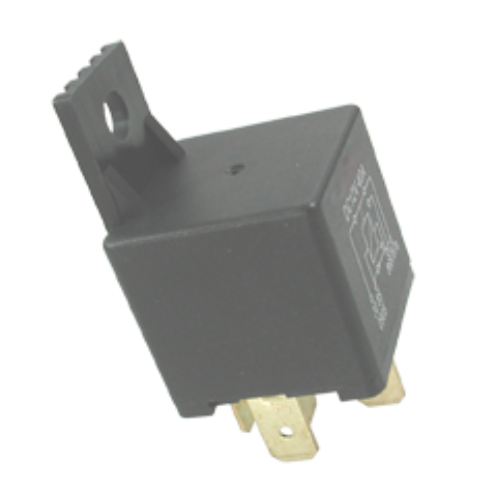

| TYPE | 5 Pin changeover Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| Voltage | 12V |
|---|---|
| Continuous (Open / Closed) | 40A / 30A |
| Peak (Open / Closed) | 80A / 60A |
| Operation Life | 100,000 Operations At 40A |
| Contact Material | Agsn02 |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
 .png?v=1764052942)

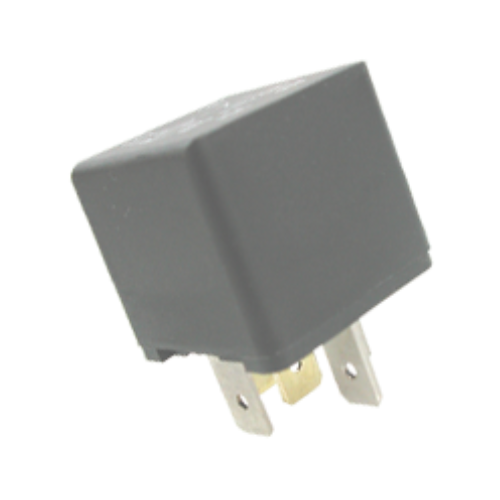

| TYPE | 4 Pin normally open contact High Load Mini Relay with resistor protection |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | Optional Metal |

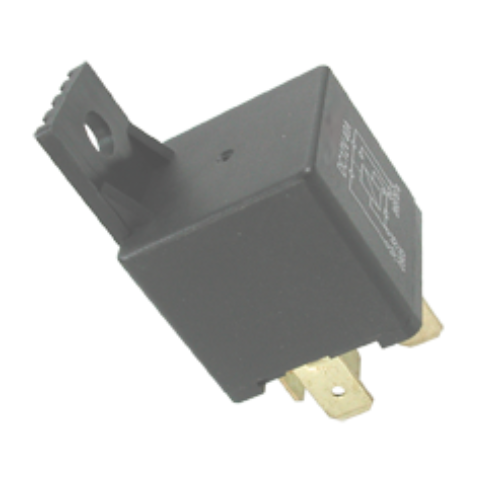

| TYPE | 5 Pin changeover Mini Relay with Diode protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
 .png?v=1764052942)
| TYPE | 5 Pin changeover Mini Relay with Resistor protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| VOLTAGE | 24 |
|---|---|
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| Voltage | 12V |
|---|---|
| Continuous (Open / Closed) | 40A / 30A |
| Peak (Open / Closed) | 80A / 60A |
| Operation Life | 100,000 Operations At 40A |
| Contact Material | Ag + Cu |
 .png?v=1764052942)
| TYPE | 4 Pin normally open contact Exact Fit replacement Relay with Resistor protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 30A |
| PEAK LOAD | 60A |
| BRACKET TYPE | None |
 .png?v=1764052942)
| TYPE | 5 Pin normally open contact twin output twin contact Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 25A |
| PEAK LOAD | 2 x 50A |
| BRACKET TYPE | Moulded Plastic |
 .png?v=1764052942)
| TYPE | 4 Pin normally open contact Mini Relay with 30A Blade Fuse. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 30A |
| PEAK LOAD | 60A |
| BRACKET TYPE | Optional Metal |
